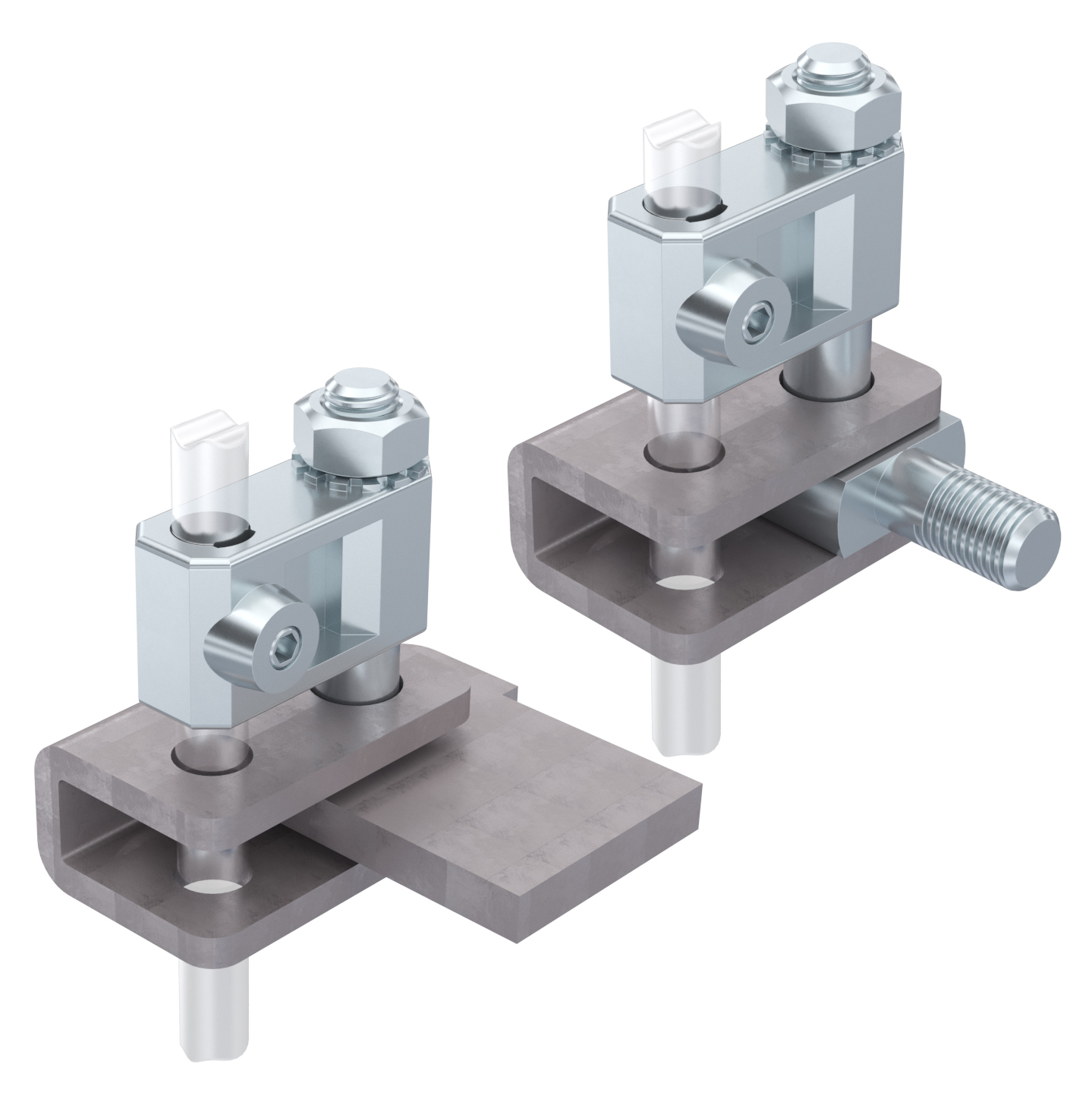

Pressure-Tight Fitting for 18mm Stroke RS

ICON_ROHS
ICON_RUNDSTANGE
1_450

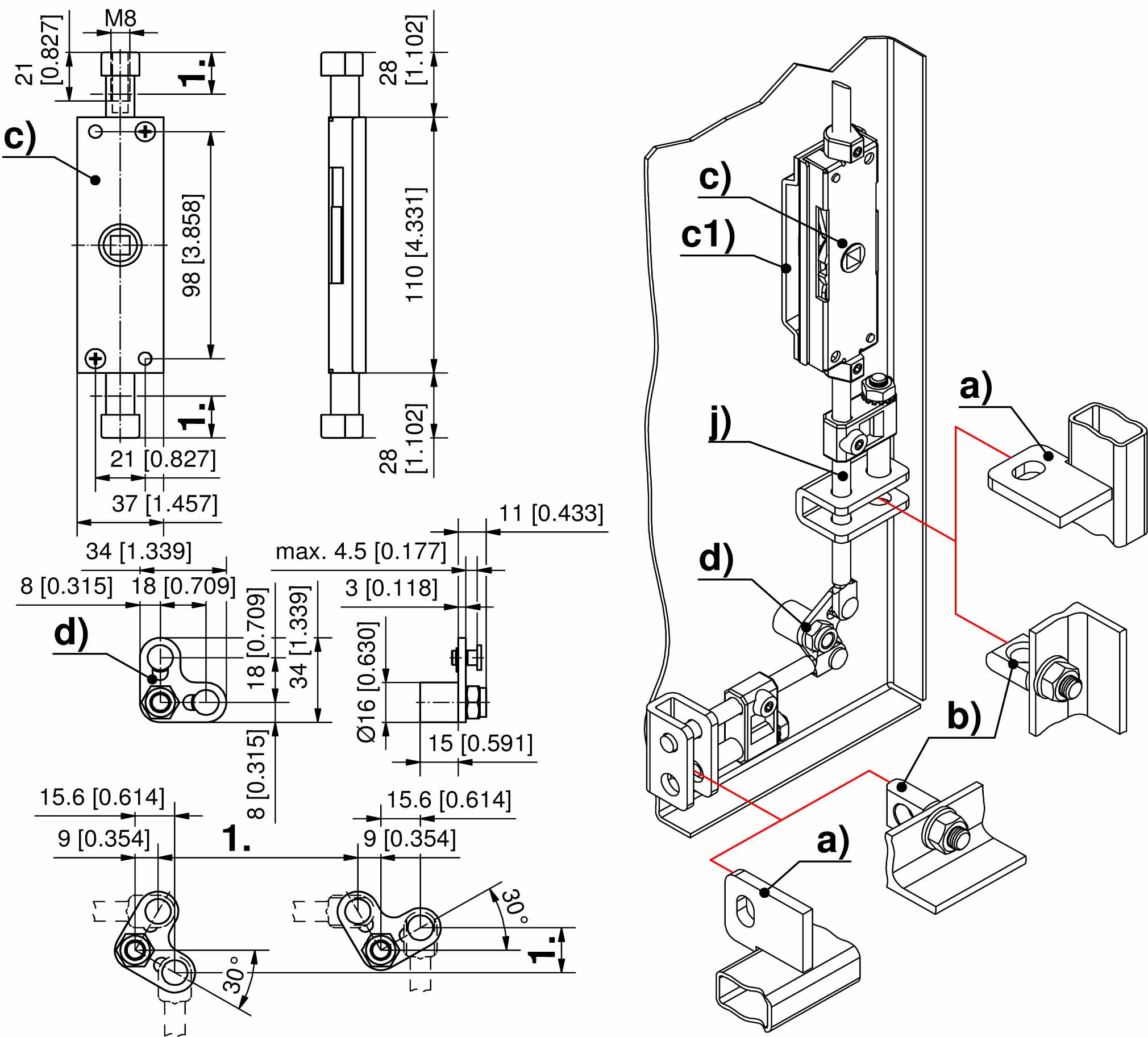

E_1-450_1

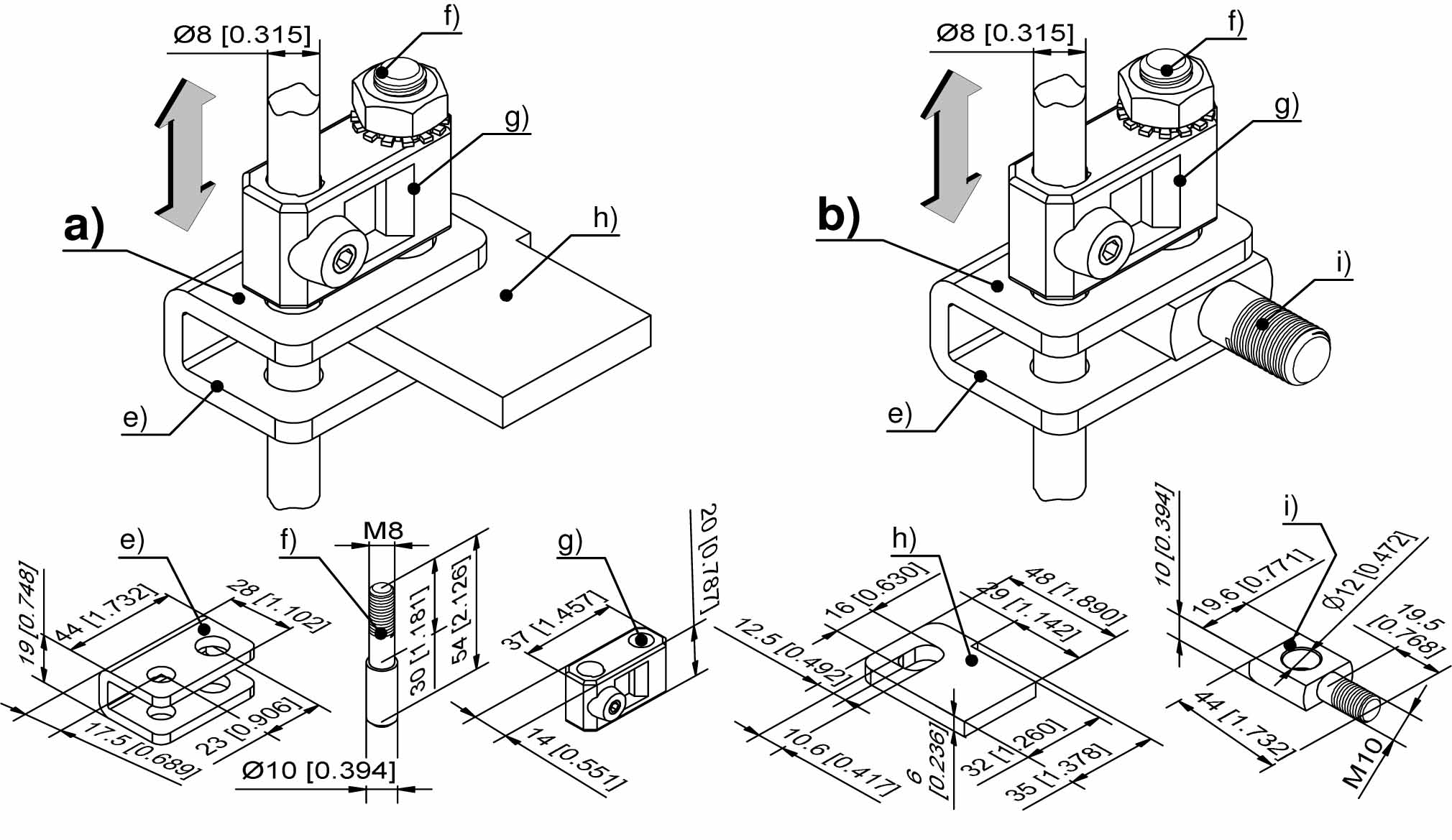

E_1-450_2
1_450
E_1-450_1
E_1-450_2

Advantages

  • Fitting for pressure-tight doors.
  • For high and medium voltage distribution boards.
  • Controlled by rod latch, 18mm stroke.
  • For insert, T- and L-handle and swinghandle.
  • Suitable for round rod Ø 8mm.
  • Redirect usable.

Material

  • Locking pin, fixing pieces, redirect, spacer, carrier, securing nut, c-clip, frame-part eye screw-on: steel, zinc plated
  • Connector: zinc die
  • Weld-on U-bracket, frame-part eye weld-on: steel, untreated

Remarks

1. stroke

Selected version

Product number 215-0501.00-00000
Delivery Unit: 1 pc.
Surface: zinc plated
Material: steel
Fastening type: screw-on
Name: Locking bolt
CAD model
Remove selection Product data sheet

Related Products

Specific accessories



Article no.
Name

c), a)
235-9013.00-00000
Rod Latch, RH version
Details
Version:
RH version
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
c), a)
235-9014.00-00000
Rod Latch, LH version
Details
Version:
LH version
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
c1)
235-1001.00-00000
Lock support A20
Details
Name:
Lock support A20
Delivery Unit:
1 pc.
Open product in new tab
j)
201-0801.00-01000
Round rod, M8 x 1000mm
Details
Name:
Round rod, M8 x 1000mm
Delivery Unit:
1 pc.
Open product in new tab

Accessories



Article no.
Name

1-430.01
Escutcheon and Inserts
Open overview in new tab
235-9203.00-00000
Escutcheon A 20, universal
Details
Name:
Escutcheon A 20, universal
Delivery Unit:
1 pc.
Open product in new tab
235-9204.00-00000
Escutcheon A 26, universal
Details
Name:
Escutcheon A 26, universal
Delivery Unit:
1 pc.
Open product in new tab
235-9201.00-00000
Escutcheon A 20 only for double bit
Details
Name:
Escutcheon A 20 only for double bit
Delivery Unit:
1 pc.
Open product in new tab
235-9202.00-00000
Escutcheon A 26, only for double bit
Details
Name:
Escutcheon A 26, only for double bit
Delivery Unit:
1 pc.
Open product in new tab
235-9101.00-00000
Insert Square 6mm
Details
Insert:
Square 6mm
Delivery Unit:
1 pc.
Open product in new tab
235-9102.00-00000
Insert square 7mm
Details
Insert:
Square 7mm
Delivery Unit:
1 pc.
Open product in new tab
235-9103.00-00000
Insert square 8mm
Details
Insert:
Square 8mm
Delivery Unit:
1 pc.
Open product in new tab
235-9104.00-00000
Insert triangular 6.5mm CNOMO
Details
Insert:
Triangular 6.5mm CNOMO
Delivery Unit:
1 pc.
Open product in new tab
235-9105.00-00000
Insert triangular 7mm
Details
Insert:
Triangular 7mm
Delivery Unit:
1 pc.
Open product in new tab
235-9106.00-00000
Insert triangular 8mm
Details
Insert:
Triangular 8mm
Delivery Unit:
1 pc.
Open product in new tab
235-9109.00-00000
Insert Daimler Benz pin
Details
Insert:
Daimler Benz type
Delivery Unit:
1 pc.
Open product in new tab
235-9107.00-00000
Insert double bit 3mm pin
Details
Insert:
Double bit 3mm pin
Delivery Unit:
1 pc.
Open product in new tab
235-9108.00-00000
Insert double bit 5mm pin
Details
Insert:
Double bit 5mm pin
Delivery Unit:
1 pc.
Open product in new tab

Product Configuration

Selected version

Product number 215-0501.00-00000
Delivery Unit: 1 pc.
Surface: zinc plated
Material: steel
Fastening type: screw-on
Name: Locking bolt
