[5-151FS]

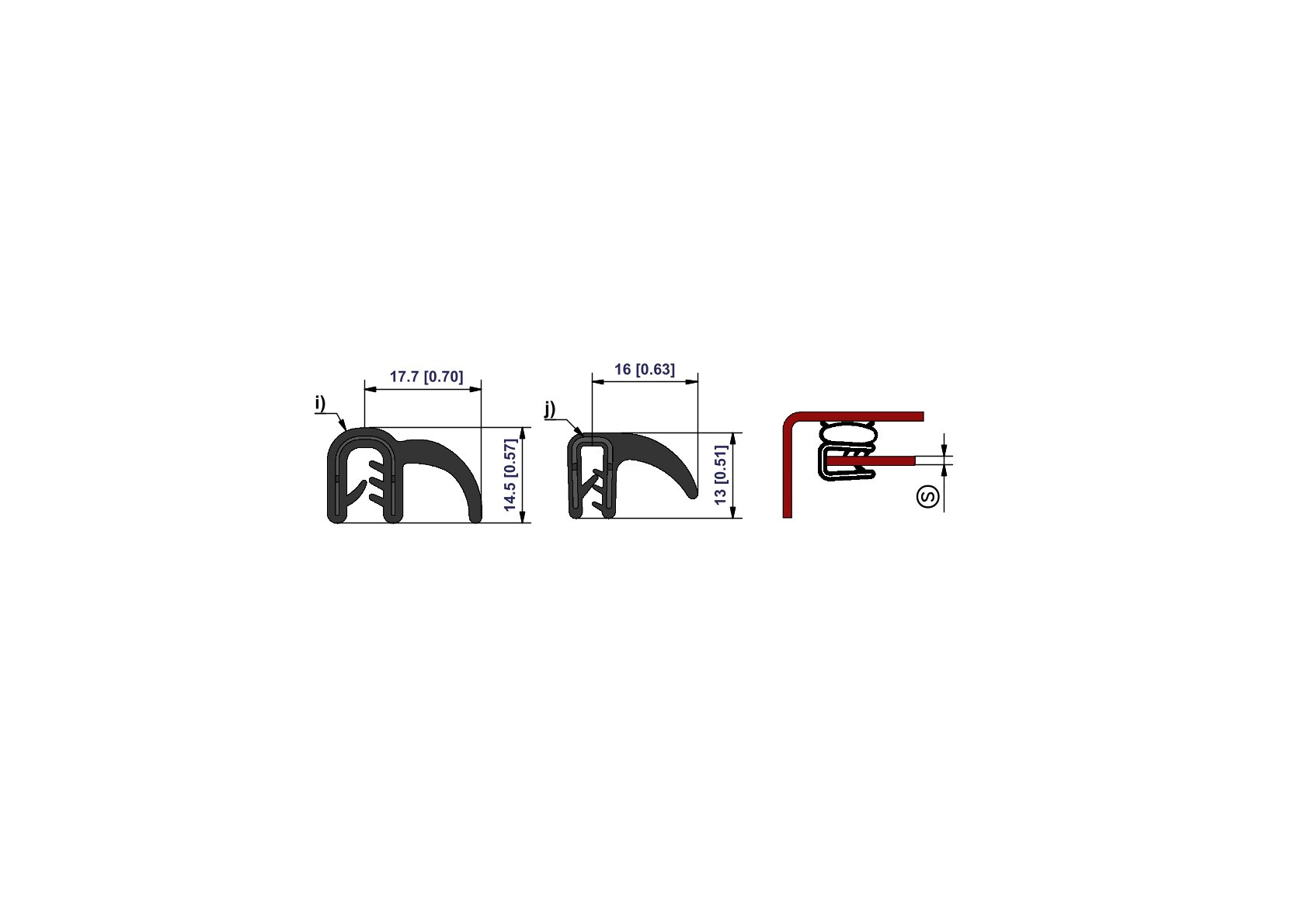

Fire Protection Clip-on Sealing Profiles EPDM acc. to DIN EN 45545-2

Advantages

These sealing part of these profiles is made of EPDM sponge rubber and the clamping area consists of soft rubber with a wire carrier.
In an extrusion process the two materials are bonded to each other through vulcanization.
The materials used in the EPDM profiles are tested according to DIN EN 45545-2 (R22/R23 HL2 or HL3).

Material

Clip-on profiles: EPDM, black
Carrier: Soft rubber (R22/R23 HL3)
Sealing part: Sponge rubber (R22/R23 HL2)

Remarks

Note Tolerances!

The materials used are certified in accordance with the currently valid fire protection standard DIN EN 45545-2 for rail vehicles.
Whether the categories achieved are suitable for the respective requirements or vehicle classes must be checked by the customer on a case-by-case basis.

The guideline values provided were determined on test panels and correspond to our current state of knowledge. However, they do not exempt the end user from conducting their own carful tests.
