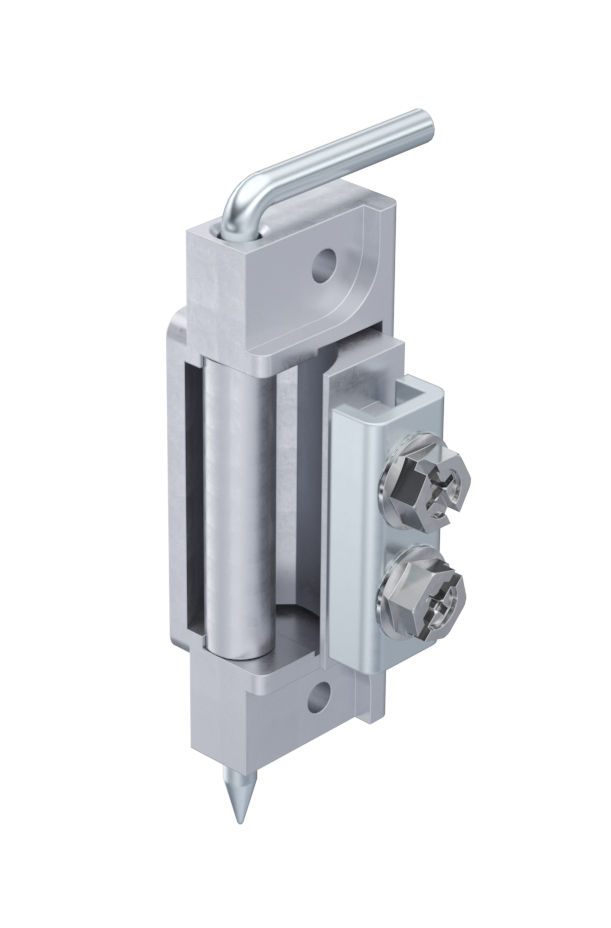

Concealed Hinge Pr02 120°

4_095
E_4-095
4_095
E_4-095

Advantages

  • For nested doors.
  • Hinge concealed.
  • RH / LH application.
  • 120° Opening angle.

Material

  • Frame-part and door-part: zinc die, zinc plated
  • Fastening clip and pin: steel, zinc plated

Remarks

Fitting hardware included.
(S) Door-thickness max. 2mm when using the supplied screws.

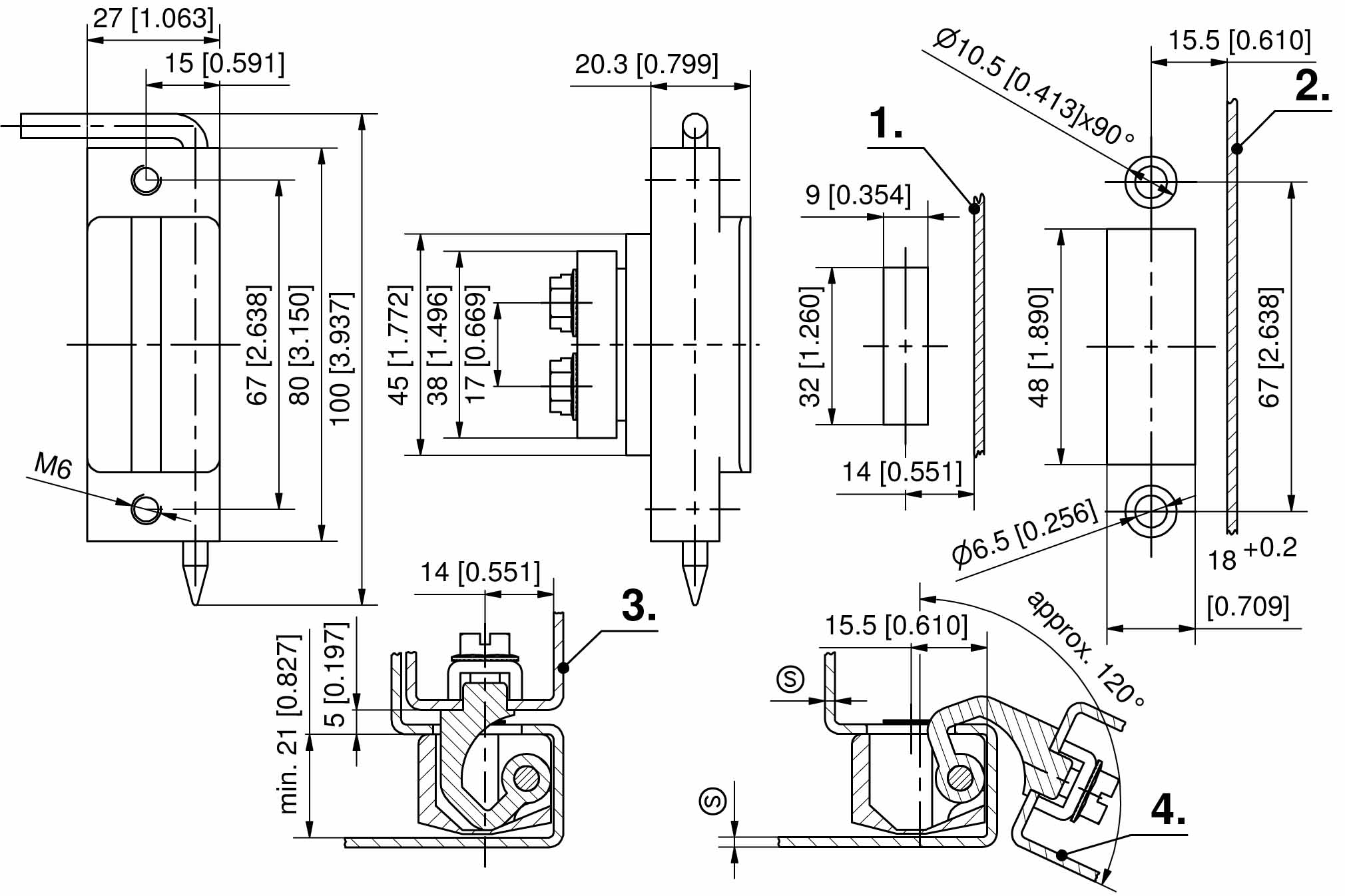

1. cutout door
2. cutout frame
3. closed
4. opened
Please select version Product data sheet

Available versions

Concealed hinge

Product number
Pin length L
Pin version
Installation type
Delivery Unit
222-9301.00-00000
100 mm
loose
screw-on
10 pcs.
