[4-125DST]

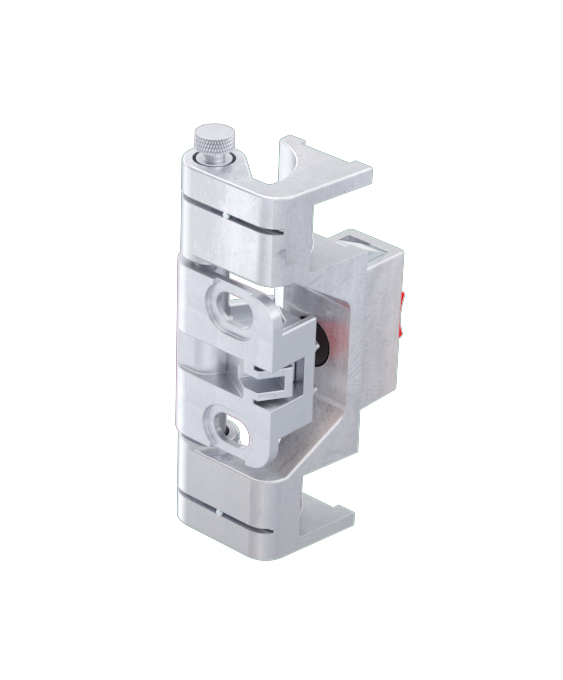

DST Concealed Hinge Pr03 130°
Available versions

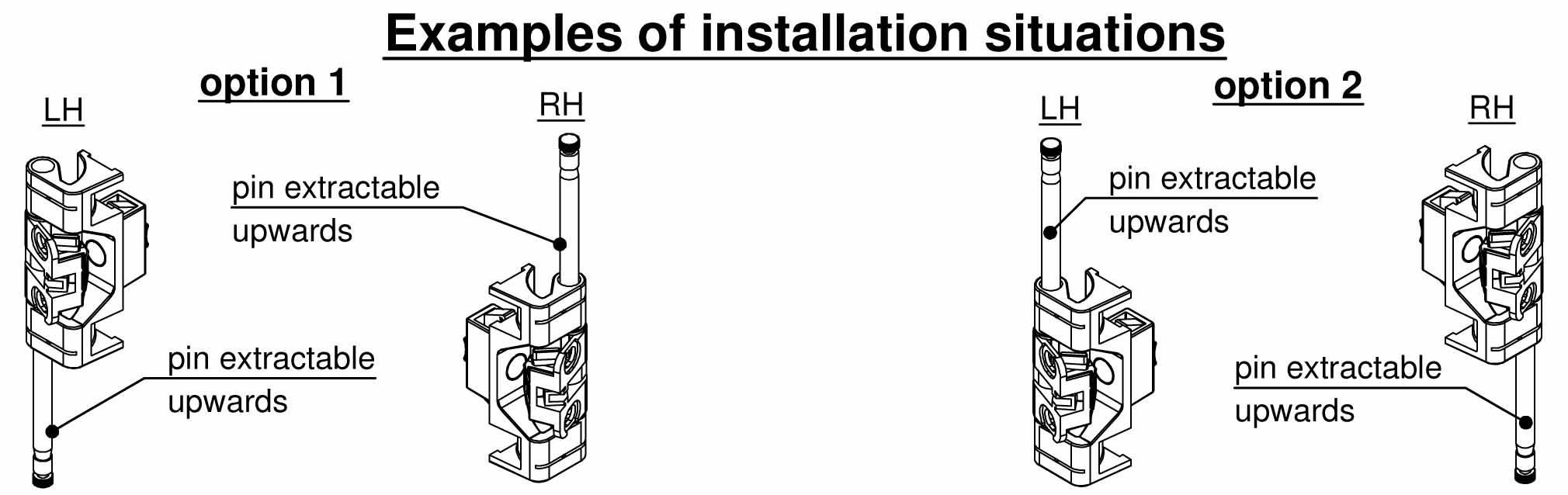

Hinge option 1: door LH, pin bottom, door RH, pin top
Product number
Clamping range (S)
Pin version

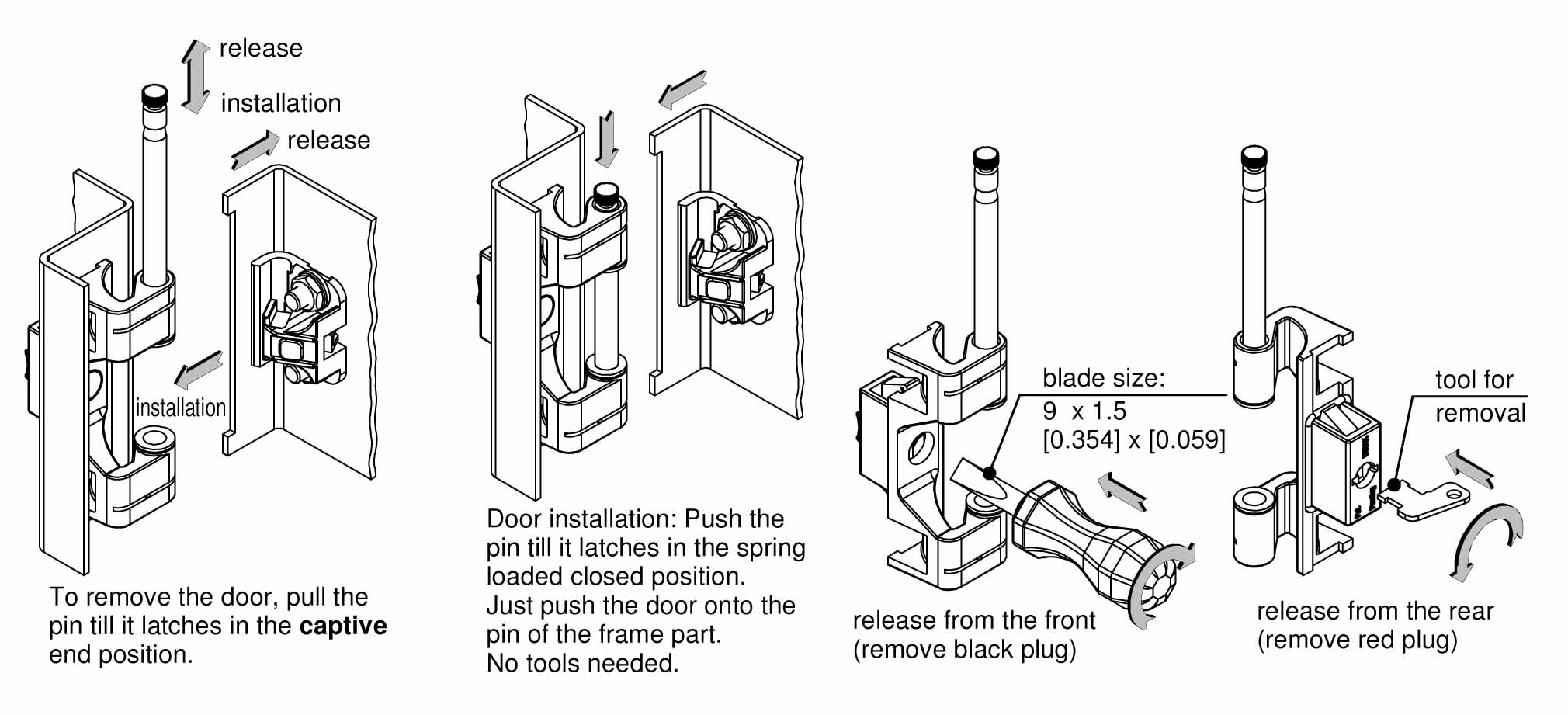

Installation type
Delivery Unit
443-9101.00-10015
1.2 - 1.7 mm
self-locking
tool-less / screw-on
10 pcs.
443-9101.00-10020
1.7 - 2.2 mm
self-locking
tool-less / screw-on
10 pcs.
443-9101.00-10025
2.2 - 2.7 mm
self-locking
tool-less / screw-on
10 pcs.
443-9101.00-10030
2.7 - 3.2 mm
self-locking
tool-less / screw-on
10 pcs.
443-9101.00-10033
3.0 - 3.5 mm
self-locking
tool-less / screw-on
10 pcs.
Hinge option 2: door LH, pin top, door RH, pin bottom
Product number
Clamping range (S)
Pin version
Installation type
Delivery Unit
443-9101.00-20015
1.2 - 1.7 mm
self-locking
tool-less / screw-on
10 pcs.
443-9101.00-20020
1.7 - 2.2 mm
self-locking
tool-less / screw-on
10 pcs.
443-9101.00-20025
2.2 - 2.7 mm
self-locking
tool-less / screw-on
10 pcs.
443-9101.00-20030
2.7 - 3.2 mm
self-locking
tool-less / screw-on
10 pcs.
443-9101.00-20033
3.0 - 3.5 mm
self-locking
tool-less / screw-on
10 pcs.
