[4-130]

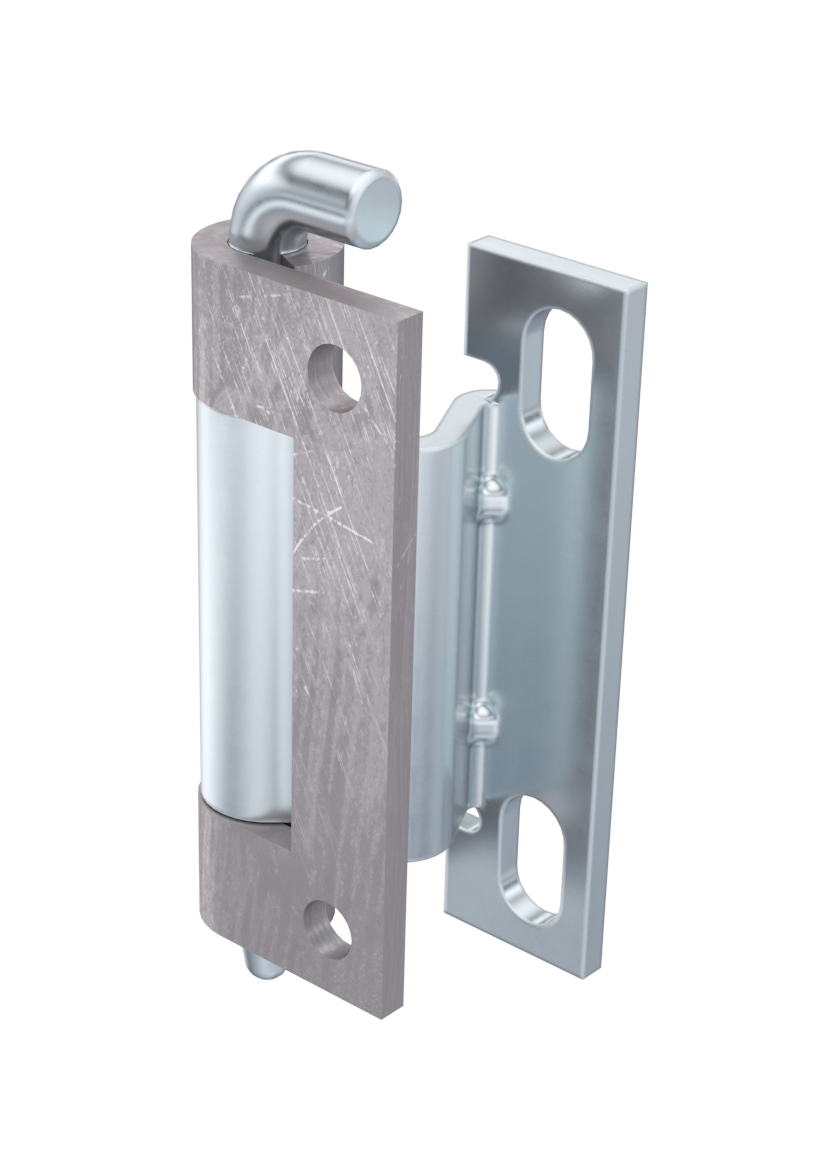

Concealed Hinge Pr03 120°

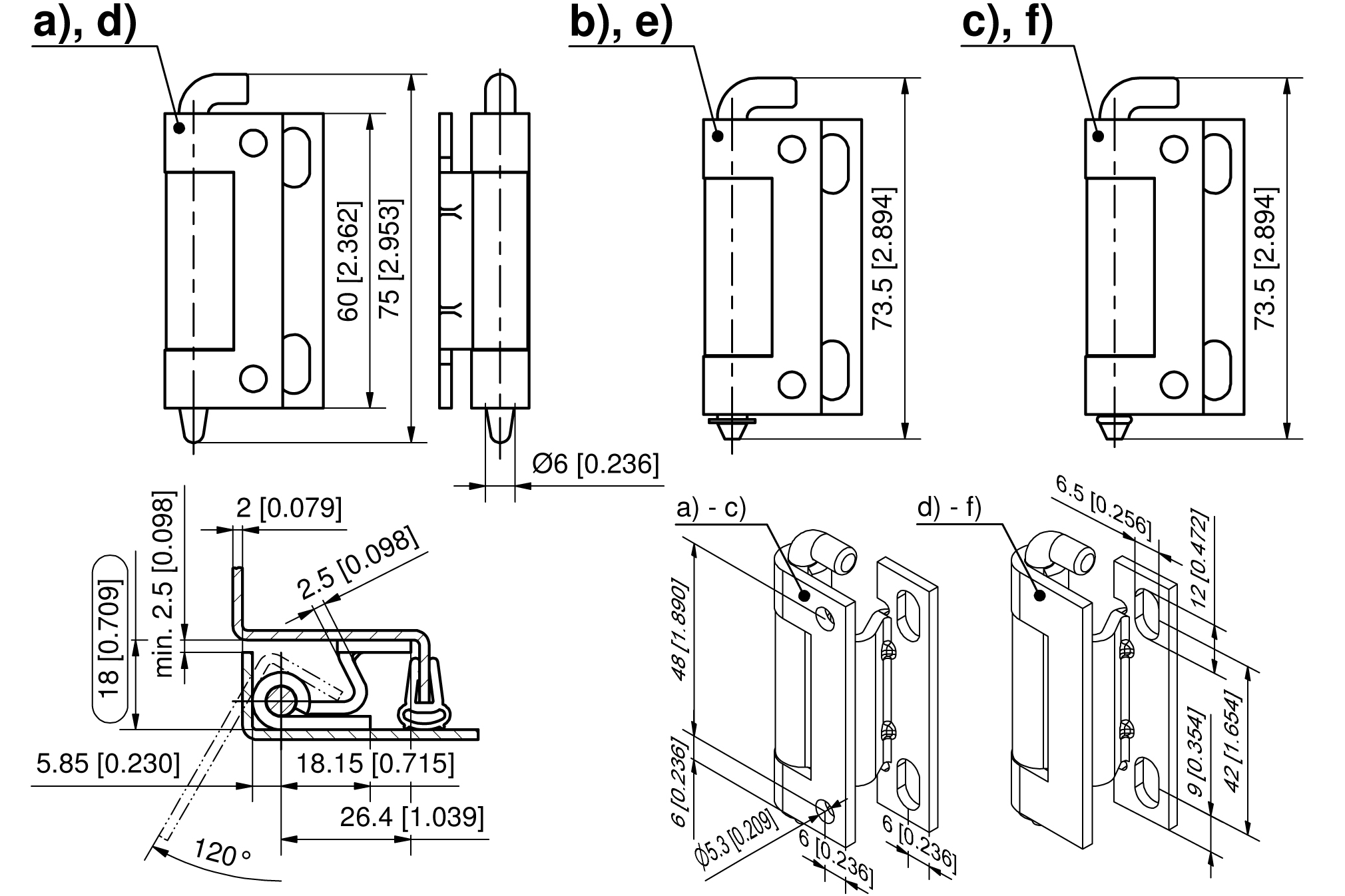

Available versions
Concealed hinge
Product number
Pin version
Installation type door-part
Delivery Unit
a)
216-9003.00-00000
without groove
screw-on
10 pcs.
b)
216-9011.00-00000
with groove incl. locking washer DIN6799
screw-on
10 pcs.
c)
216-9011.00-00001
with groove incl. o-ring
screw-on
10 pcs.
d)
216-9024.00-00000
without groove
weld-on
10 pcs.
e)
216-9025.00-00000
with groove incl. locking washer DIN6799
weld-on
10 pcs.
f)
216-9025.00-00001
with groove incl. o-ring
weld-on
10 pcs.
