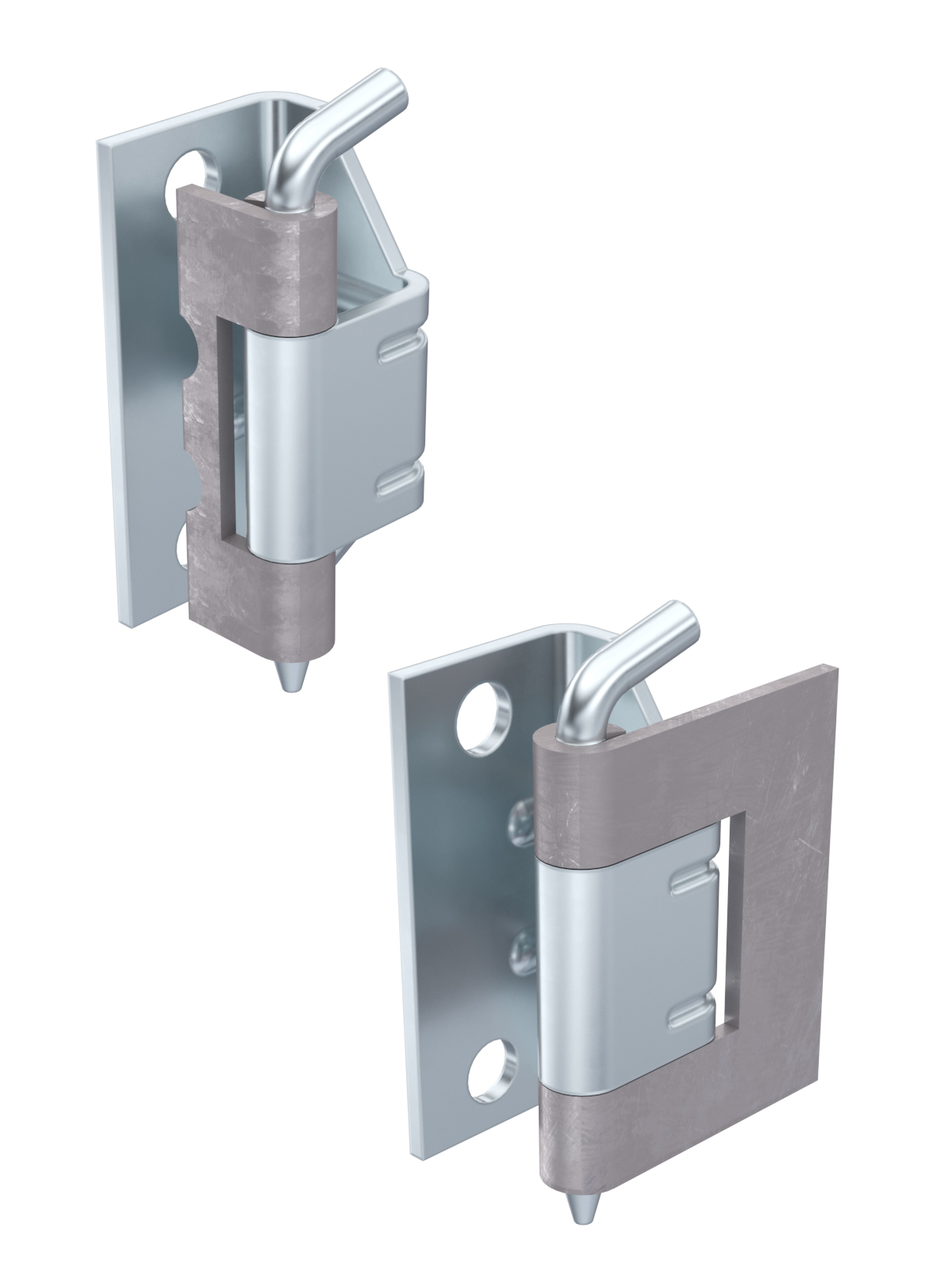

Concealed Hinge Pr03 120°

4_135
E_4-135
4_135
E_4-135

Advantages

  • For surface mounted doors.
  • Hinge concealed.
  • Door bending 23mm.
  • RH and LH application.
  • 120° Opening angle.
  • Two different fastenings on the door.
  • Frame-part: screw-on e.g. cross recessed raised cheese head screw M6 DIN-EN-ISO 7045.

Material

  • Door-part: steel, untreated
  • Frame-part and pin: steel, zinc plated

Remarks

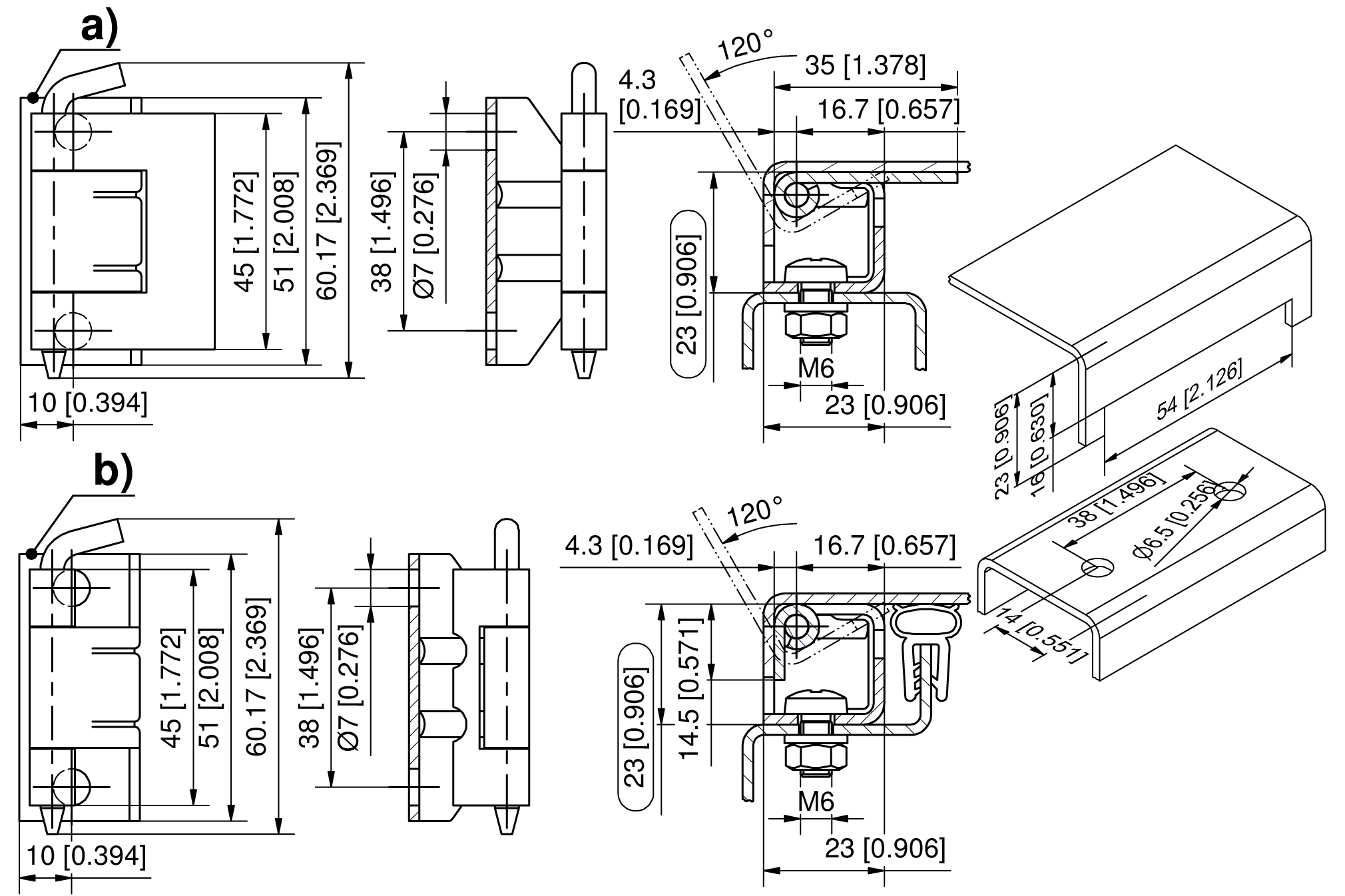

a) door-part to be weld-on on the door leaf
b) door-part to be weld-on on the door bending
Please select version Product data sheet

Available versions

Concealed hinge


Product number
Pin version
Installation type
Delivery Unit
a)
216-9008.00-00000
loose
screw- / weld-on
10 pcs.
b)
216-9013.00-00000
loose
screw- / weld-on
10 pcs.
