[4-152DST]

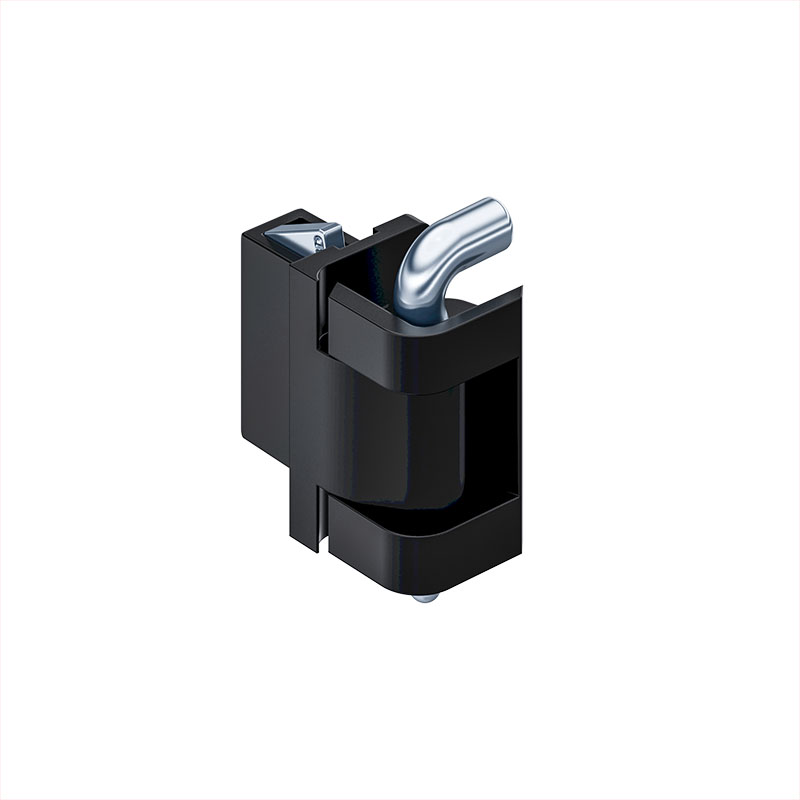

DST Hinge Pr05 180°

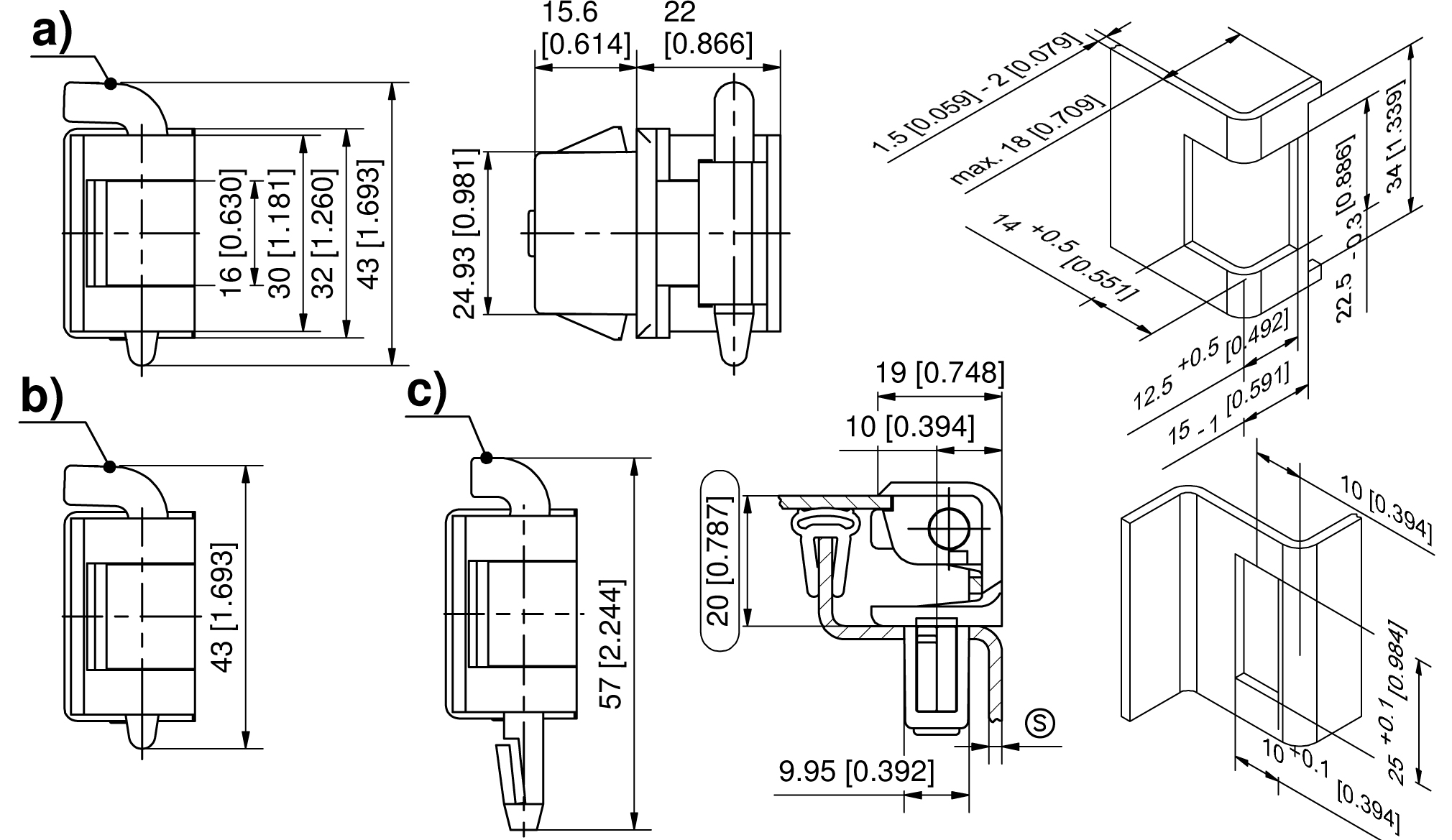

Available versions
Hinge
Product number
Clamping range (S)
Material pin
Pin length L
Pin version
Installation type
Delivery Unit
a)
412-9059.00-01217
1.2 - 1.7 mm
steel, zinc plated
43 mm
loose
tool-less
10 pcs.
a)
412-9059.00-01722
1.7 - 2.2 mm
steel, zinc plated
43 mm
loose
tool-less
10 pcs.
b)
412-9060.00-01217
1.2 - 1.7 mm
AISI 304
43 mm
loose
tool-less
10 pcs.
b)
412-9060.00-01722
1.7 - 2.2 mm
AISI 304
43 mm
loose
tool-less
10 pcs.
c)
412-9061.00-01217
1.2 - 1.7 mm
POM
57 mm
self-locking
tool-less
10 pcs.
c)
412-9061.00-01722
1.7 - 2.2 mm
POM
57 mm
self-locking
tool-less
10 pcs.
