[4-246DST]

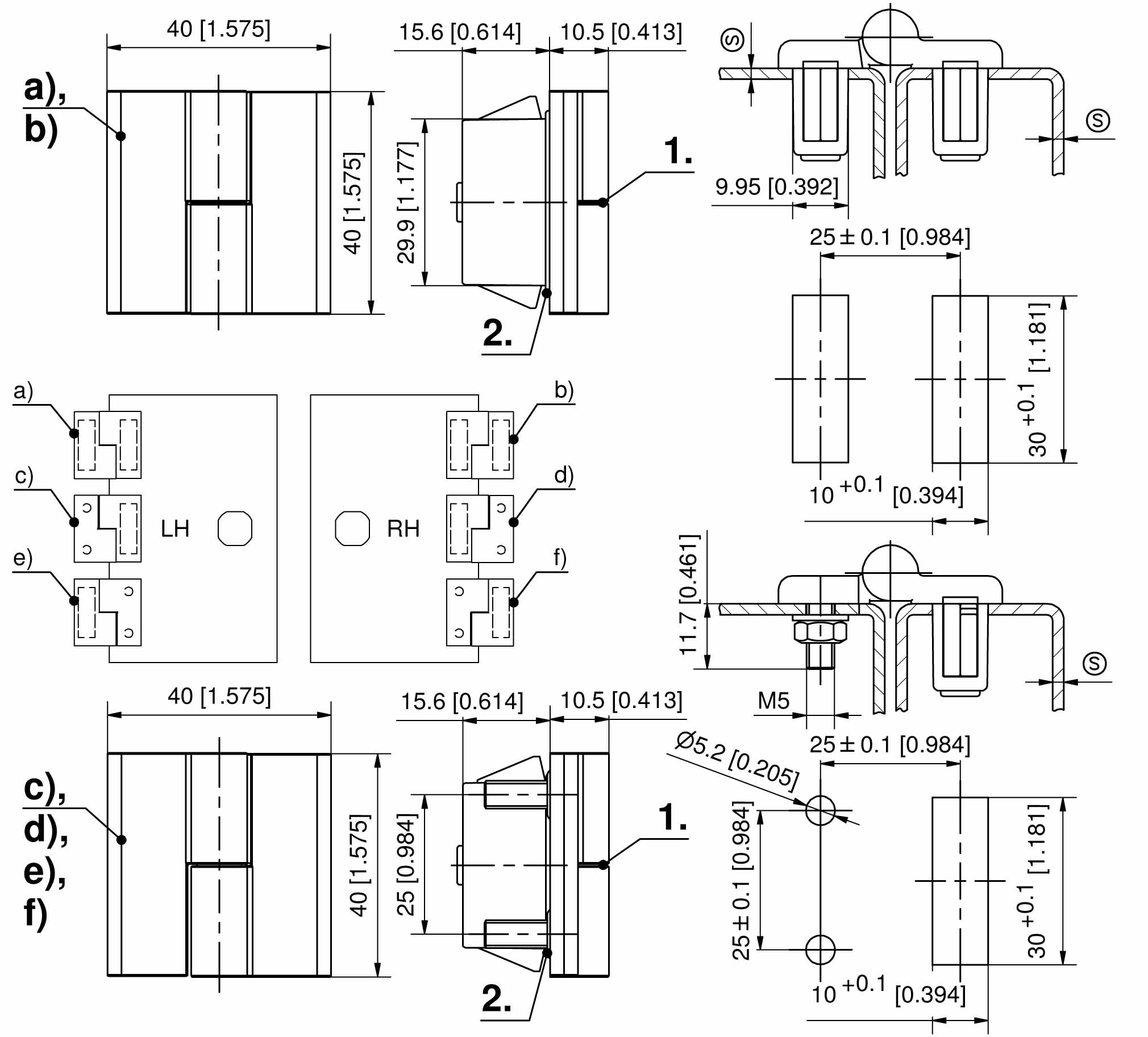

DST Hinge 40x40 Pr01 180°
Available versions
Hinge, version LH
Product number
Clamping range (S)
Pin version
Installation type
Delivery Unit
a)
418-9011.00-00010
0.7 - 1.2 mm
pressed in
tool-less
10 pcs.
a)
418-9011.00-00015
1.2 - 1.7 mm
pressed in
tool-less
10 pcs.
a)
418-9011.00-00020
1.7 - 2.2 mm
pressed in
tool-less
10 pcs.
a)
418-9011.00-00025
2.2 - 2.7 mm
pressed in
tool-less
10 pcs.
a)
418-9011.00-00030
2.7 - 3.2 mm
pressed in
tool-less
10 pcs.
Hinge, version RH
Product number
Clamping range (S)
Pin version
Installation type
Delivery Unit
b)
418-9008.00-00010
0.7 - 1.2 mm
pressed in
tool-less
10 pcs.
b)
418-9008.00-00015
1.2 - 1.7 mm
pressed in
tool-less
10 pcs.
b)
418-9008.00-00020
1.7 - 2.2 mm
pressed in
tool-less
10 pcs.
b)
418-9008.00-00025
2.2 - 2.7 mm
pressed in
tool-less
10 pcs.
b)
418-9008.00-00030
2.7 - 3.2 mm
pressed in
tool-less
10 pcs.
Hinge, pin pressed into screw-on half, LH
Product number
Clamping range (S)
Pin version
Installation type
Delivery Unit
c)
418-9009.00-00010
0.7 - 1.2 mm
pressed in
tool-less / screw-on
10 pcs.
c)
418-9009.00-00015
1.2 - 1.7 mm
pressed in
tool-less / screw-on
10 pcs.
c)
418-9009.00-00020
1.7 - 2.2 mm
pressed in
tool-less / screw-on
10 pcs.
c)
418-9009.00-00025
2.2 - 2.7 mm
pressed in
tool-less / screw-on
10 pcs.
c)
418-9009.00-00030
2.7 - 3.2 mm
pressed in
tool-less / screw-on
10 pcs.
Hinge, pin pressed into screw-on half, RH
Product number
Clamping range (S)
Pin version
Installation type
Delivery Unit
d)
418-9006.00-00010
0.7 - 1.2 mm
pressed in
tool-less / screw-on
10 pcs.
d)
418-9006.00-00015
1.2 - 1.7 mm
pressed in
tool-less / screw-on
10 pcs.
d)
418-9006.00-00020
1.7 - 2.2 mm
pressed in
tool-less / screw-on
10 pcs.
d)
418-9006.00-00025
2.2 - 2.7 mm
pressed in
tool-less / screw-on
10 pcs.
d)
418-9006.00-00030
2.7 - 3.2 mm
pressed in
tool-less / screw-on
10 pcs.
Hinge, pin pressed into DST-half, LH
Product number
Clamping range (S)
Pin version
Installation type
Delivery Unit
e)
418-9012.00-00010
0.7 - 1.2 mm
pressed in
tool-less / screw-on
10 pcs.
e)
418-9012.00-00015
1.2 - 1.7 mm
pressed in
tool-less / screw-on
10 pcs.
e)
418-9012.00-00020
1.7 - 2.2 mm
pressed in
tool-less / screw-on
10 pcs.
e)
418-9012.00-00025
2.2 - 2.7 mm
pressed in
tool-less / screw-on
10 pcs.
e)
418-9012.00-00030
2.7 - 3.2 mm
pressed in
tool-less / screw-on
10 pcs.
Hinge, pin pressed into DST-half, RH
Product number
Clamping range (S)
Pin version
Installation type
Delivery Unit
f)
418-9013.00-00010
0.7 - 1.2 mm
pressed in
tool-less / screw-on
10 pcs.
f)
418-9013.00-00015
1.2 - 1.7 mm
pressed in
tool-less / screw-on
10 pcs.
f)
418-9013.00-00020
1.7 - 2.2 mm
pressed in
tool-less / screw-on
10 pcs.
f)
418-9013.00-00025
2.2 - 2.7 mm
pressed in
tool-less / screw-on
10 pcs.
f)
418-9013.00-00030
2.7 - 3.2 mm
pressed in
tool-less / screw-on
10 pcs.
