[4-247.01]

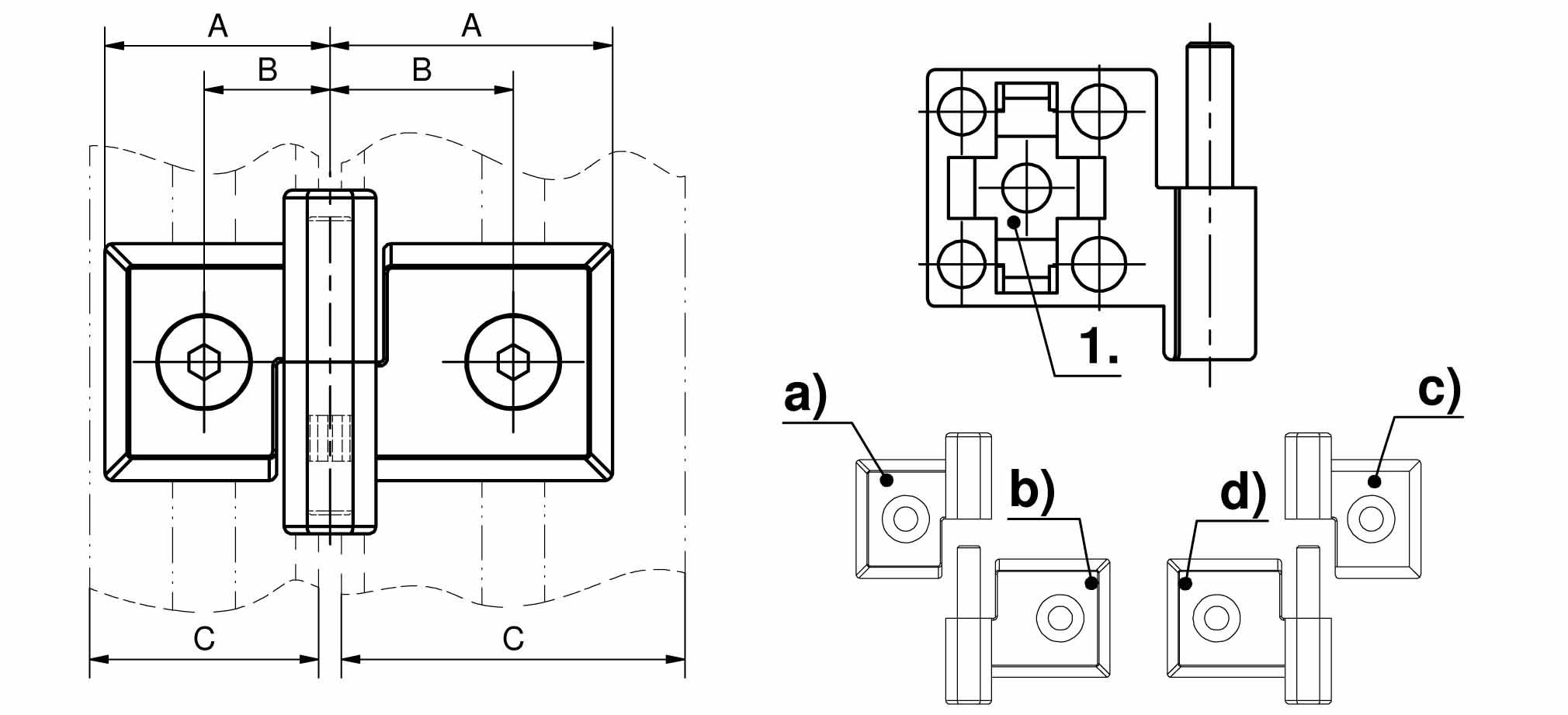

Hinge Halves Pr01 180°
Available versions
Hinge halves, version RH, zinc die, blasted chrome plated
Product number
Pin
Dimension A
Dimension B
for profile width C
Combinable with
Pin version
Installation type
Delivery Unit
a)
265-0101.01-00000
29.5 mm
16.5 mm
30
b
pressed in
screw-on
10 pcs.
a)
265-0201.01-00000
32 mm
19 mm
35
b
pressed in
screw-on
10 pcs.
a)
265-0301.01-00000
34.5 mm
21.5 mm
40
b
pressed in
screw-on
10 pcs.
a)
265-0501.01-00000
39.5 mm
26.5 mm
50
b
pressed in
screw-on
on request
b)
265-8703.00-00000
Yes
29.5 mm
16.5 mm
30
a
pressed in
screw-on
on request
b)
265-8707.00-00000
Yes
32 mm
19 mm
35
a
pressed in
screw-on
10 pcs.
b)
265-8711.00-00000
Yes
34.5 mm
21.5 mm
40
a
pressed in
screw-on
10 pcs.
b)
265-8719.00-00000
Yes
39.5 mm
26.5 mm
50
a
pressed in
screw-on
on request
Hinge halves, version RH, zinc die, black
Product number
Pin
Dimension A
Dimension B
for profile width C
Combinable with
Pin version
Installation type
Delivery Unit
a)
265-0101.02-00000
29.5 mm
16.5 mm
30
b
pressed in
screw-on
10 pcs.
a)
265-0201.02-00000
32 mm
19 mm
35
b
pressed in
screw-on
10 pcs.
a)
265-0301.02-00000
34.5 mm
21.5 mm
40
b
pressed in
screw-on
10 pcs.
a)
265-0501.02-00000
39.5 mm
26.5 mm
50
b
pressed in
screw-on
10 pcs.
b)
265-8704.00-00000
Yes
29.5 mm
16.5 mm
30
a
pressed in
screw-on
10 pcs.
b)
265-8708.00-00000
Yes
32 mm
19 mm
35
a
pressed in
screw-on
10 pcs.
b)
265-8712.00-00000
Yes
34.5 mm
21.5 mm
40
a
pressed in
screw-on
10 pcs.
b)
265-8720.00-00000
Yes
39.5 mm
26.5 mm
50
a
pressed in
screw-on
10 pcs.
Hinge halves, version LH, zinc die, blasted chrome plated
Product number
Pin
Dimension A
Dimension B
for profile width C
Combinable with
Pin version
Installation type
Delivery Unit
c)
265-0102.01-00000
29.5 mm
16.5 mm
30
d
pressed in
screw-on
10 pcs.
c)
265-0202.01-00000
32 mm
19 mm
35
d
pressed in
screw-on
10 pcs.
c)
265-0302.01-00000
34.5 mm
21.5 mm
40
d
pressed in
screw-on
10 pcs.
c)
265-0502.01-00000
39.5 mm
26.5 mm
50
d
pressed in
screw-on
on request
d)
265-8701.00-00000
Yes
29.5 mm
16.5 mm
30
c
pressed in
screw-on
10 pcs.
d)
265-8705.00-00000
Yes
32 mm
19 mm
35
c
pressed in
screw-on
10 pcs.
d)
265-8709.00-00000
Yes
34.5 mm
21.5 mm
40
c
pressed in
screw-on
10 pcs.
d)
265-8717.00-00000
Yes
39.5 mm
26.5 mm
50
c
pressed in
screw-on
on request
Hinge halves, version LH, zinc die, black
Product number
Pin
Dimension A
Dimension B
for profile width C
Combinable with
Pin version
Installation type
Delivery Unit
c)
265-0102.02-00000
29.5 mm
16.5 mm
30
d
pressed in
screw-on
10 pcs.
c)
265-0202.02-00000
32 mm
19 mm
35
d
pressed in
screw-on
10 pcs.
c)
265-0302.02-00000
34.5 mm
21.5 mm
40
d
pressed in
screw-on
10 pcs.
c)
265-0502.02-00000
39.5 mm
26.5 mm
50
d
pressed in
screw-on
10 pcs.
d)
265-8702.00-00000
Yes
29.5 mm
16.5 mm
30
c
pressed in
screw-on
10 pcs.
d)
265-8706.00-00000
Yes
32 mm
19 mm
35
c
pressed in
screw-on
10 pcs.
d)
265-8710.00-00000
Yes
34.5 mm
21.5 mm
40
c
pressed in
screw-on
10 pcs.
d)
265-8718.00-00000
Yes
39.5 mm
26.5 mm
50
c
pressed in
screw-on
10 pcs.
