[4-264DST]

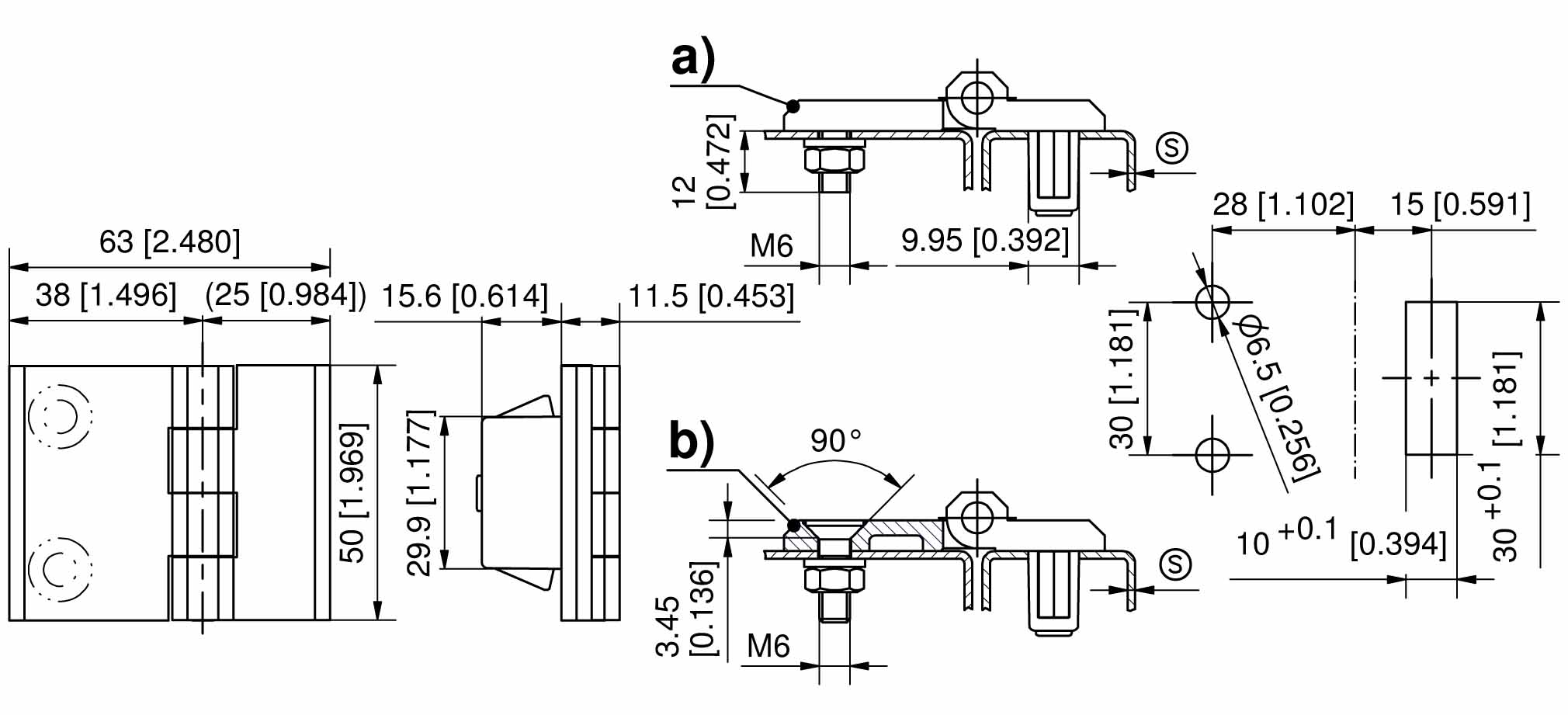

DST Hinge 63x50 Pr01 180°
Available versions
Hinge
Product number
Clamping range (S)
Version
Pin version
Installation type
Delivery Unit
a)
418-9103.00-00015
1.2 - 1.7 mm
with molded in screws M6
pressed in
tool-less / screw-on
10 pcs.
a)
418-9103.00-00020
1.7 - 2.2 mm
with molded in screws M6
pressed in
tool-less / screw-on
10 pcs.
a)
418-9103.00-00025
2.2 - 2.7 mm
with molded in screws M6
pressed in
tool-less / screw-on
10 pcs.
a)
418-9103.00-00030
2.7 - 3.2 mm
with molded in screws M6
pressed in
tool-less / screw-on
10 pcs.
b)
418-9102.00-00015
1.2 - 1.7 mm
with countersunk holes for M6
pressed in
tool-less / screw-on
10 pcs.
b)
418-9102.00-00020
1.7 - 2.2 mm
with countersunk holes for M6
pressed in
tool-less / screw-on
10 pcs.
b)
418-9102.00-00025
2.2 - 2.7 mm
with countersunk holes for M6
pressed in
tool-less / screw-on
10 pcs.
b)
418-9102.00-00030
2.7 - 3.2 mm
with countersunk holes for M6
pressed in
tool-less / screw-on
10 pcs.
