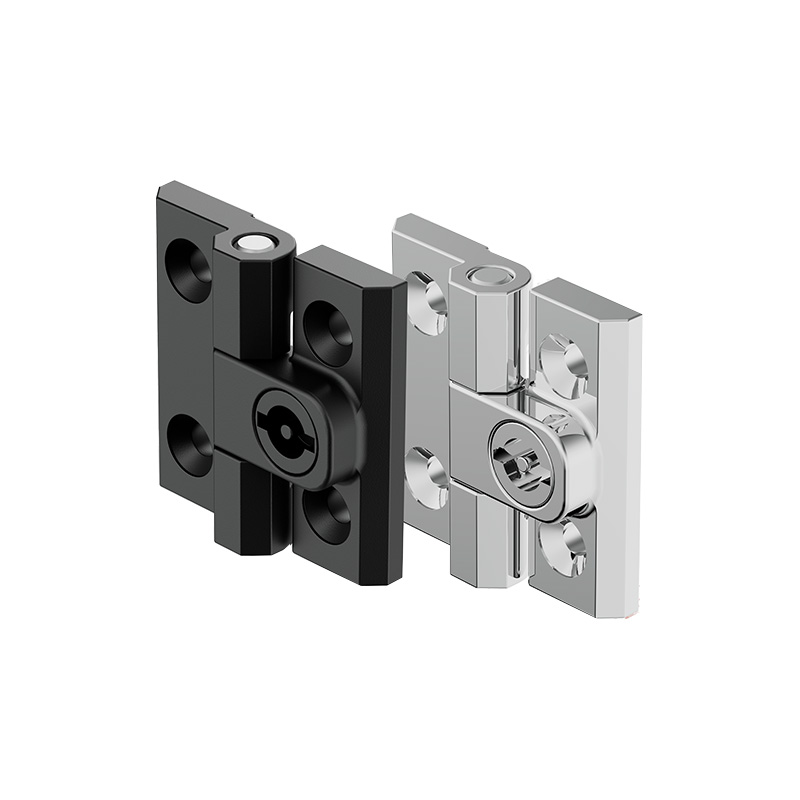

Hinge with locking function 60x60 Pr01 130°

ICON_HINGE_SERIES_Pr01
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_130_GRAD

Advantages

  • Screw-on hinge with locking function.
  • For nested doors.
  • Hinge visible.

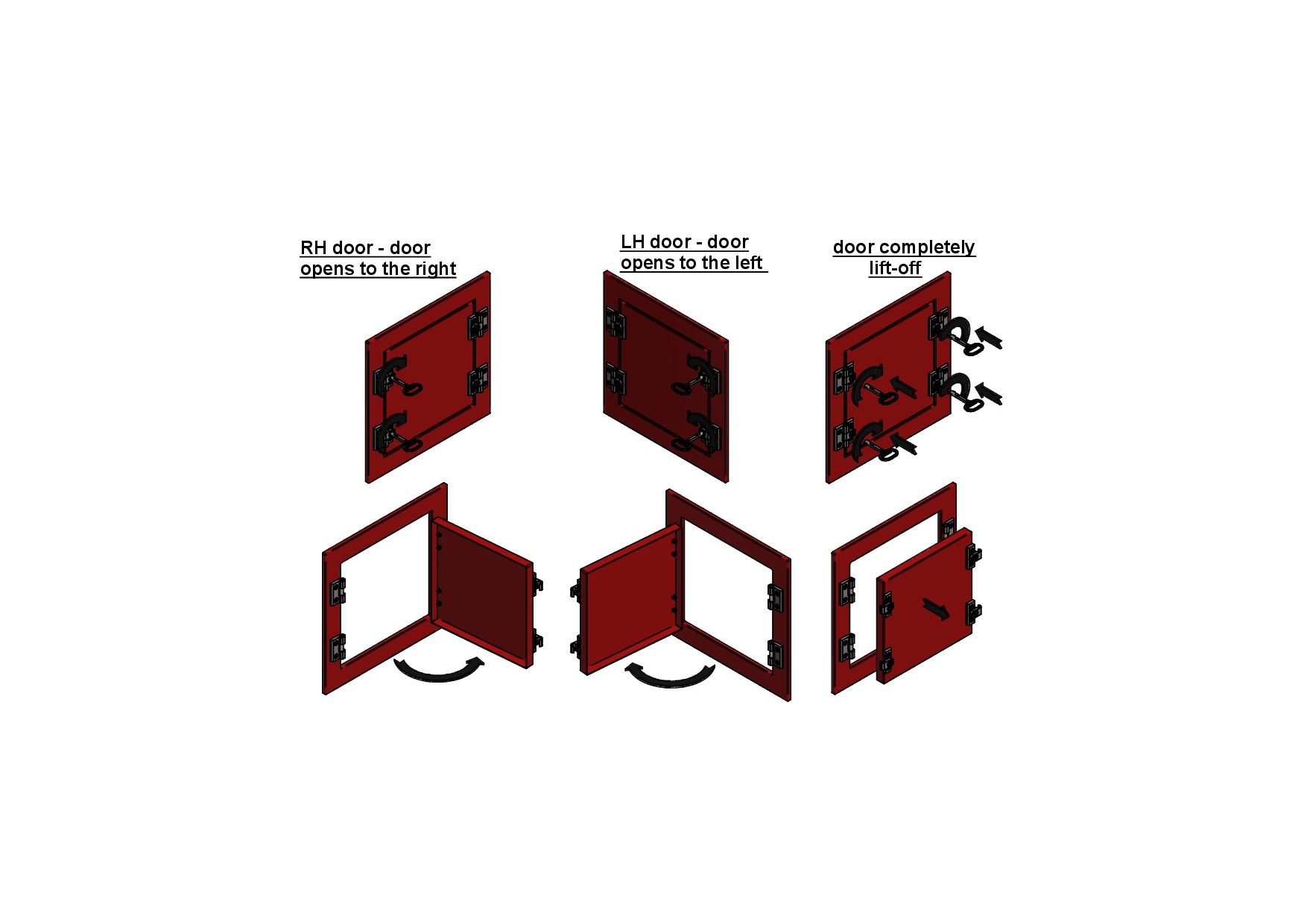

  • RH / LH application.
  • 130° Opening angle.
  • When using 4 hinges, the door can be lifted off completely.
  • O-RIng for smooth turning motion of the insert.

Material

  • Hinge halves and insert: zinc die, black or chrome plated
  • Pin: AISI 303
  • Sealings: NBR

Remarks

Further insert versions available on request.

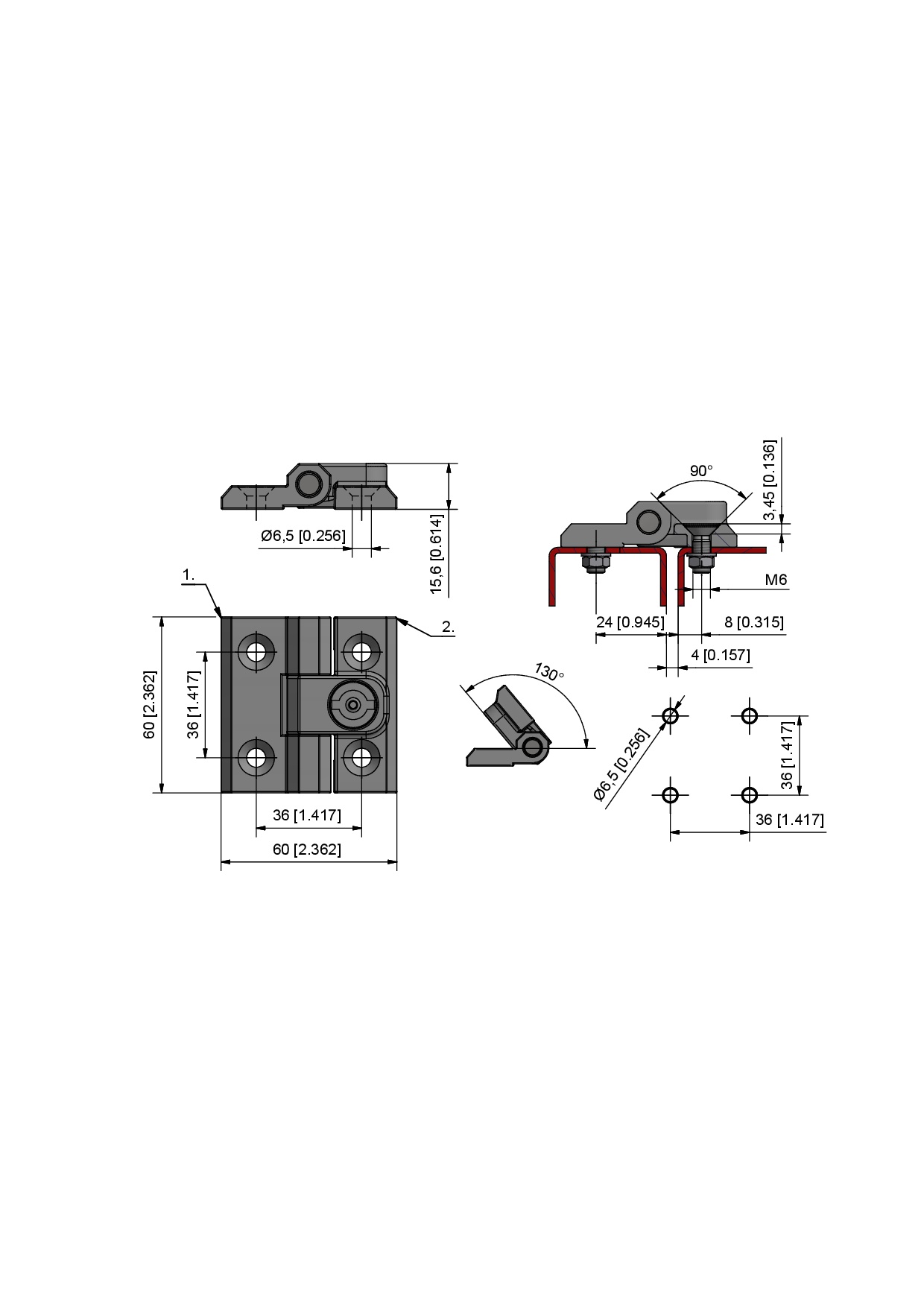

1. frame part
2. door-part


ATTENTION:
In the case of a retrofit, the mounting points (diameter and positioning) and the door gap dimension must be checked and adjusted according to our drawing.



Please select version Product data sheet
