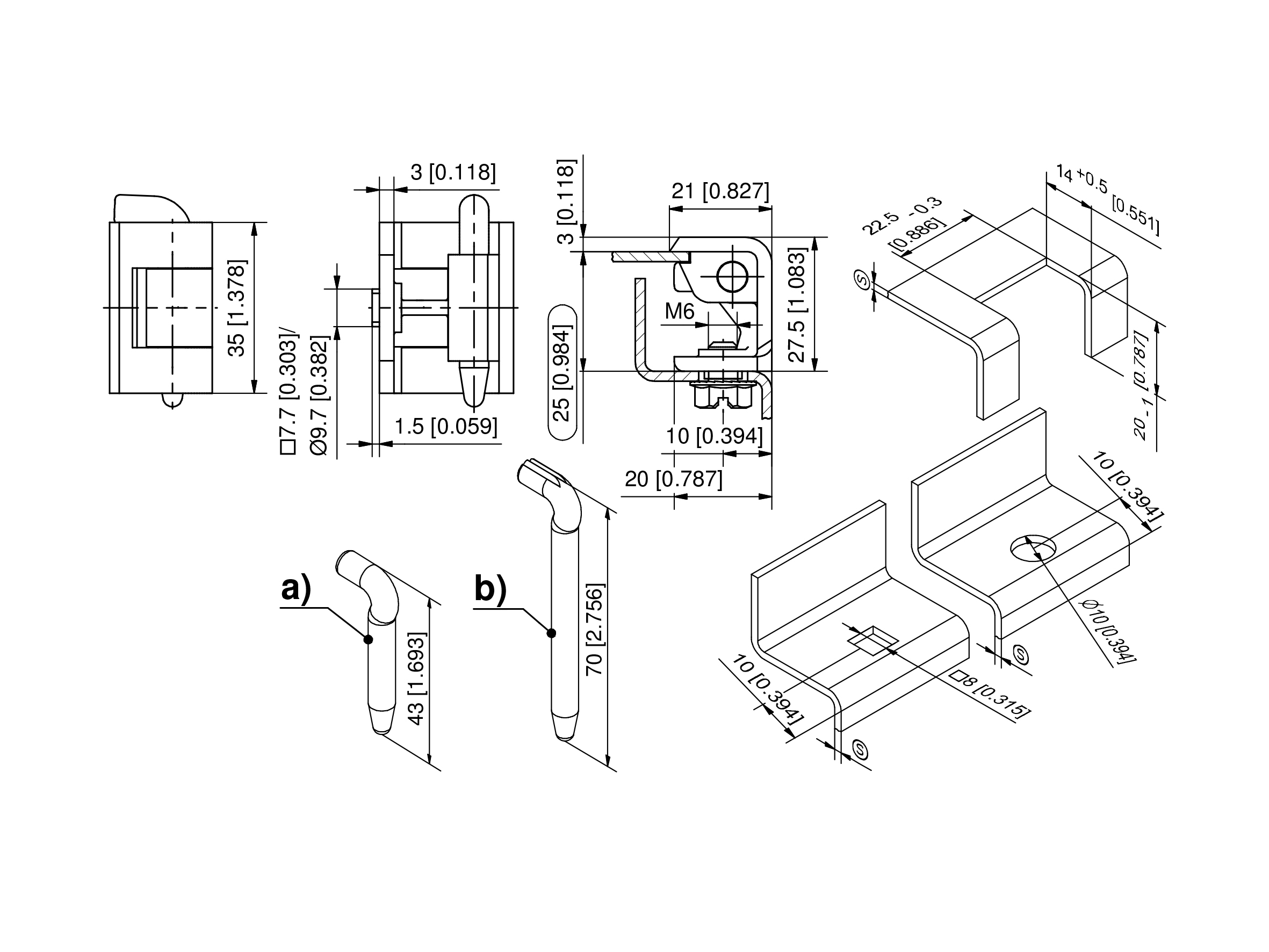

Hinge Pr05 180° Stainless Steel

ICON_HINGE_SERIES_Pr05
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_EDELSTAHL
ICON_180_GRAD
ICON_IP65
7_136
E_7-136
7_136
E_7-136

Advantages

  • For surface mounted doors for single cabinets.
  • Hinge partly visible.
  • Door bending 25mm.
  • RH / LH application.
  • 180° Opening angle.
  • Frame-part with M6 threaded stub for installation from inside.
  • The frame-part has a reinforcement rib.
  • IP65 according to DIN EN 60529 by flat external seal (optinal for version b).

Material

  • Frame- and door-part: AISI 316
  • Pin:  AISI 316 or AISI 304

Remarks

(S) Door-thickness min. 1.5mm
Please select version Product data sheet

Available versions

Hinge


Product number
Material pin
Pin length L
Frame-part
Pin version
Installation type
Delivery Unit
a)
212-9712.00-00000
AISI 304
43 mm
with M6 threaded stubs
loose
screw-on
10 pcs.
b)
212-9715.00-00000
AISI 316
70 mm
with M6 threaded stubs
loose
screw-on
10 pcs.
