Hinge Pr01 270° Stainless Steel

ICON_HINGE_SERIES_Pr01
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_EDELSTAHL
ICON_270_GRAD
E_7-203
E_7-203

Advantages

  • For nested doors.
  • Hinge visible.
  • RH / LH application.
  • 270° Opening angle.
  • Vibration-proof.
  • Vandalism safety due to both sides welded, hinge pin not visible.

Material

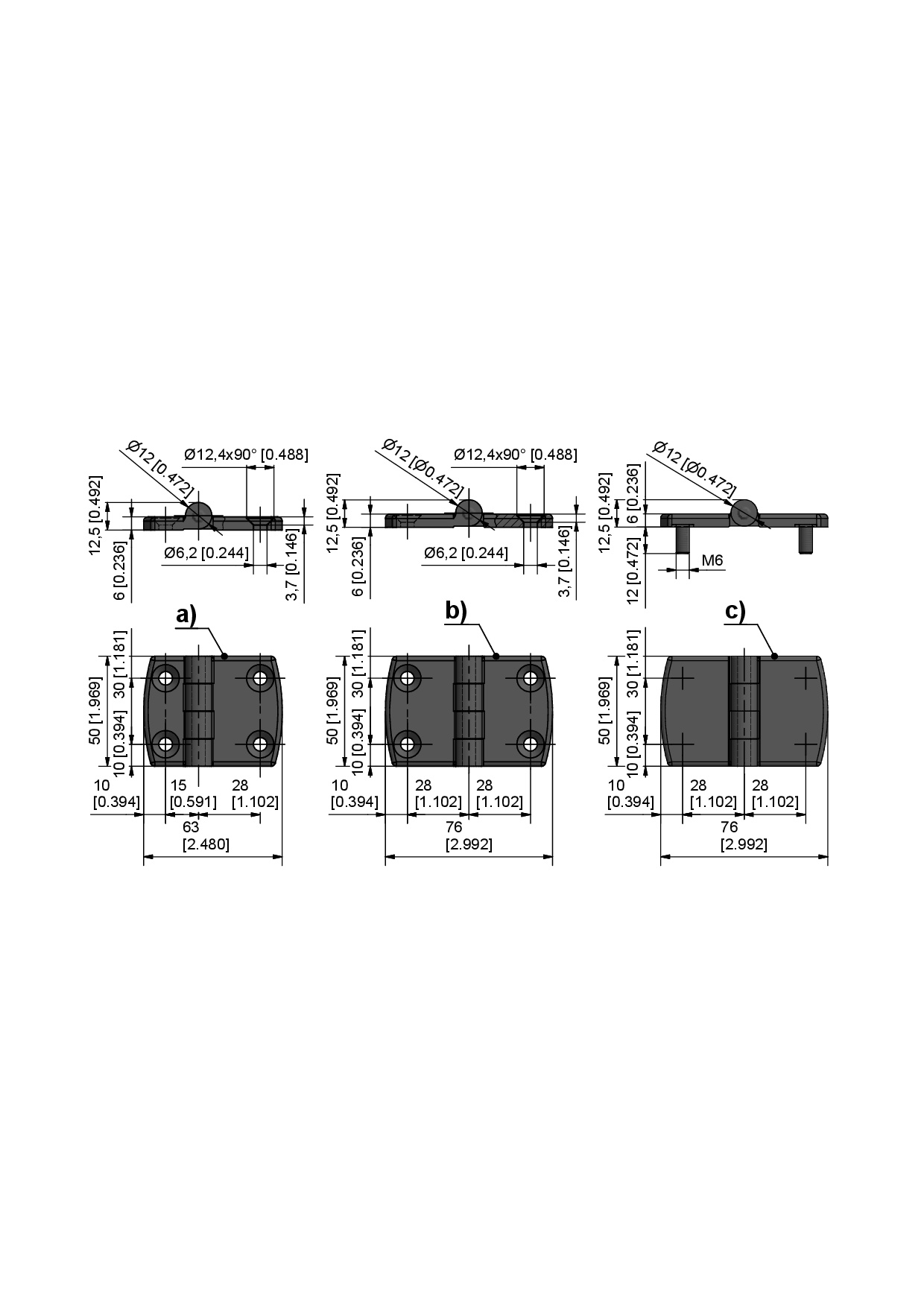

a) and b)

  • Hinge parts and pin: AISI 316

c)

  • Hinge parts and pin: AISI 316L

Remarks

a) and b)

Fastening with countersunk screws M6 to DIN 7991

Please select version Product data sheet
