[6-280]

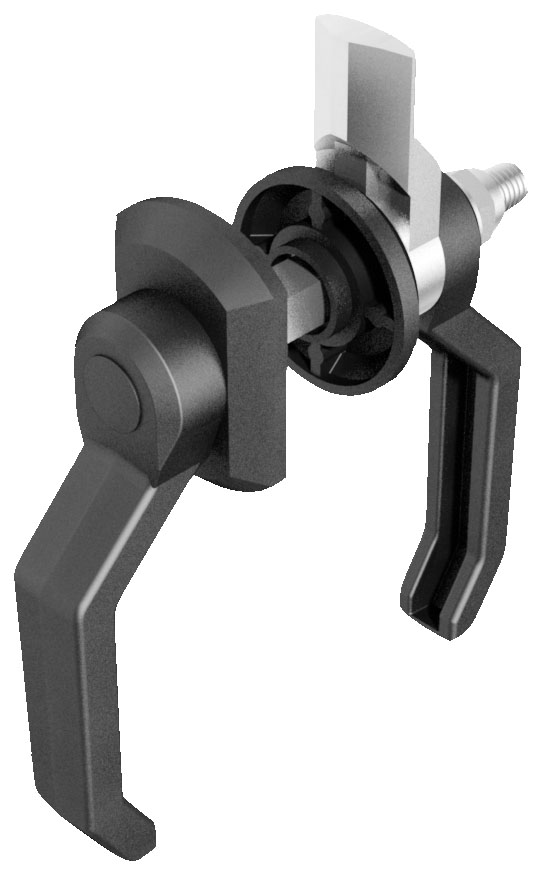

Heavy Duty Latch System for HVAC Applications

ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_IP69K
6_280
E_6-280_1

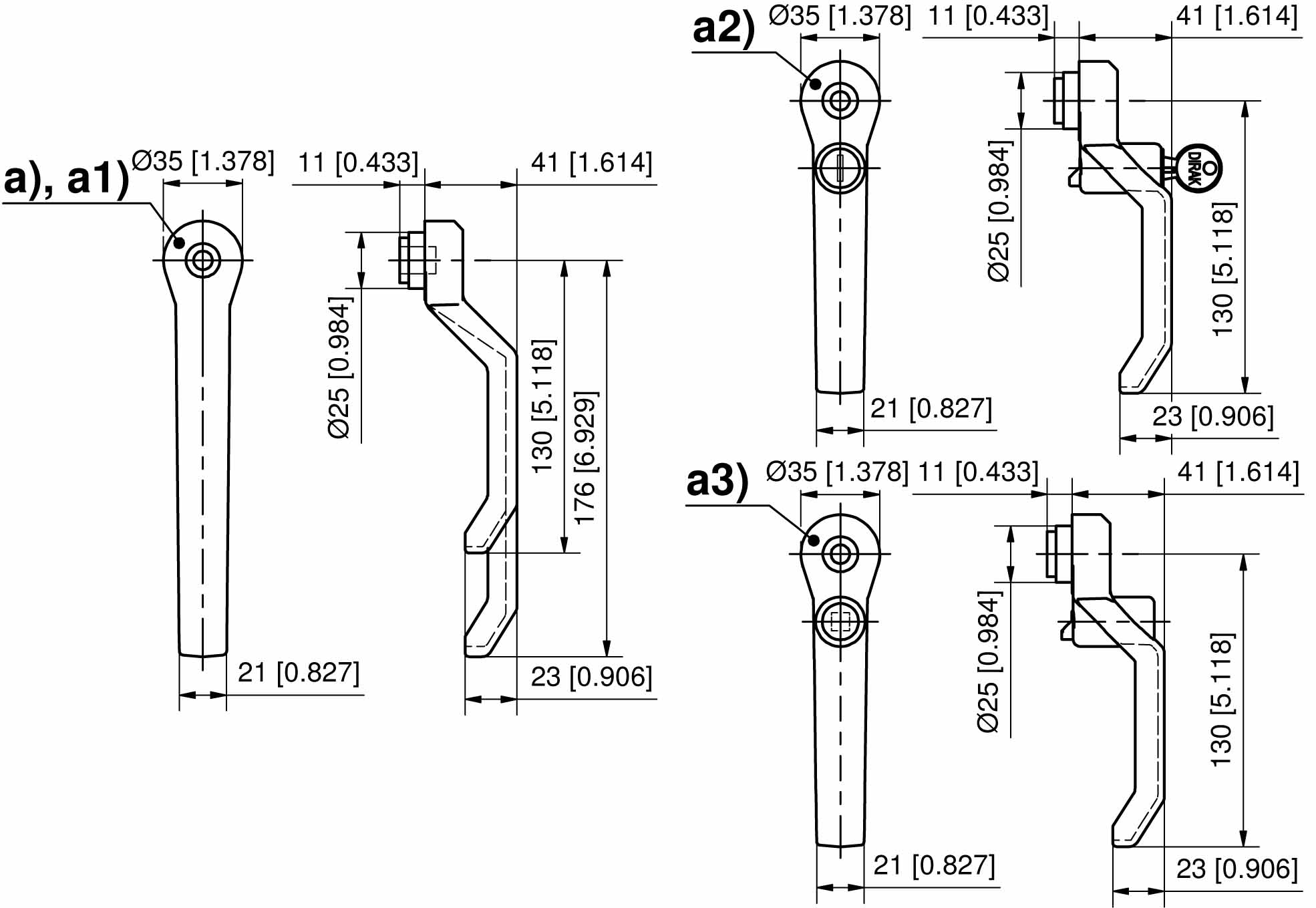

E_6-280_2
6_280
E_6-280_1
E_6-280_2

Advantages

  • Handle outside.
  • Without lock, with key cylinder or insert.
  • Suitable for different door-thicknesses.
  • Lockable handles, keyed alike, are equipped with stainless steel dust-shutter.
  • IP65 according to DIN EN 60529 by sealing kit (optional).

Material


a), a2) and a3)
  • Handle: PA, black
a1)
  • Handle: PA, black / steel, zinc plated
a3)
  • Insert: zinc die, chrome plated

Remarks

(S) Door-thickness see product system 6-280.02
Cutout see product system 6-280.05.

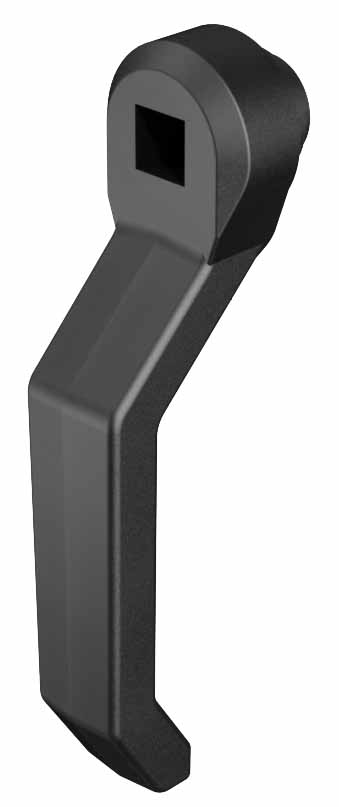

Handle inside see product system 6-280.01.

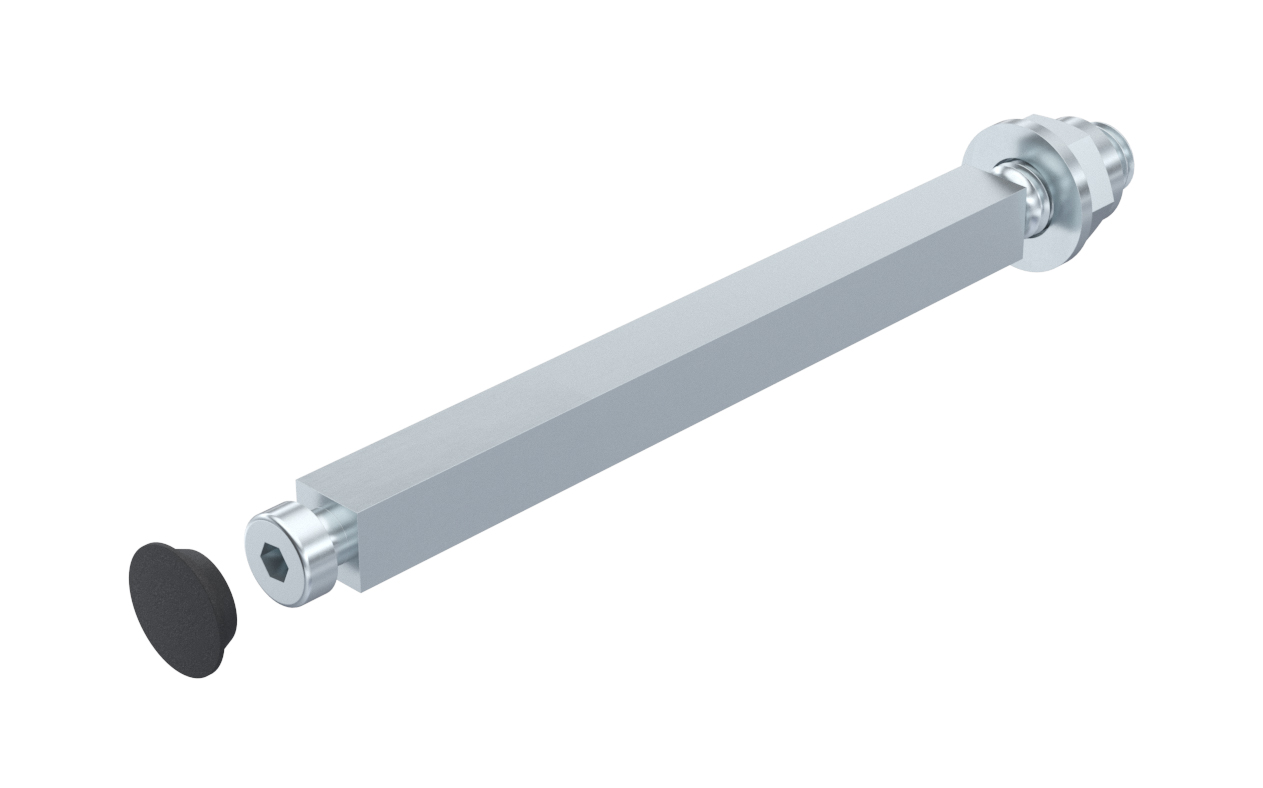

Shafts see product system 6-280.02.

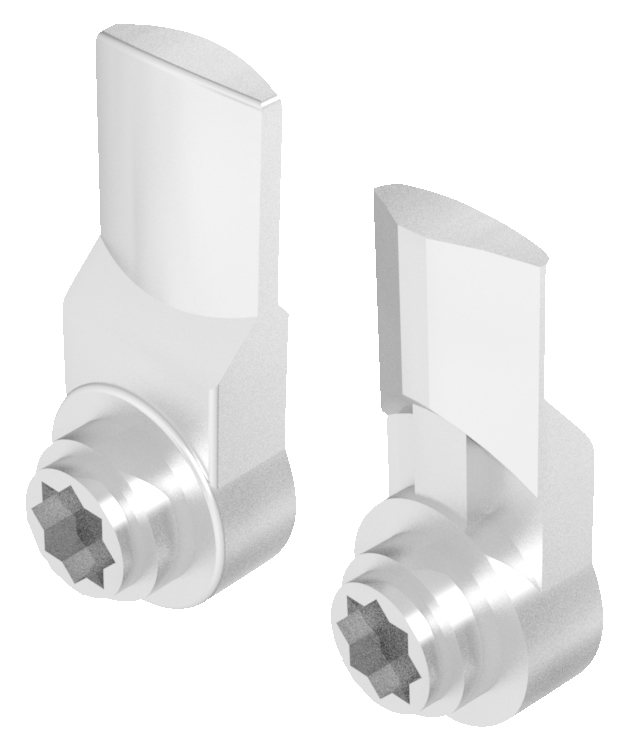

Cams see product system 6-280.03.

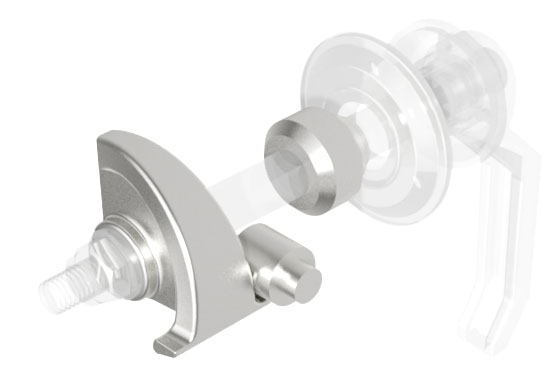

Compression cam see product system 6-280.04.

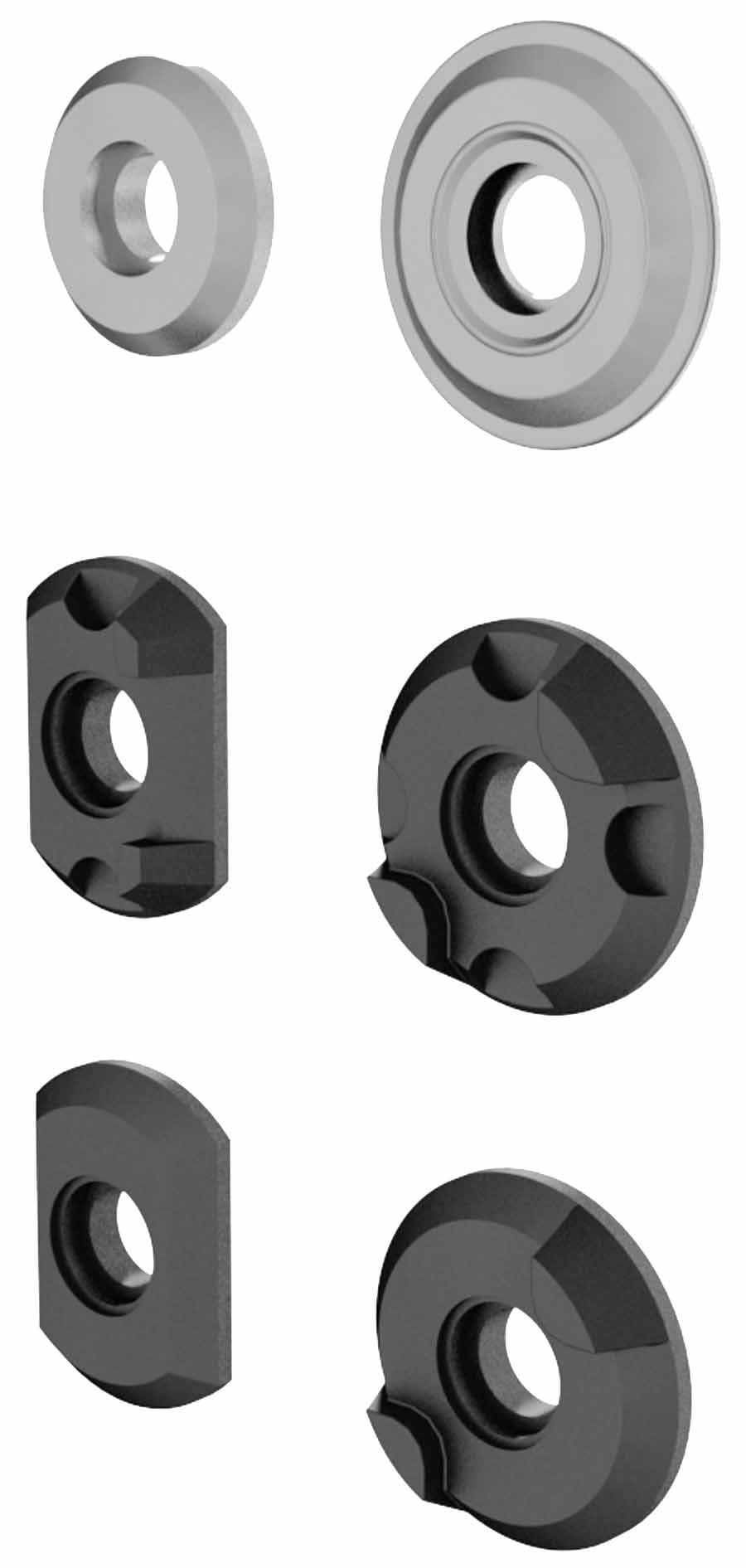

Rosettes and sealing kits see product system 6-280.05.

Fastening with cylinder head screws M8.
Please select version Product data sheet

Available versions

Handle outside, without lock


Product number
Handle length
Version
Delivery Unit
a)
232-0201.00-00000
130 mm
1 pc.
a)
232-0202.00-00000
176 mm
1 pc.
a1)
232-0207.00-00000
130 mm
with steel core
1 pc.
a1)
232-0208.00-00000
176 mm
with steel core
1 pc.

Handle outside, with cylinder


Product number
Handle length
Latching type
Delivery Unit
a2)
232-9303.00-00000
130 mm
keyed alike DIRAK 1333
1 pc.
a2)
532-9303.00-00000
130 mm
keyed alike DS200
1 pc.
a2)
232-9304.00-00000
130 mm
keyed different
1 pc.

Handle outside, with insert


Product number
Handle length
Insert
Delivery Unit
a3)
232-9401.00-00000
130 mm
Square 6mm
1 pc.
a3)
232-9402.00-00000
130 mm
Square 7mm
1 pc.
a3)
232-9403.00-00000
130 mm
Square 8mm
1 pc.
a3)
232-9404.00-00000
130 mm
Square 8mm, slotted
1 pc.
a3)
232-9405.00-00000
130 mm
Triangular 6.5mm CNOMO
1 pc.
a3)
232-9406.00-00000
130 mm
Triangular 7mm
1 pc.
a3)
232-9407.00-00000
130 mm
Triangular 8mm
1 pc.
a3)
232-9408.00-00000
130 mm
Triangular 6.5mm CNOMO
1 pc.
a3)
232-9409.00-00000
130 mm
Double bit 3mm pin
1 pc.
a3)
232-9410.00-00000
130 mm
Double bit 5mm pin
1 pc.
a3)
232-9411.00-00000
130 mm
Socket hex. 6mm
1 pc.
a3)
232-9412.00-00000
130 mm
Socket hex. 10mm
1 pc.
a3)
232-9413.00-00000
130 mm
Square socket 6mm
1 pc.
a3)
232-9414.00-00000
130 mm
Square socket 7mm
1 pc.
a3)
232-9415.00-00000
130 mm
Square socket 8mm
1 pc.
a3)
232-9416.00-00000
130 mm
Daimler Benz type
1 pc.
a3)
232-9417.00-00000
130 mm
Slotted 2x4mm
1 pc.
a3)
232-9418.00-00000
130 mm
Crown type key
1 pc.
a3)
232-9419.00-00000
130 mm
Slotted insert
1 pc.
a3)
232-9420.00-00000
130 mm
Half-round czech
1 pc.
