[6-281.04]

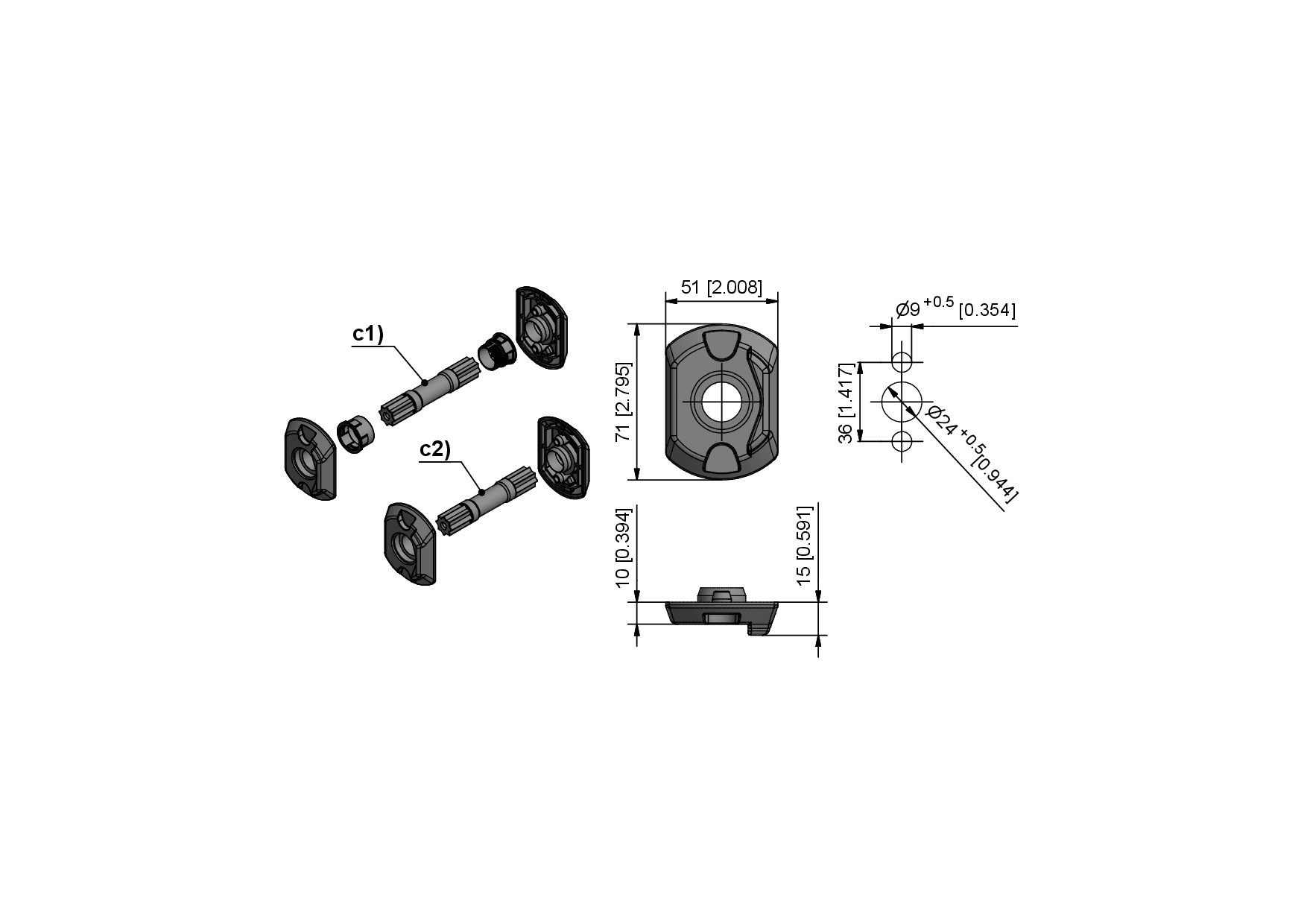

Shafts and Rosettes for HVAC Heavy Duty Latch System with 2 Handles
Available versions
Shafts with rosettes inside and outside
Product number
Door-thickness (S)
Door pressure-stable
Delivery Unit
c1)
229-8708.00-00010
25 mm - 32 mm
on request
c1)
229-8708.00-00011
32 mm - 45 mm
on request
c1)
229-8708.00-00012
45 mm - 50 mm
on request
c1)
229-8708.00-00013
50 mm - 68 mm
on request
c1)
229-8708.00-00014
68 mm - 75 mm
on request
c1)
229-8708.00-00015
75 mm - 100 mm
on request
c2)
229-8708.00-00020
25 mm - 50 mm
Yes
on request
c2)
229-8708.00-00021
50 mm - 75 mm
Yes
on request
c2)
229-8708.00-00022
75 mm - 100 mm
Yes
on request
