[6-281.05]

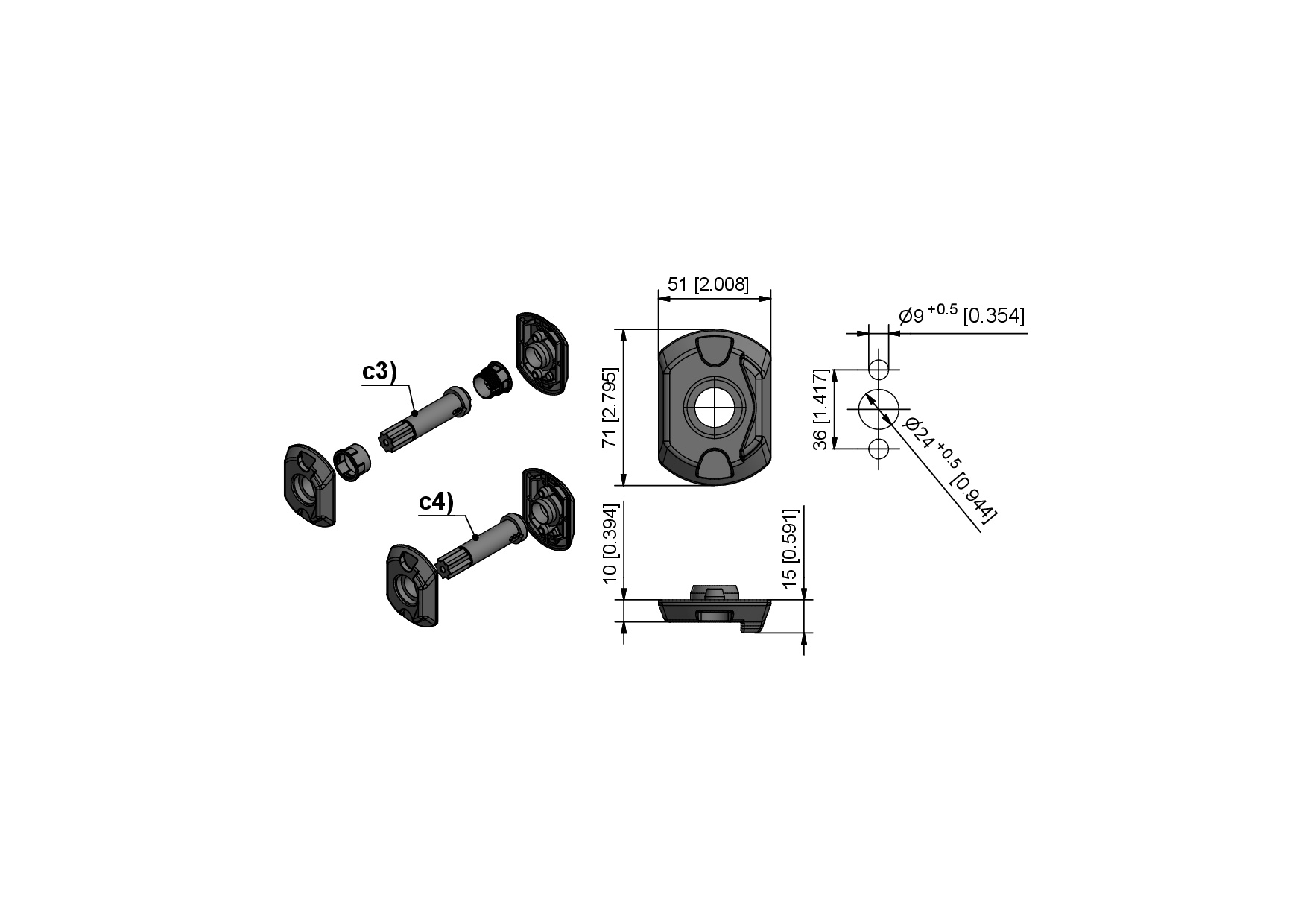

Shaft and Rosettes for HVAC Heavy Duty Latch System
Available versions
Shafts with rosettes inside and outside
Product number
Door-thickness (S)
Door pressure-stable
Delivery Unit
c3)
229-8707.00-00010
25 mm - 32 mm
on request
c3)
229-8707.00-00011
32 mm - 37 mm
on request
c3)
229-8707.00-00012
37 mm - 45 mm
on request
c3)
229-8707.00-00013
45 mm - 50 mm
on request
c3)
229-8707.00-00014
50 mm - 62 mm
on request
c3)
229-8707.00-00015
62 mm - 68 mm
on request
c3)
229-8707.00-00016
68 mm - 75 mm
on request
c3)
229-8707.00-00017
75 mm - 87 mm
on request
c4)
229-8707.00-00020
25 mm - 37.5 mm
Yes
on request
c4)
229-8707.00-00021
37.5 mm - 50 mm
Yes
on request
c4)
229-8707.00-00022
50 mm - 62.5 mm
Yes
on request
c4)
229-8707.00-00023
62.5 mm - 75 mm
Yes
on request
c4)
229-8707.00-00024
75 mm - 87.5 mm
Yes
on request
