HVAC Heavy Duty Latch System for Pre-Door Installation

ICON_IP66
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_UL

Advantages

  • Significantly reduced heat conduction in the handle system through the use of PA.
  • Without lock, with cylinder, insert or compatible with padlock.
  • Different cams for inward or outward swinging doors.
  • IP66 according to DIN EN 60529 by sealing kit (optional).

Material

  • Handle: PA, black
  • Accessories: see respective product system
    External components UL listed

Remarks

Handle outside see product system 6-281.01.
Adapter see produkt system 6-281.02.
Shafts see produkt system 6-281.05.
Cams see product system 6-281.02.
Cutout see product system 6-281.05.

Please select version Product data sheet

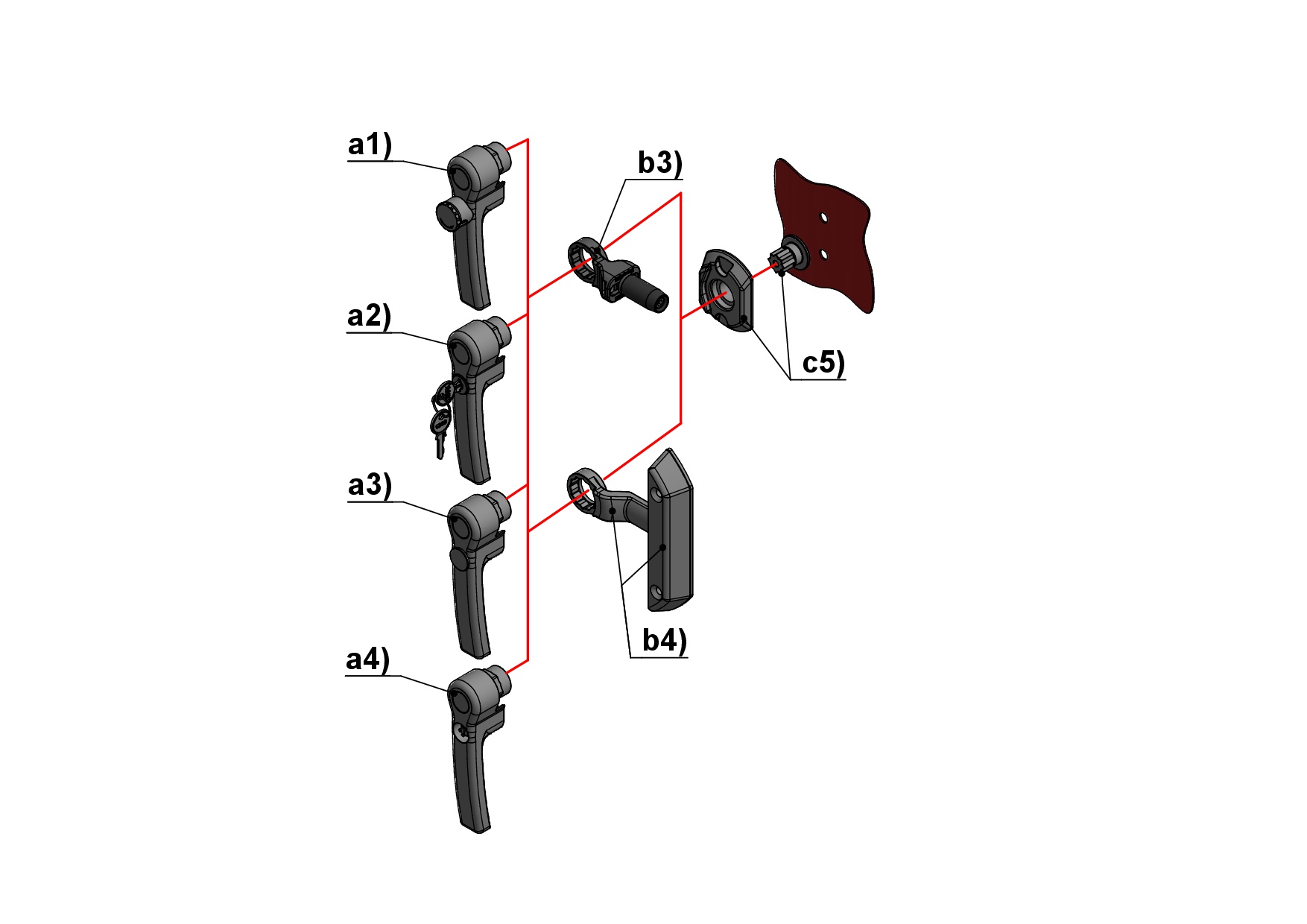

Available versions

Handle outside, for padlock


Product number
Version
Delivery Unit
a1)
232-9601.00-00000
for padlock
on request

Handle outside, with cylinder


Product number
Latching type
Delivery Unit
a2)
232-9603.00-00000
keyed alike DIRAK 1333
on request
a2)
232-9603.00-00001
keyed different
on request

Handle outside, without lock


Product number
Version
Delivery Unit
a3)
232-9604.00-00000
without lock
on request

Handle outside, with insert


Product number
Insert
Delivery Unit
a4)
232-9602.00-00003
Square 8mm
on request
a4)
232-9602.00-00007
Triangular 8mm
on request
