2-Point Latch PHZ with Lock Cover

Advantages

Ergonomically designed horzontal 2-point latch.

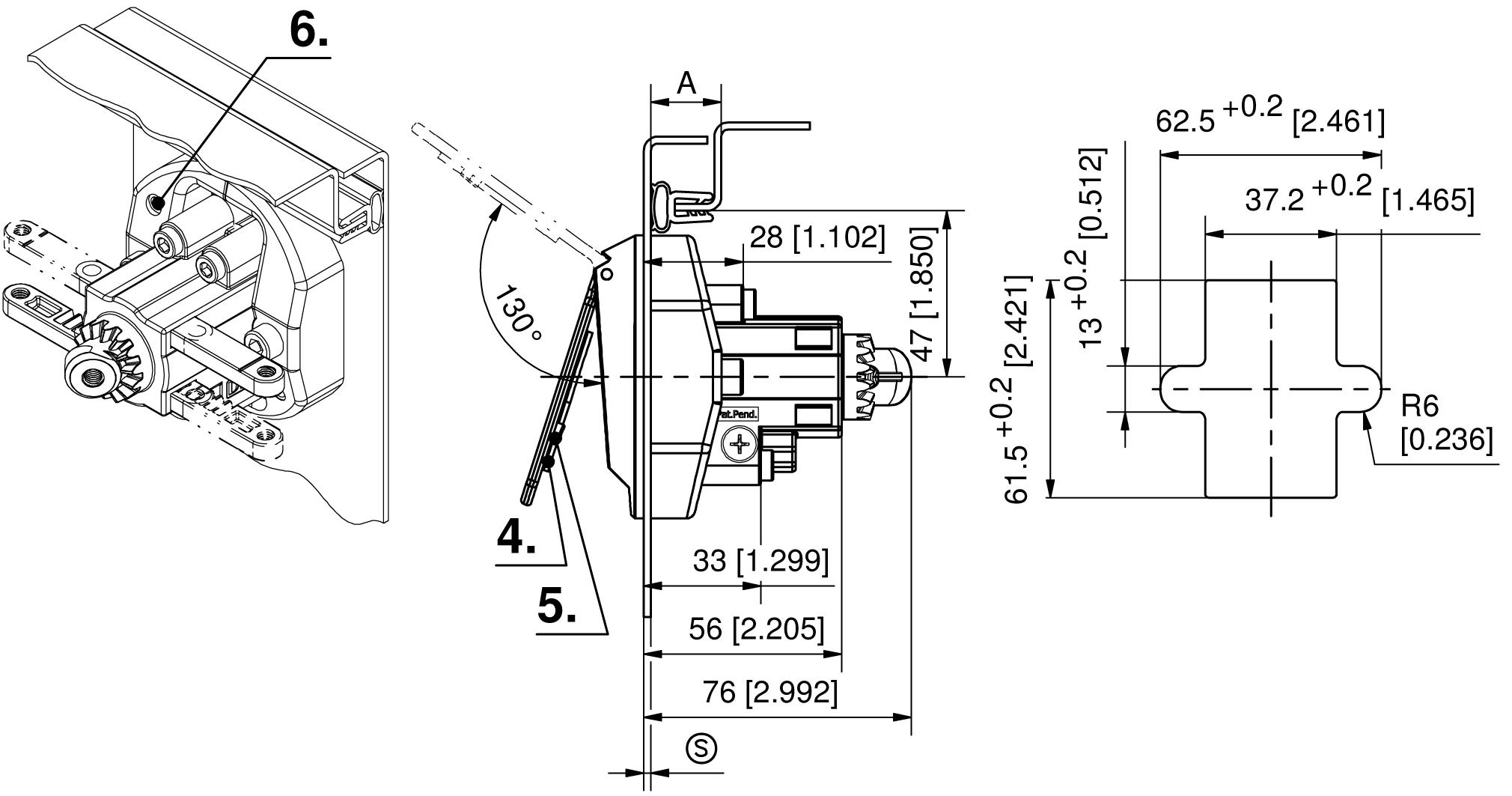

Magnet supported cylinder flap. (5.)
Perfectly suited to control flat rods.
The key inserted into the profile-cylinder opens and closes the lock according to DIN 18252.
Closing- and opening operation 180°.
The key is removable only in the locked position.
Grounding with set screw DIN 914 (incl.). (6.)
IP65 according to DIN EN 60529.(4.)

Material

Housing and slider: zinc die, zinc plated
Clamp: zinc die, untreated
Lock cover: zinc die, matt chrome plated

Other surfaces on request!

O-rings: NBR, black
Seal for cylinder flap: CR
Fastening screws and set screw: steel, zinc plated

Remarks

(S) Door-thickness max. 3mm

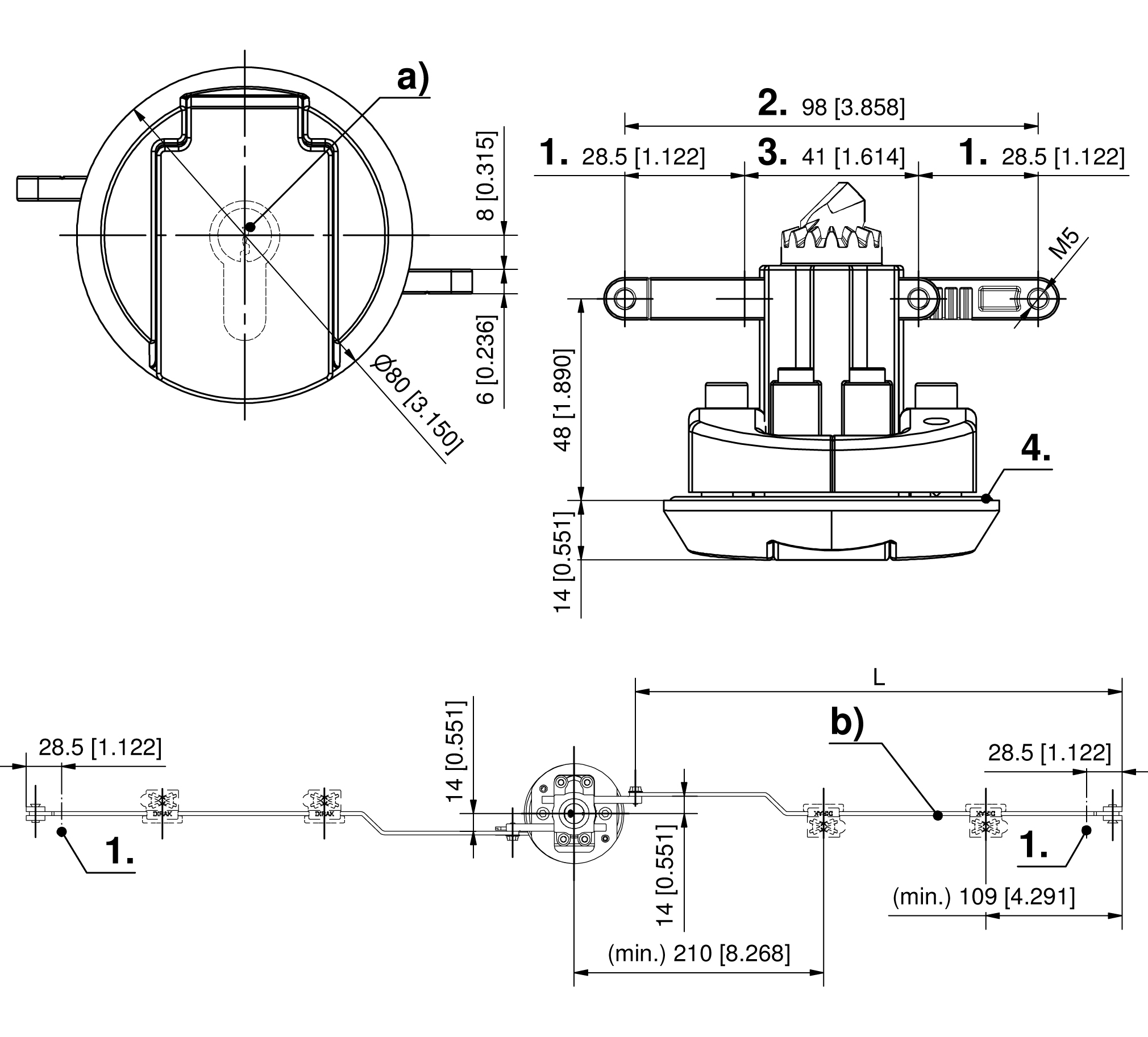

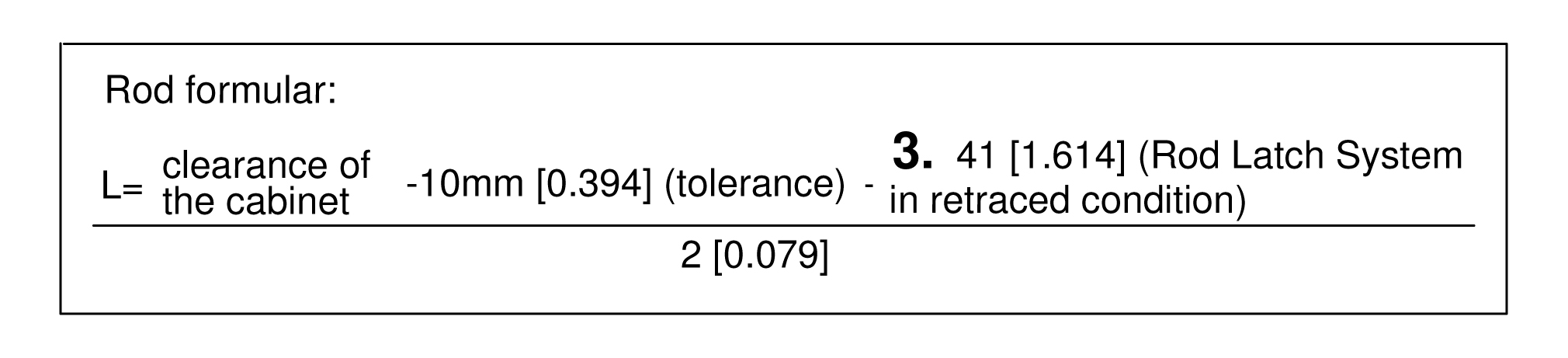

1. stroke 28.5mm
2. extended
3. retracted

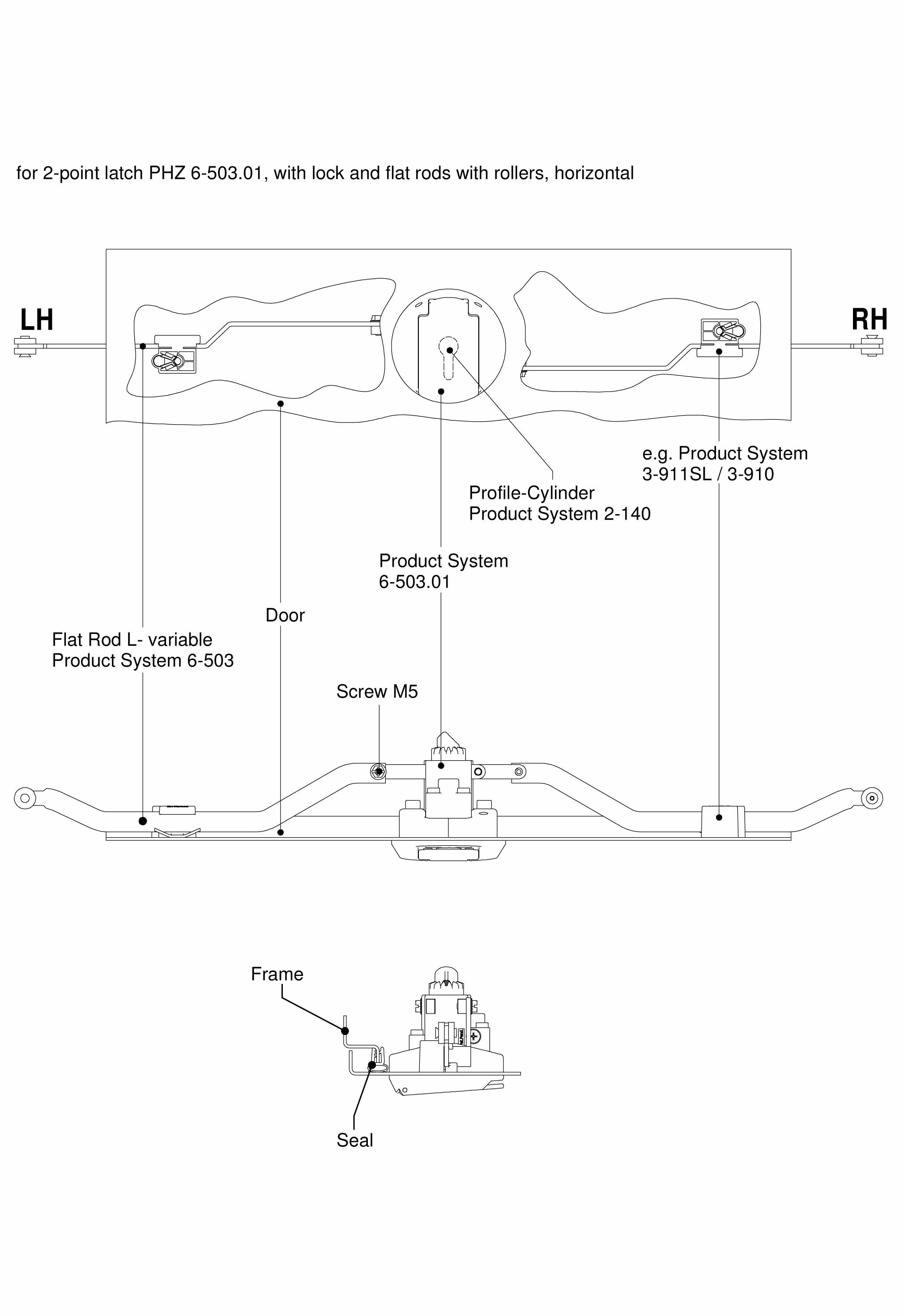

Profile half cylinders and their assembly must be ordered separately.

Version DIN RH (as shown). Version DIN LH on request.
