[1-085.01]

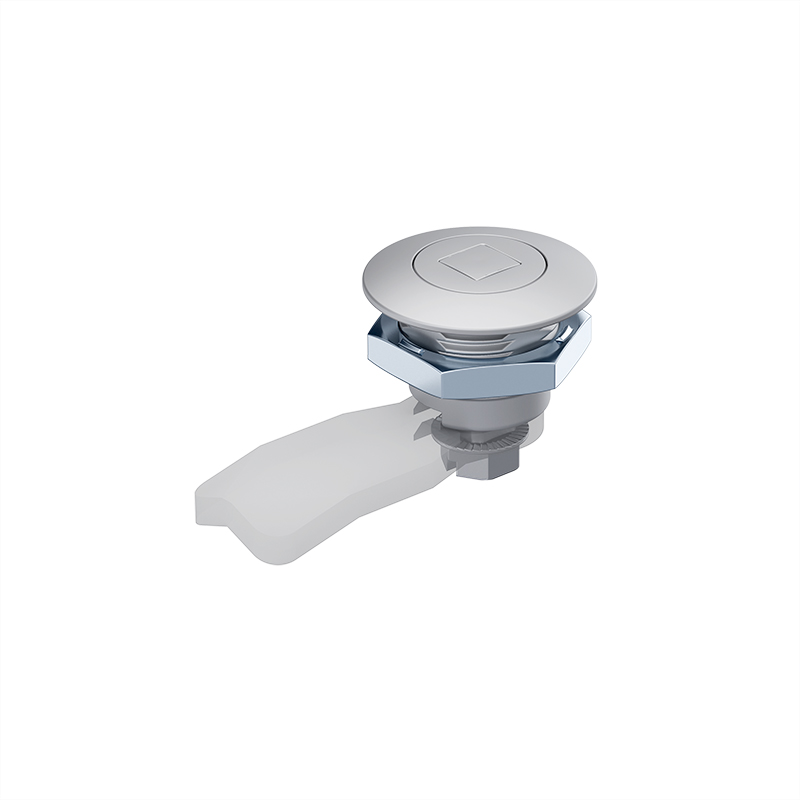

Safety Quarter-Turn Pr20.1 L18

ICON_CUTOUT_20_1
ICON_DIRAK_GEERDET
ICON_IP65
ICON_MUTTER_15Nm
ICON_ROHS
ICON_DIN_61373
ICON_SCHRAUBE_M6 Nm4
ICON_TUERANSCHLAG_LR
1_085_01
E_1-085_01
1_085_01
E_1-085_01

Advantages

  • Flush safety quarter-turn for cutout Pr20.1.
  • Completely closed housing surface.
  • Vibration-proof according to DIN EN 61373 also at high sealing pressure, by built-in spring loaded link.
  • IP65 according to DIN EN 60529.
  • RH / LH application.
  • Grounding by single-sided grounding nut.
  • The quarter-turn can be screwed into the cutout with the pre-assembled cam.

Material

  • Housing, insert and spring loaded link: zinc die, matte chrome plated
  • O-ring and flat external seal: NBR Perbunan, black
  • Nut and grounding nut: zinc die, untreated
  • Serrated lock washer: steel, zinc plated

Remarks

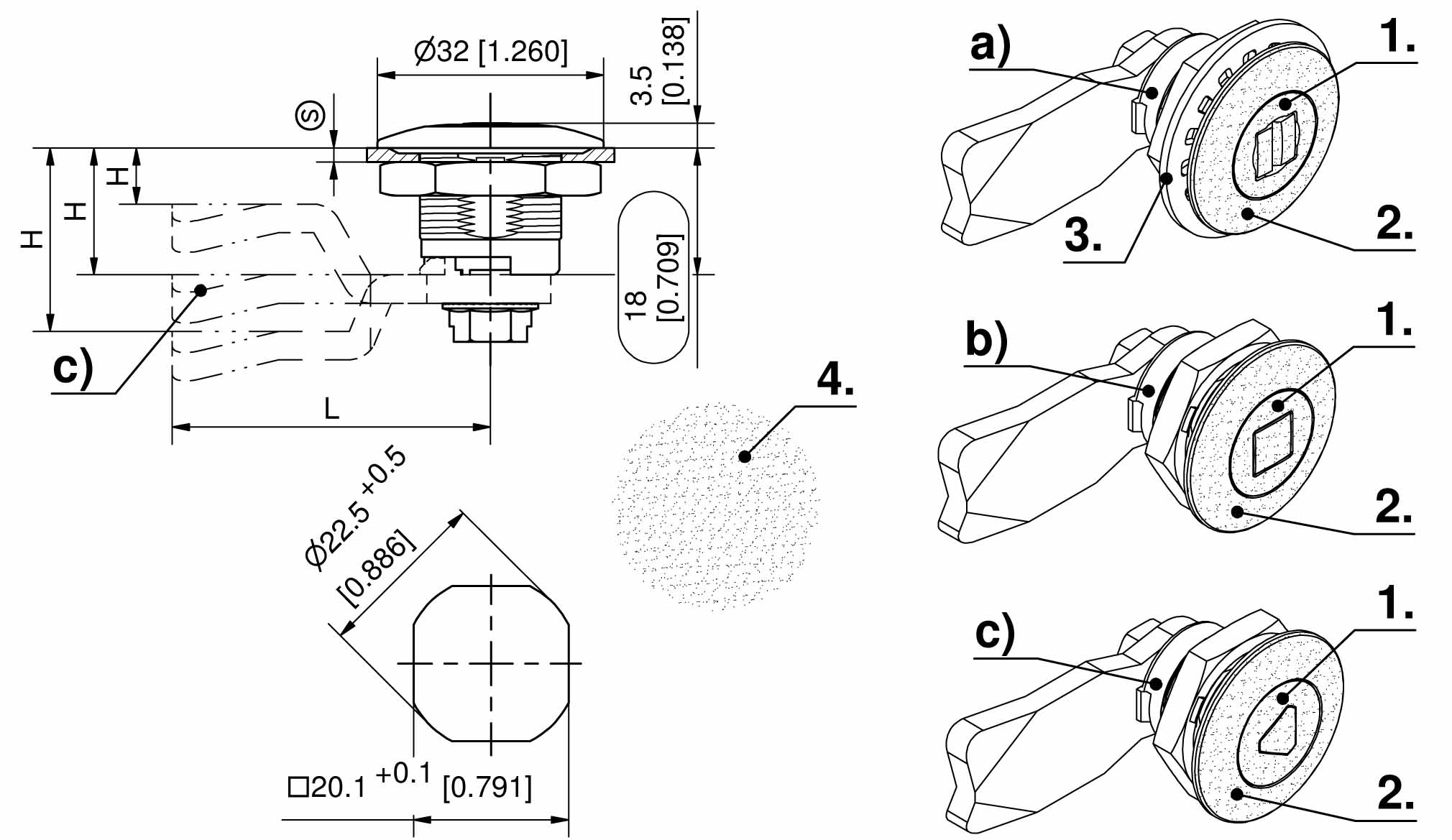

(S) Door-thickness max. 8mm

Completely pre-assembled without cam.

1. spring loaded link
2. housing
3. serrated lock washer
4. flush, closed surface
Please select version Product data sheet

Related Products

Skip product gallery

Accessories

1_102
1-102 Cams L35/45 Steel
1_103

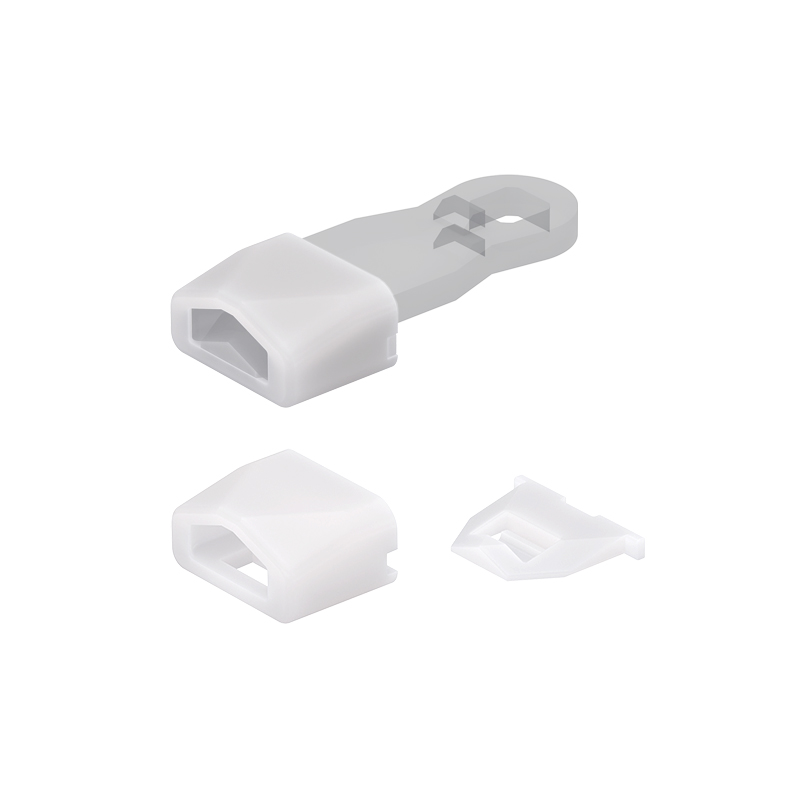

1-103 Slide Shoe for Cams
1_262

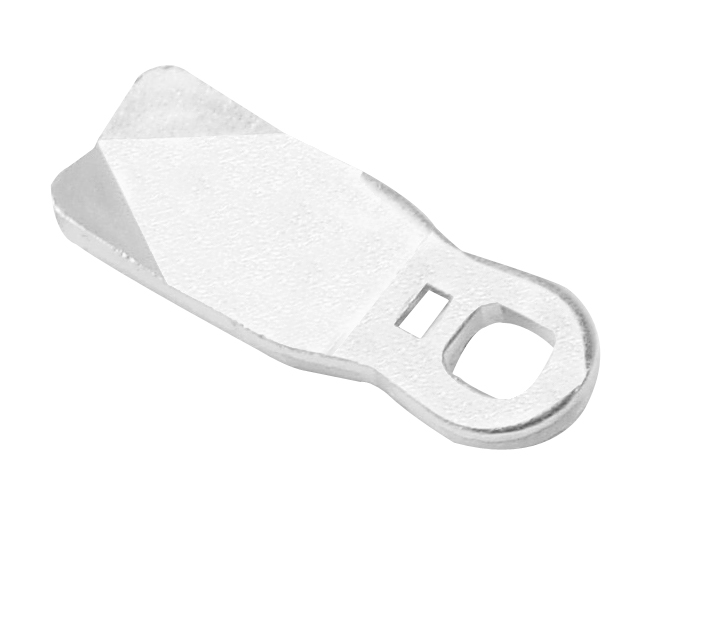

1-262 Cams variable, steel, zinc plated
1_350

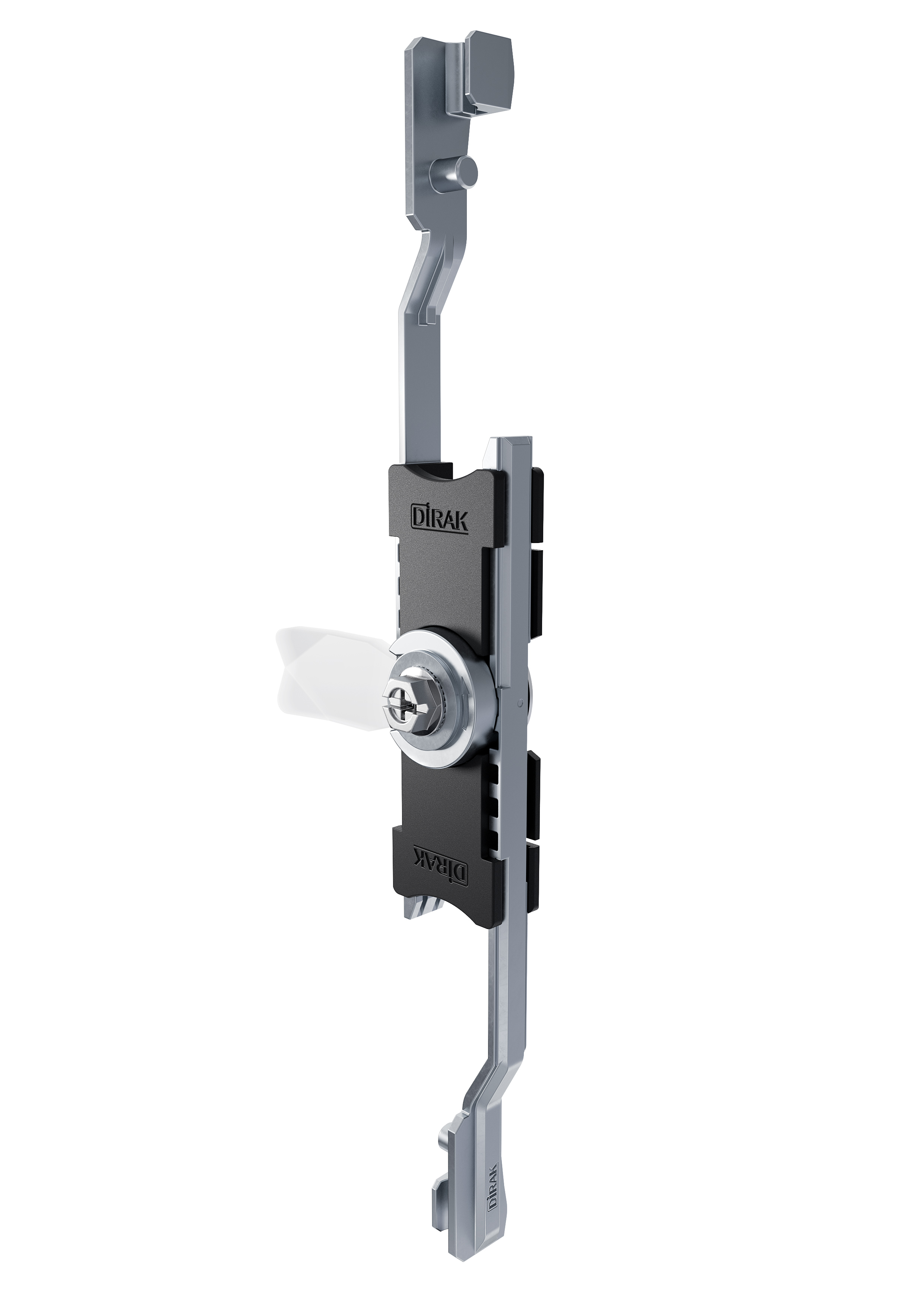

1-350 Rod Latch for Quarter-Turns L18 Pr20.1 RS/FS
6_100

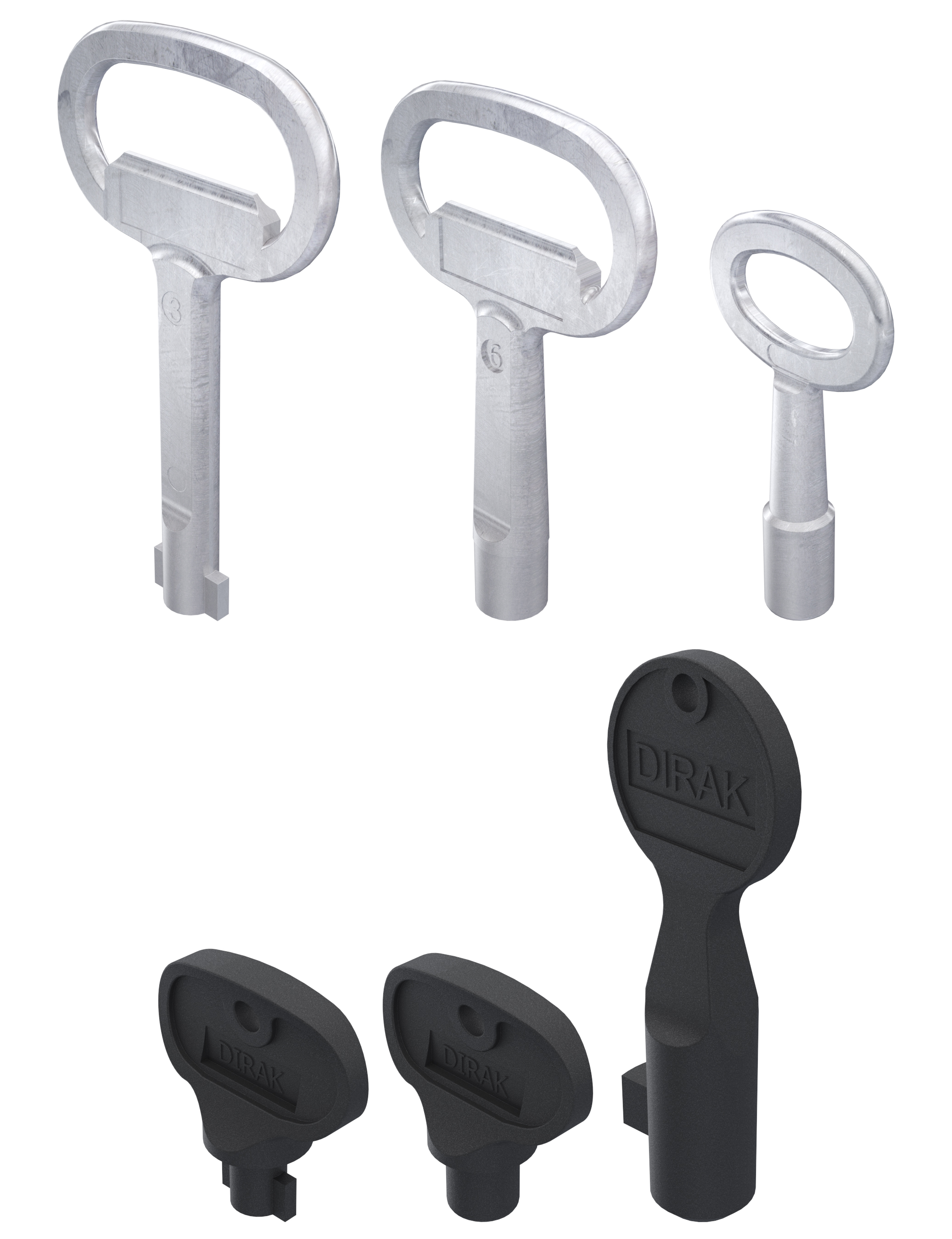

6-100 Wrenches and Keys
6_101
6-101 Universal key
6_105

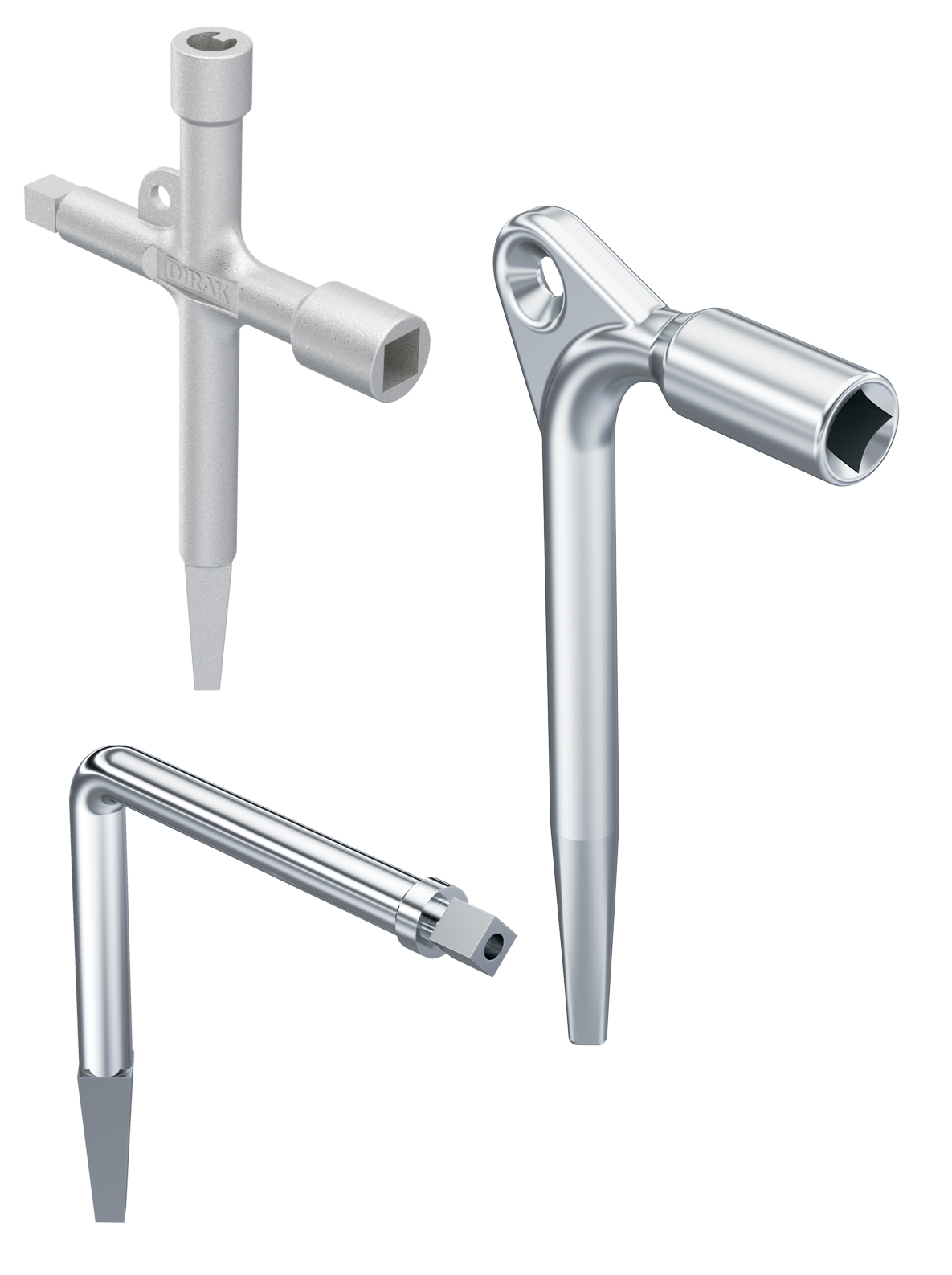

6-105 Keys for the Railway Sector
MLA_1_103

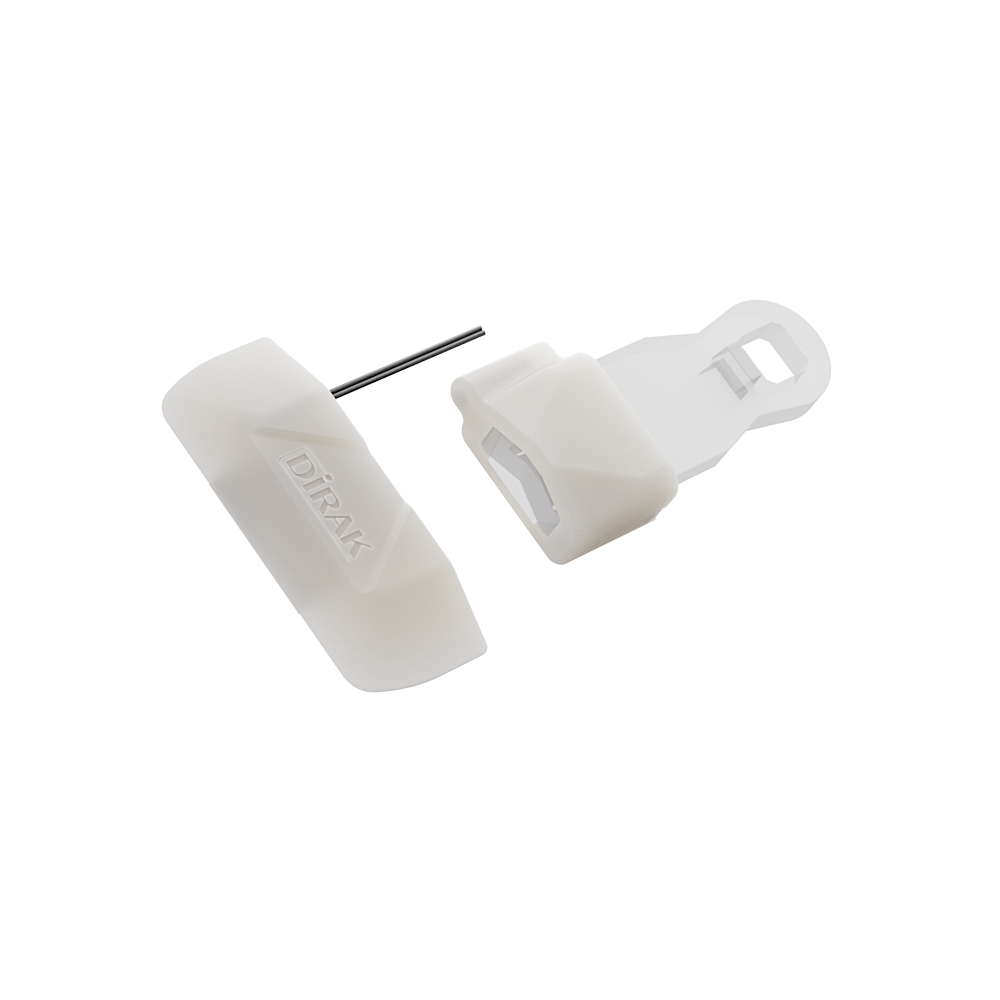

MLA 1-103 MLA Door Contact
