Quarter-Turn with Square Threaded Rod Pr20.1

ICON_CUTOUT_20_1
ICON_IP65
ICON_MUTTER_15Nm
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_DIRAK_GEERDET
1_100_02
E_1-100_02
1_100_02
E_1-100_02

Advantages

  • Flush quarter-turn for cutout Pr.20.1.
  • Square threaded rod 40mm.
  • Adjustability of the cam by the catch for standard cams 2-151.02 and 3-point cam with H-dimension adjustment 2-151.01.
  • IP65 according to DIN EN 60529.
  • RH / LH application.
  • Grounding by grounding clip or grounding nut.

Material

  • Housing and insert: zinc die, chrome plated
  • Nut: steel, zinc plated
  • Grounding nut: zinc die, zinc plated
  • Grounding clip: stainless steel
  • O-ring: NBR

Remarks

(S) Door-thickness max. 8mm

Pre-assembled without cam.

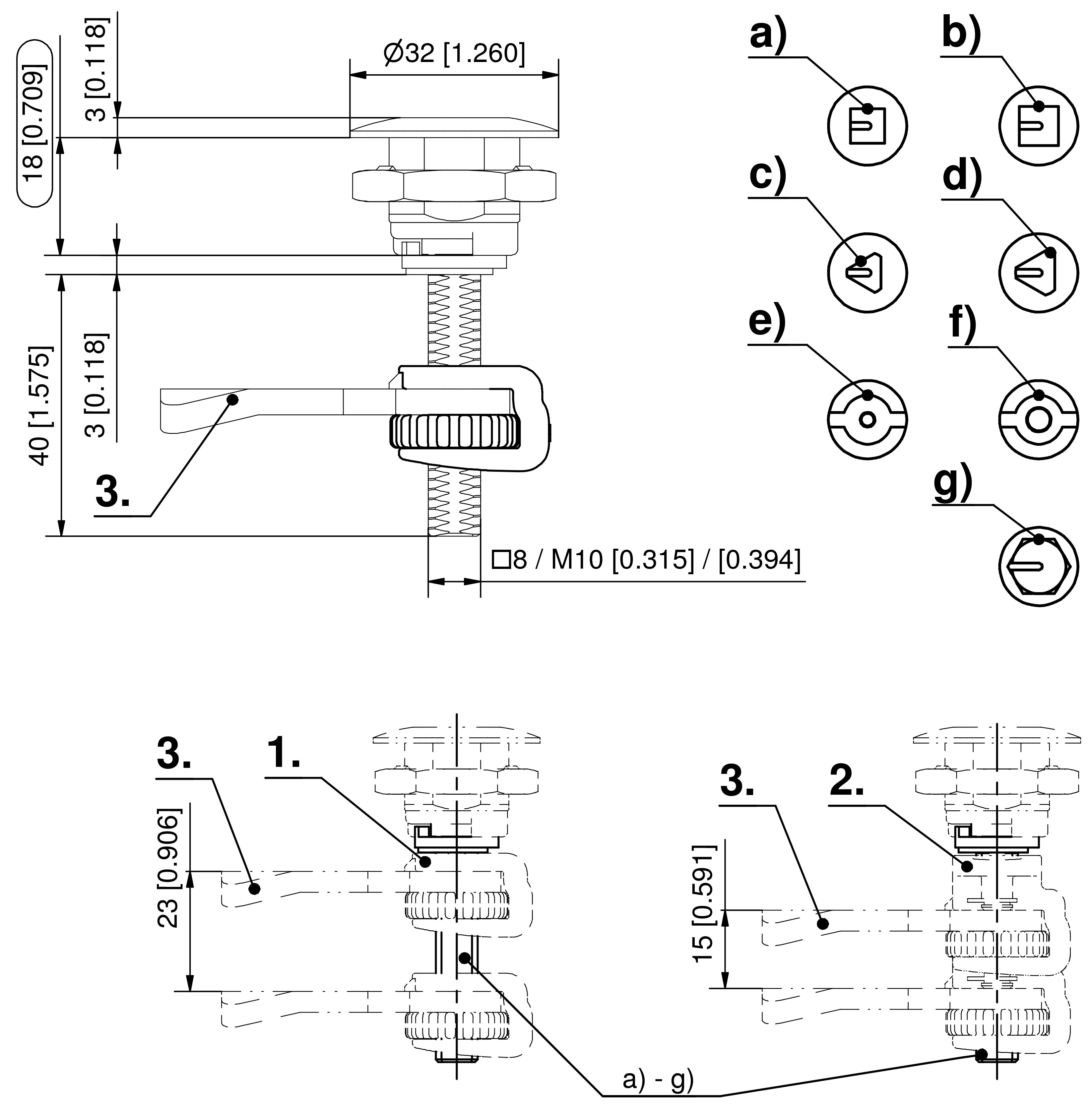

1. 2-151.02
2. 2-151.01
3. cam
