[1-100.03]

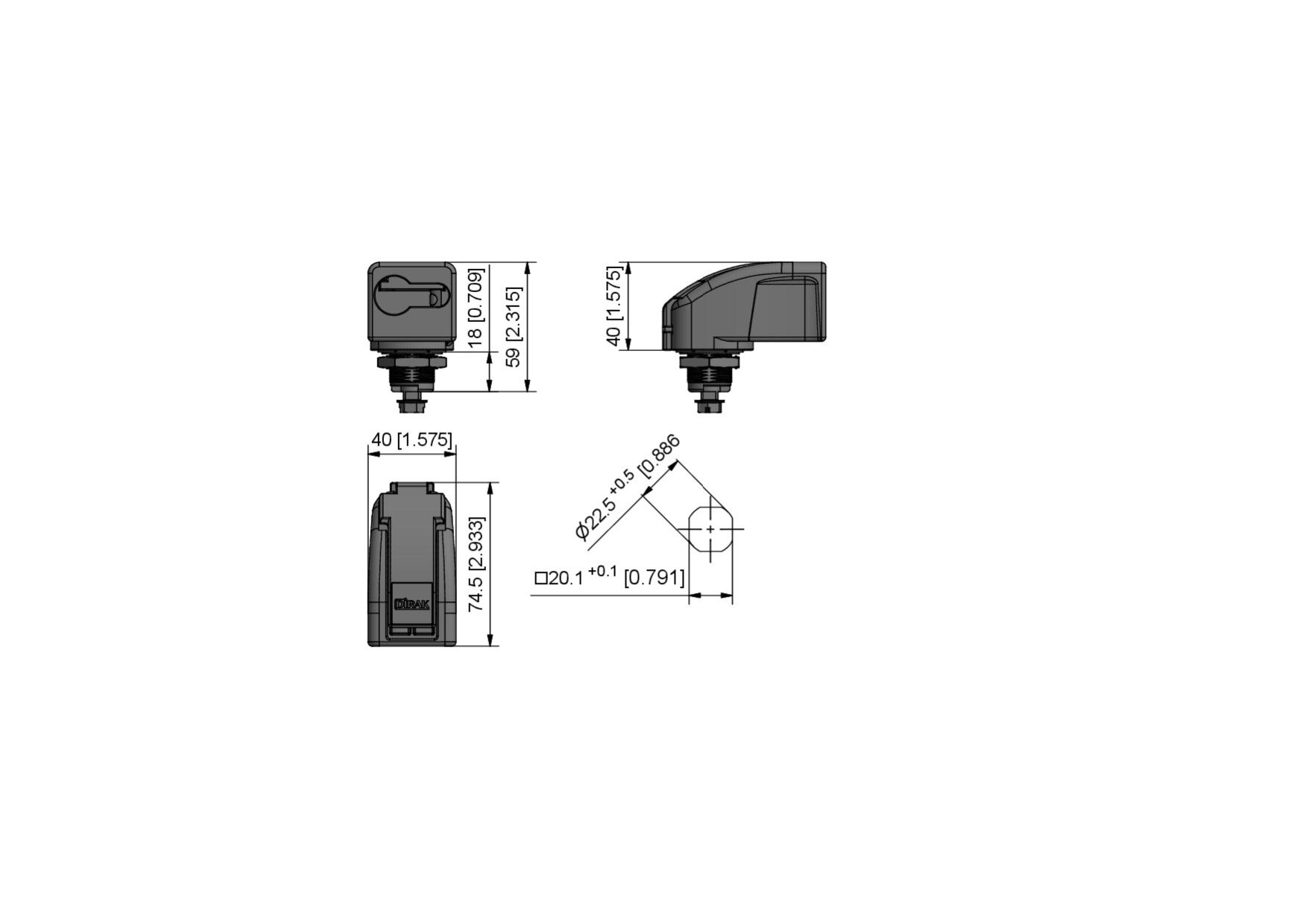

Quarter-Turn for Profile-Cylinder Pr20.1 L18

ICON_CUTOUT_20_1
ICON_IP65
ICON_MUTTER_15Nm
ICON_ROHS
ICON_SCHRAUBE_M6 Nm4
ICON_TUERANSCHLAG_LR
ICON_PZ_DIN_18252
ICON_RUNDSTANGE

Advantages

  • For cutout Pr20.1.
  • IP65 according to DIN EN 60529.
  • RH / LH application.
  • Lockable with profile-cylinder according to DIN 18252.

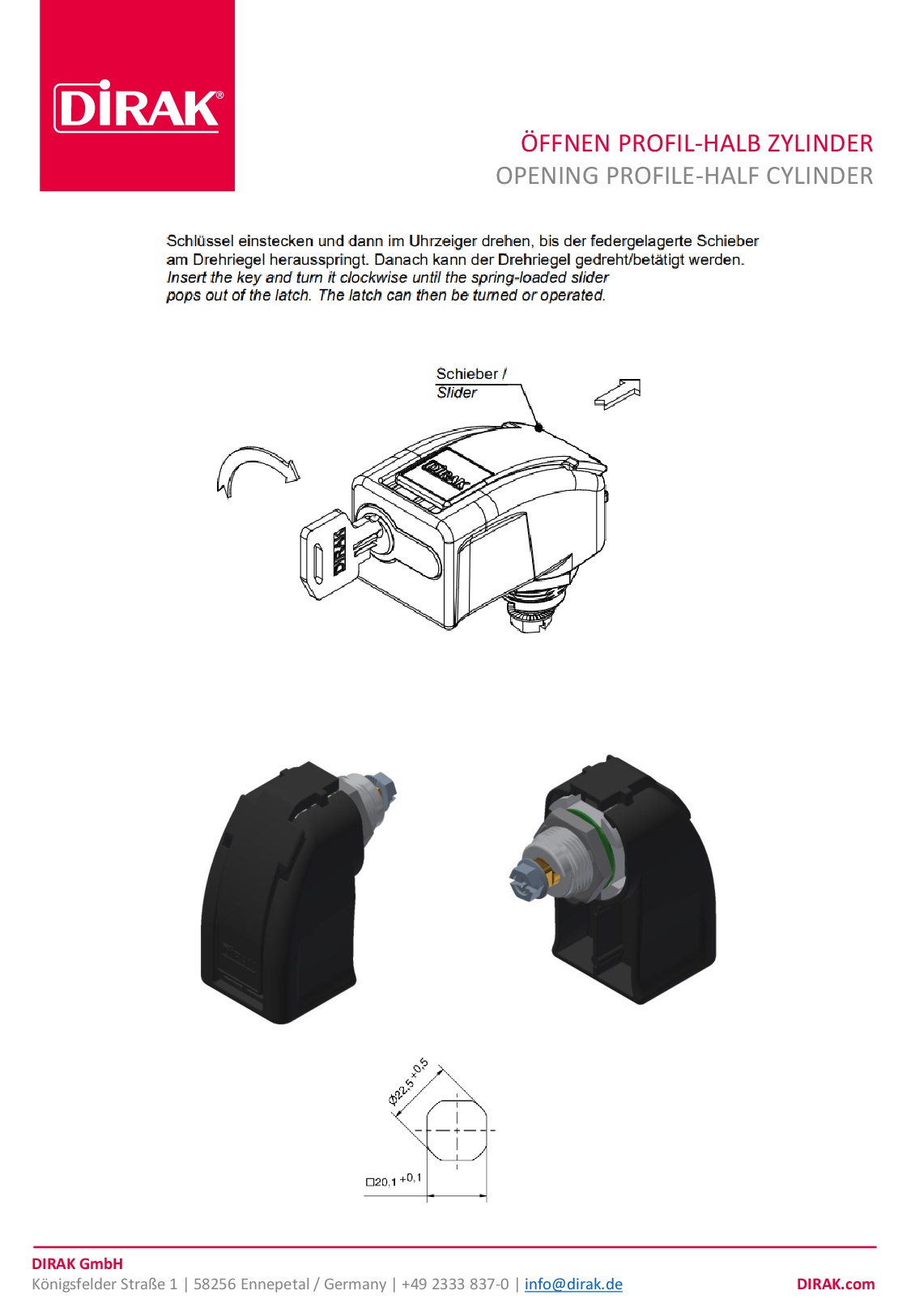

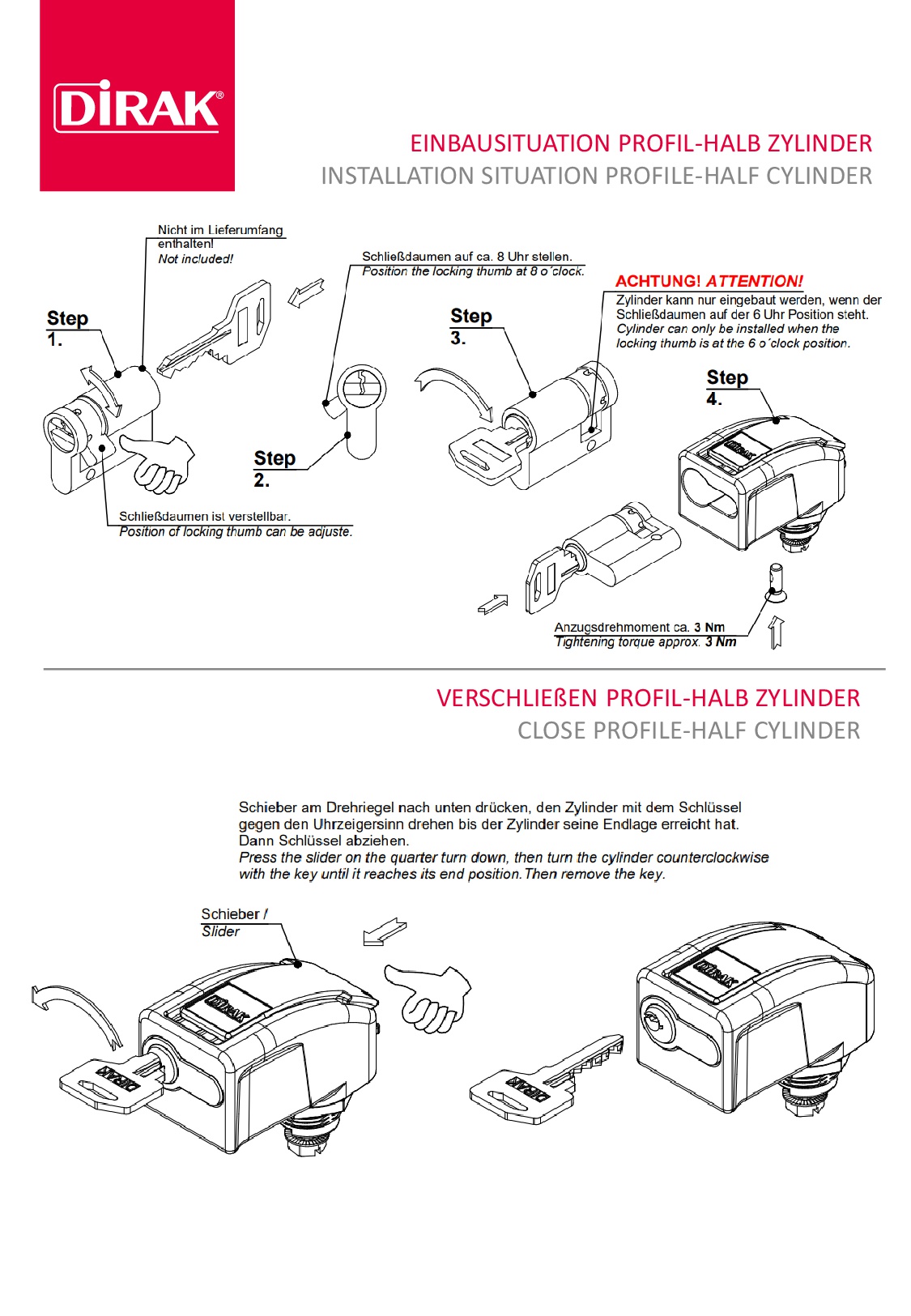

  • The quarter-turn can be screwed into the cutout with assambled cam.
  • Can be installed vertically or horizontally.
  • Modular design, other housing lengths, cutouts upon request.

Material

  • Housing, handle: Alu die-cast, black
  • Insert: brass MS58
  • Screw: steel, zinc plated
  • Grounding nut: zinc die, untreated

Remarks

door-thickness max. 8mm

Please configure the quarter-turn with a cam.

Quarter-Turn is delivered without profile-cylinder
Only for 30/10mm profile-cylinder according to DIN 18252



Please select version Product data sheet

Available versions

Quarter-Turn for Profile-Cylinder

Product number
Latching type
Version
Installation type
Delivery Unit
200-9496.00-00000
for PHZ
RH / LH
screw-on
1 pc.
