[1-100.04]

Quarter-Turn for ILOQ Pr20.1 L18

ICON_CUTOUT_20_1
ICON_IP65
ICON_MUTTER_15Nm
ICON_ROHS
ICON_SCHRAUBE_M6 Nm4
ICON_TUERANSCHLAG_LR
ICON_PZ_DIN_18252
ICON_RUNDSTANGE

Advantages

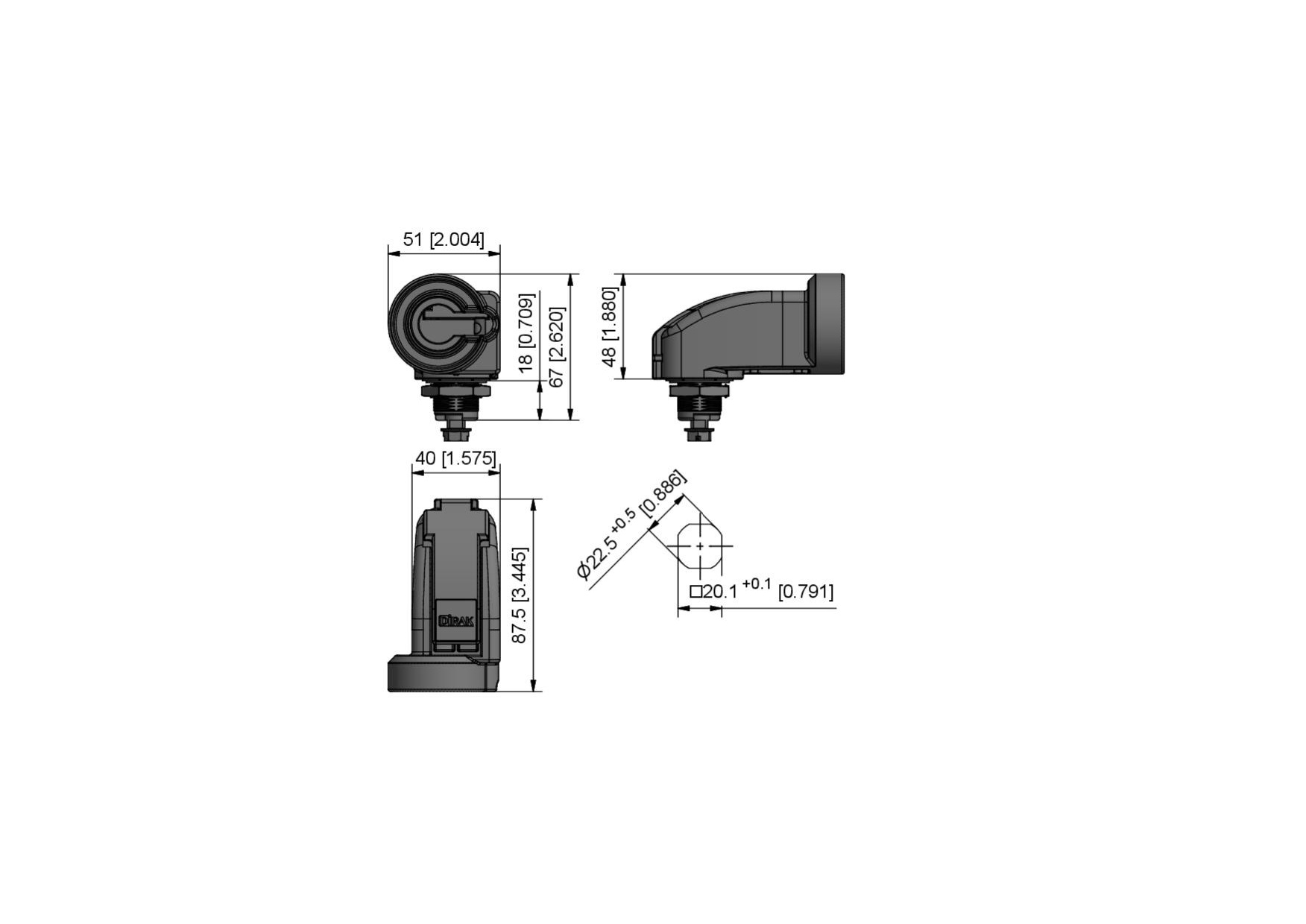

  • For cutout Pr20.1.
  • IP65 according to DIN EN 60529.
  • RH / LH application.

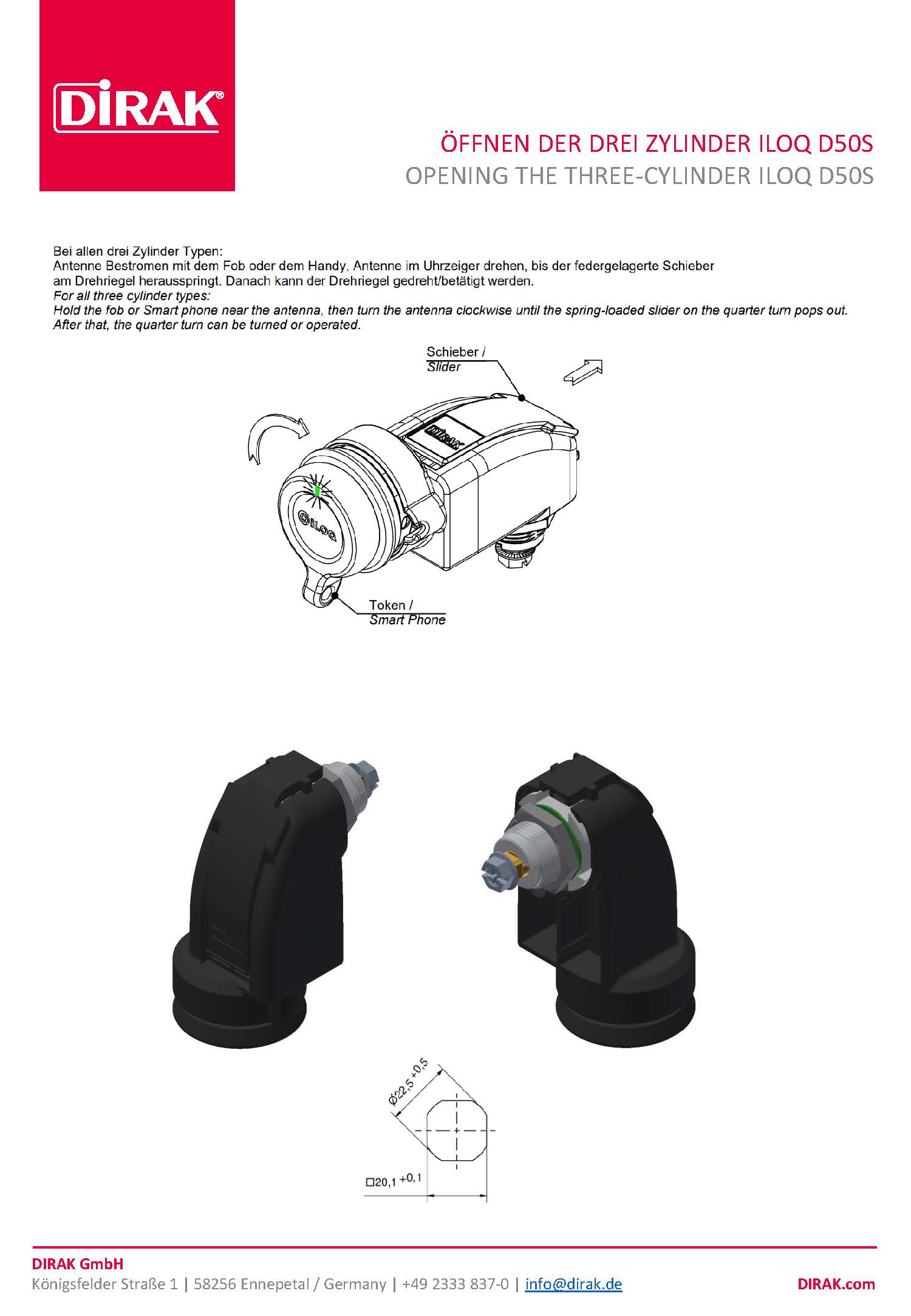

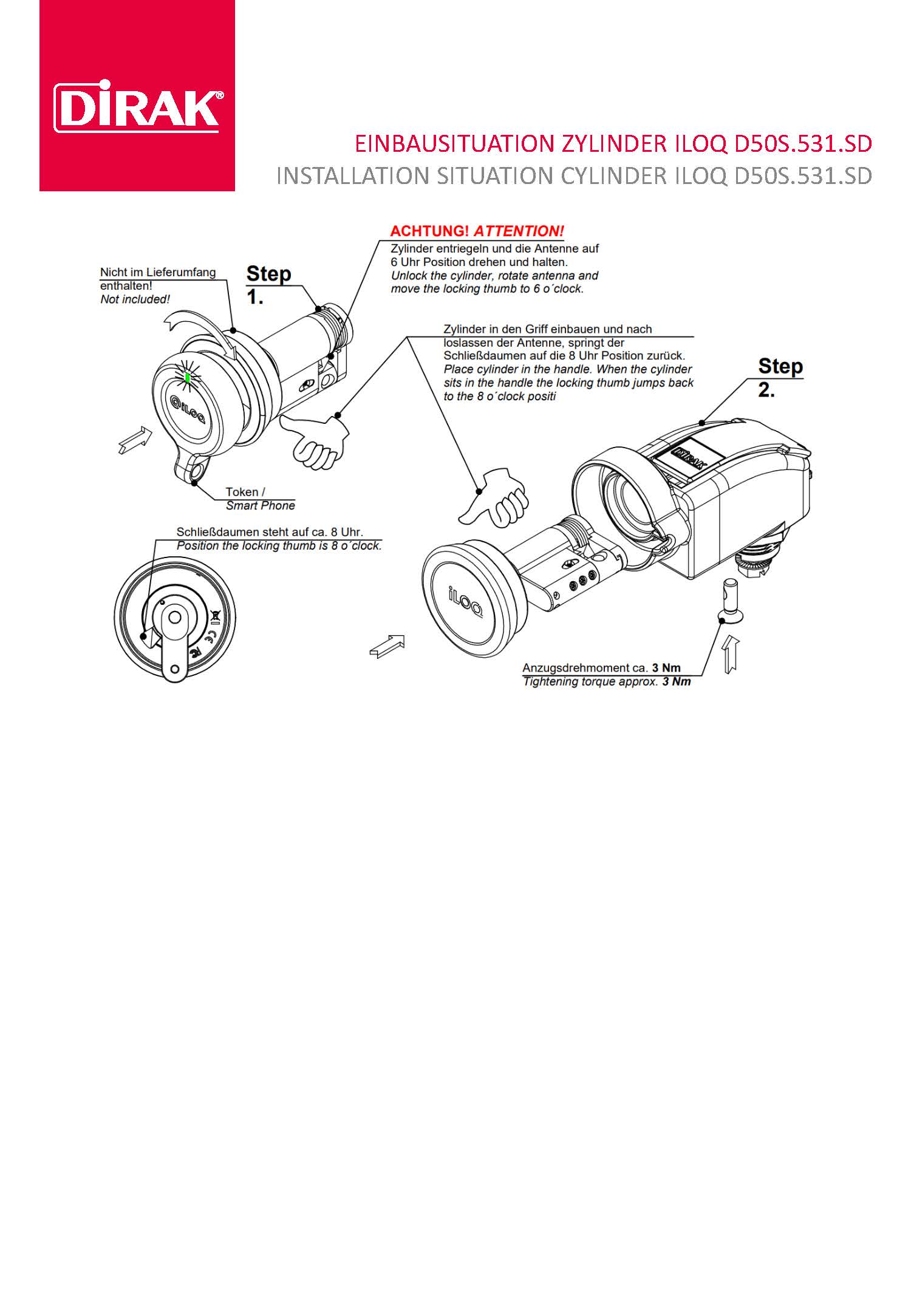

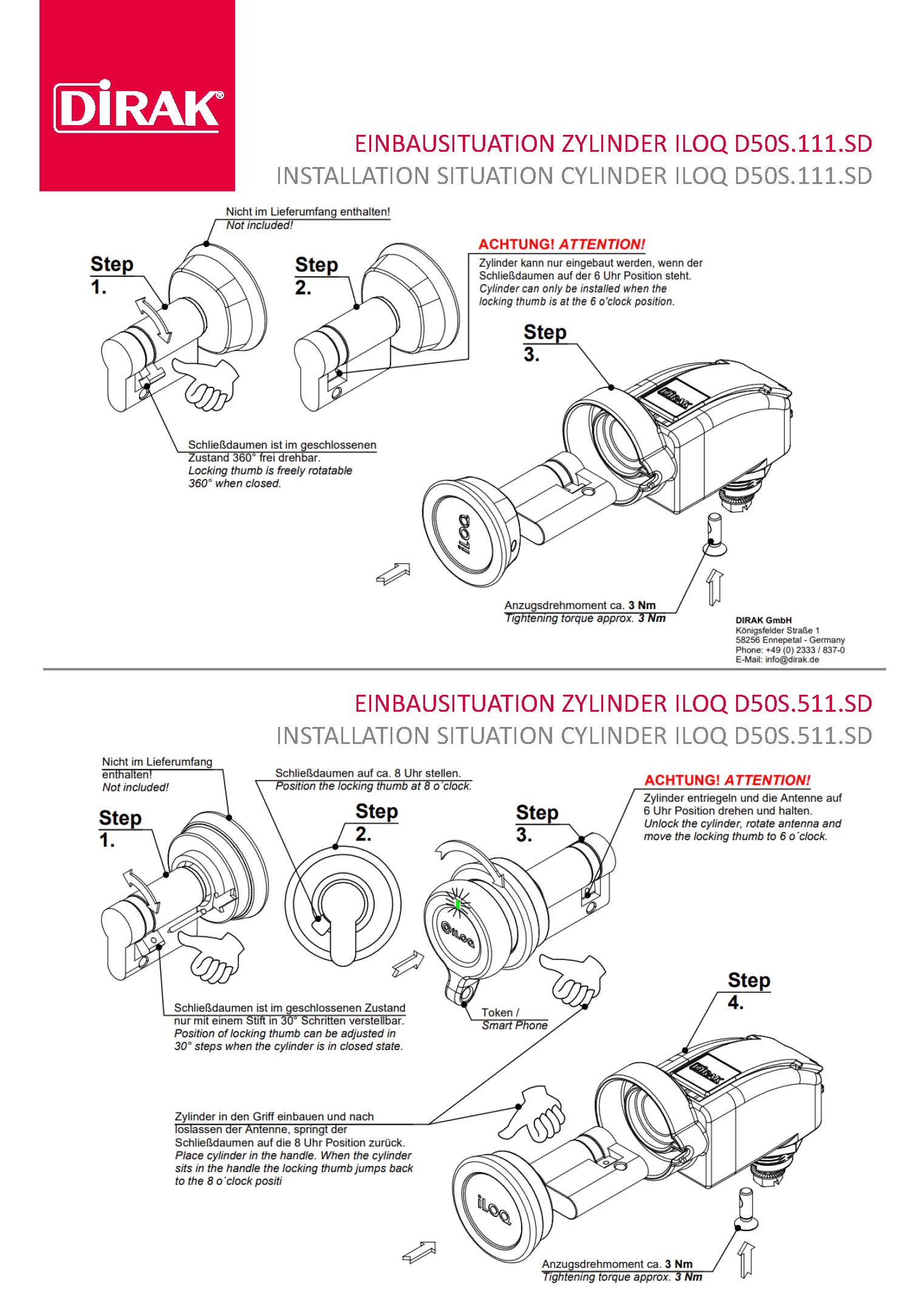

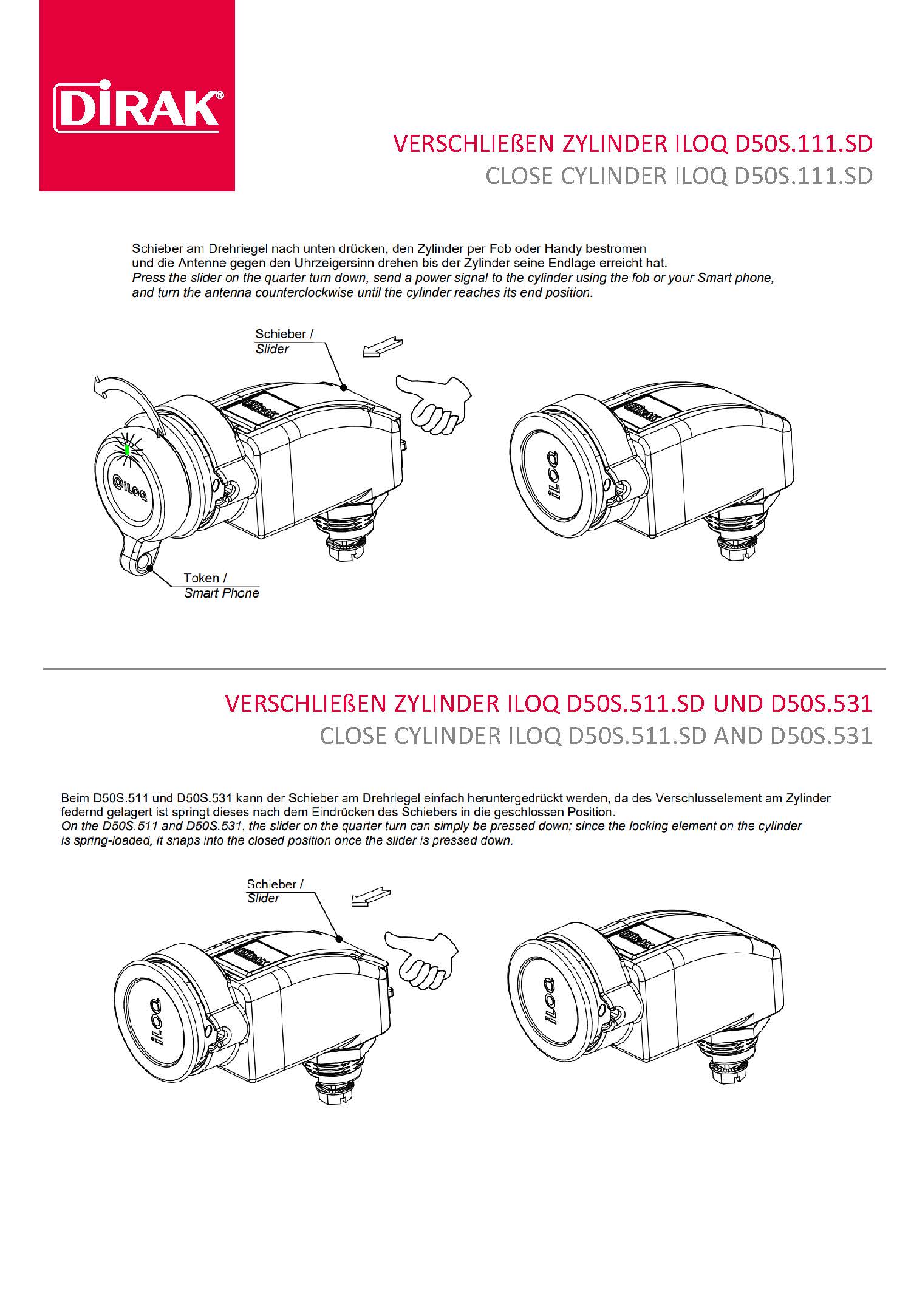

  • Useable with ILOQ cylinder D50s.111; D50s.511; D50s.531.
  • The quarter-turn can be screwed into the cutout with assambled cam.
  • Can be installed vertically or horizontally.
  • Modular design, other housing lengths, cutouts upon request.

Material

  • Housing, handle: Alu die-cast, black
  • Insert: brass MS58
  • Screw: steel, zinc plated
  • Grounding nut: zinc die, untreated

Remarks

door-thickness max. 8mm

Please configure the quarter-turn with a cam.

Please select version Product data sheet

Available versions

Quarter-Turn for ILOQ

Product number
Latching type
Version
Installation type
Delivery Unit
308-9014.00-00000
ILOQ
RH / LH
screw-on
1 pc.
