Quarter-Turn SOFTLINE Pr20.1 L18

ICON_CUTOUT_20_1
ICON_MUTTER_PA_4Nm
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_DIRAK_GEERDET
DIRAK_IP_ERGAENZUNG
1_107
E_1-107
1_107
E_1-107

Advantages

  • For cutout Pr20.1.
  • With integrated finger pull.
  • IP65/67 according to DIN EN (optional).
  • RH / LH application by rotatable bottom part.
  • Grounding by grounding clip.
  • On request parts can be assembled.
  • The quarter-turn can be screwed into the cutout with the pre-assembled cam.

Material

  • Housing: PA6, black
  • Bottom: zinc die, zinc plated

Remarks

(S) Door-thickness max. 8mm

Please configure the Quarter-turn with insert and cam.

Note: wing or star knob not usable.

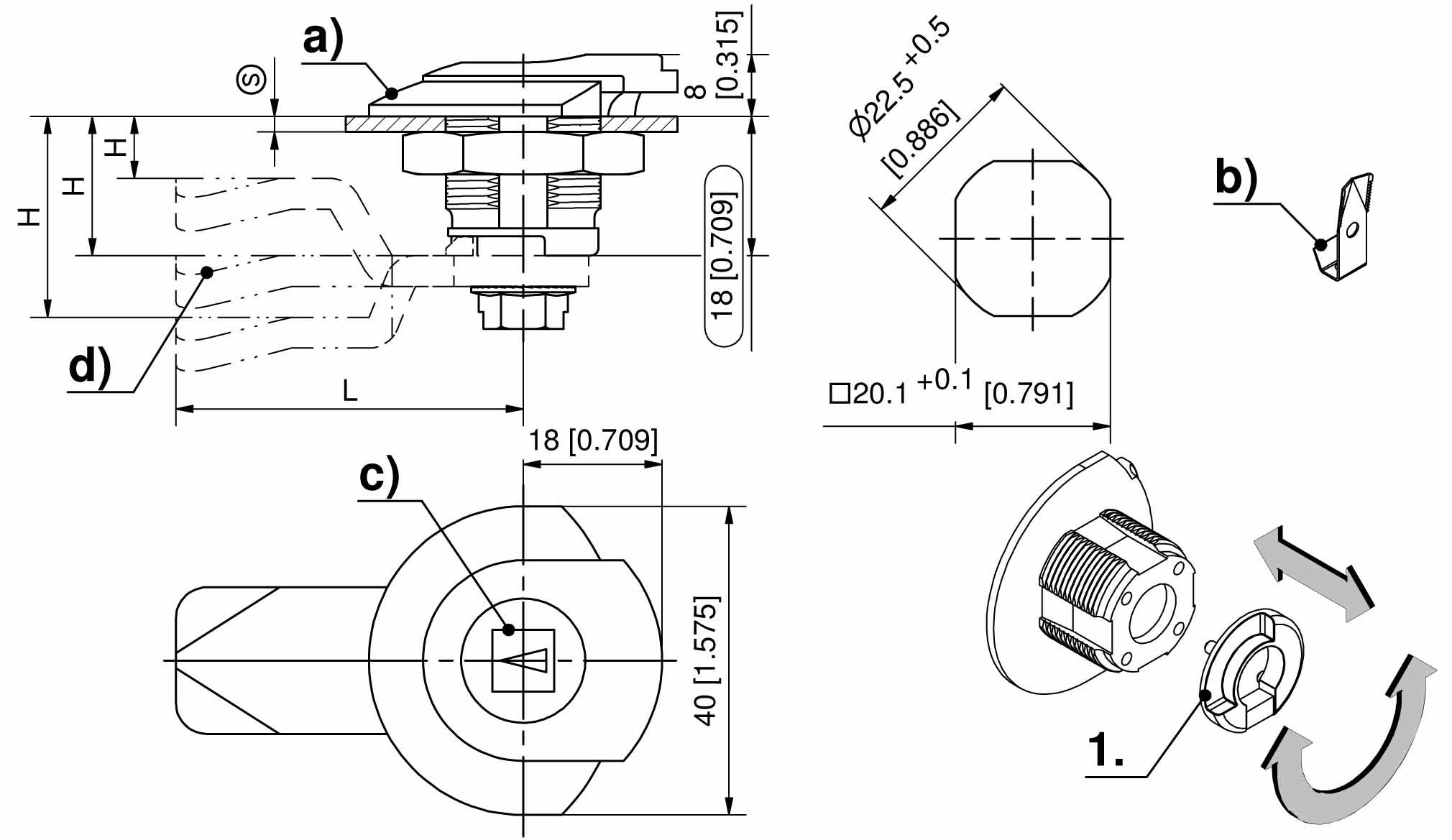

1. rotatable bottom
Please select version Product data sheet

Available versions

Quarter-Turn housing


Product number
Housing length
Grounding type
Installation type
Delivery Unit
a)
100-9007.00-00000
18 mm
-
screw-on
10 pcs.
b)
100-9008.00-00000
18 mm
Grounding clip
screw-on
10 pcs.
