Cylinder Quarter-Turn Polyamide Pr20.1 L18

ICON_CUTOUT_20_1
ICON_MUTTER_PA_4Nm
ICON_ROHS
ICON_TUERANSCHLAG_LR
DIRAK_IP_ERGAENZUNG
1_121
E_1-121
1_121

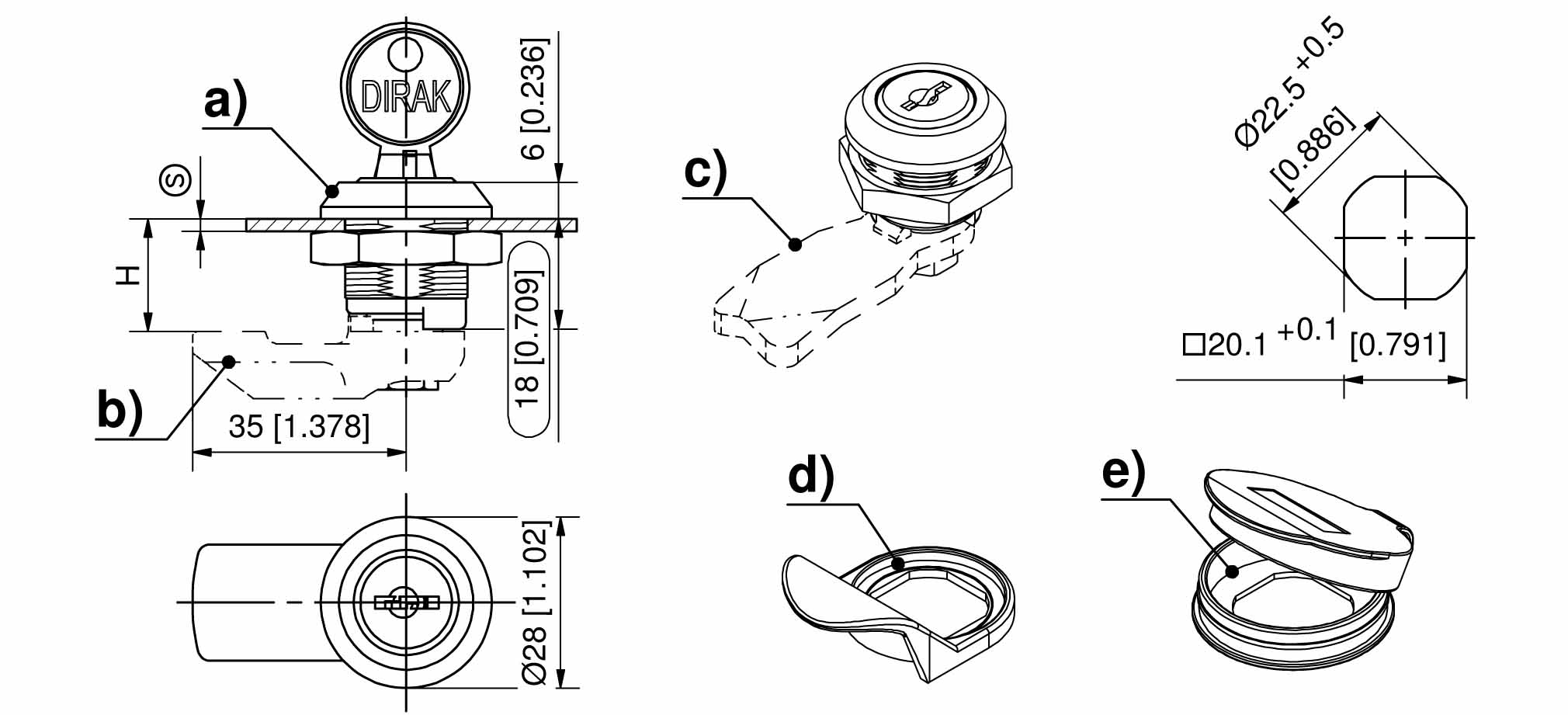

E_1-121

Advantages

  • For cutout Pr20.1.
  • Protective insulated and vibration-proof.
  • IP65 according to DIN EN 60529 by dust cap 200-4101 (optional).
  • IP65/67 according to DIN EN 60529 by dust cap 200-4103 (optional).
  • RH / LH application.
  • The quarter-turn can be screwed into the cutout with the pre-assembled cam.
  • 2 keys included in scope of delivery.

Material

  • Housing: PA, black
  • Nut: PA, black, steel, zinc plated or stainless steel

Remarks

(S) Door-thickness max. 8mm

Completely pre-assembled without cam.

Slide shoe and MLA door contact only in conjunction with cams 1-102.
Please select version Product data sheet

Related Products

Skip product gallery

Accessories

1_095
200-5318.00-00000 PA cam, L35mm / H18mm
1_095
200-5320.00-00000 PA cam, L35mm / H20mm
1_095
200-5322.00-00000 PA cam, L35mm / H22mm
1_095
200-5325.00-00000 PA cam, L35mm / H25mm
1_095
200-5328.00-00000 PA cam, L35mm / H28mm
1_102
1-102 Cams L35/45 Steel
1_103
1-103 Slide Shoe for Cams
1_260
1-260 Hooked Cam, steel, zinc plated
1_270_01
1-270.01 Finger Pull for Quarter-Turn Pr20.1
1_350
1-350 Rod Latch for Quarter-Turns L18 Pr20.1 RS/FS
MLA_1_103
MLA 1-103 MLA Door Contact
