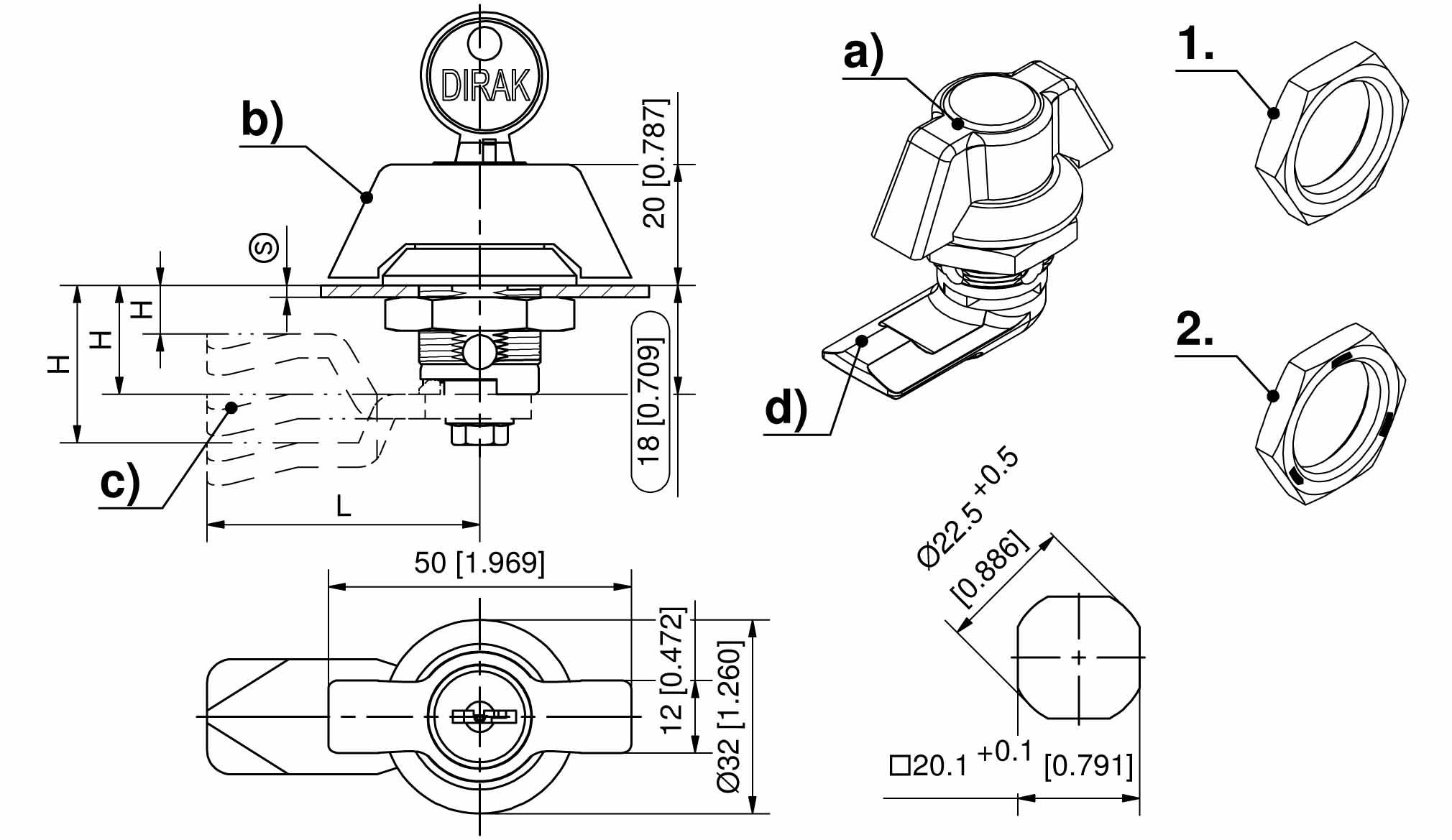

Quarter-Turn with Wing Knob Pr20.1 L18

ICON_CUTOUT_20_1
ICON_MUTTER_15Nm
ICON_MUTTER_PA_4Nm
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_IP65
ICON_DIRAK_GEERDET
1_130
E_1-130
1_130
E_1-130

Advantages

  • For cutout Pr20.1.
  • With and without cylinder.
  • Version without cylinder IP65 according to DIN EN 60529.
  • RH / LH application.
  • Grounding by grounding nut.
  • On request parts can be assembled.
  • A pre-assembled quarter-turn can be installed in the cutout.

Material

Version a) and b)
  • Housing: zinc die, black
  • Cylinder: zinc die with stainless steel dust-shutter
  • Wing knob: PA, black with zinc die core
  • Plug: PA, black
  • Grounding nut: zinc die
Version a1) and b1)
  • Housing, cylinder, wing knob and plug: PA, black
  • Nut: zinc die or PA

Remarks

(S) Door-thickness max. 8mm

1. nut
2. grounding nut

Please configure the quarter-turn with a cam.
Please select version Product data sheet
