Quarter-Turn with Drip Handle Pr20.1 L18

ICON_CUTOUT_20_1
ICON_DIRAK_GEERDET
ICON_MUTTER_15Nm
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_IP65
ICON_IP54
1_135
E_1-135
1_135
E_1-135

Advantages

  • Versions without cylinder are water and dust tight according to IP65 DIN EN 60529.
  • Versions with cylinder are water and dust tight according to IP54 DIN EN 60529.
  • RH / LH application.
  • Grounding by grounding nut.
  • On request parts can be assembled.
  • A pre-assembled quarter-turn can be installed in the cutout.

Material

  • Drip handle: PA, black with zinc die core
  • Housing: zinc die, chrome plated
  • Cylinder: PA, black or zinc die, chrome plated
  • Plug: PA, black
  • Grounding nut: zinc die

Remarks

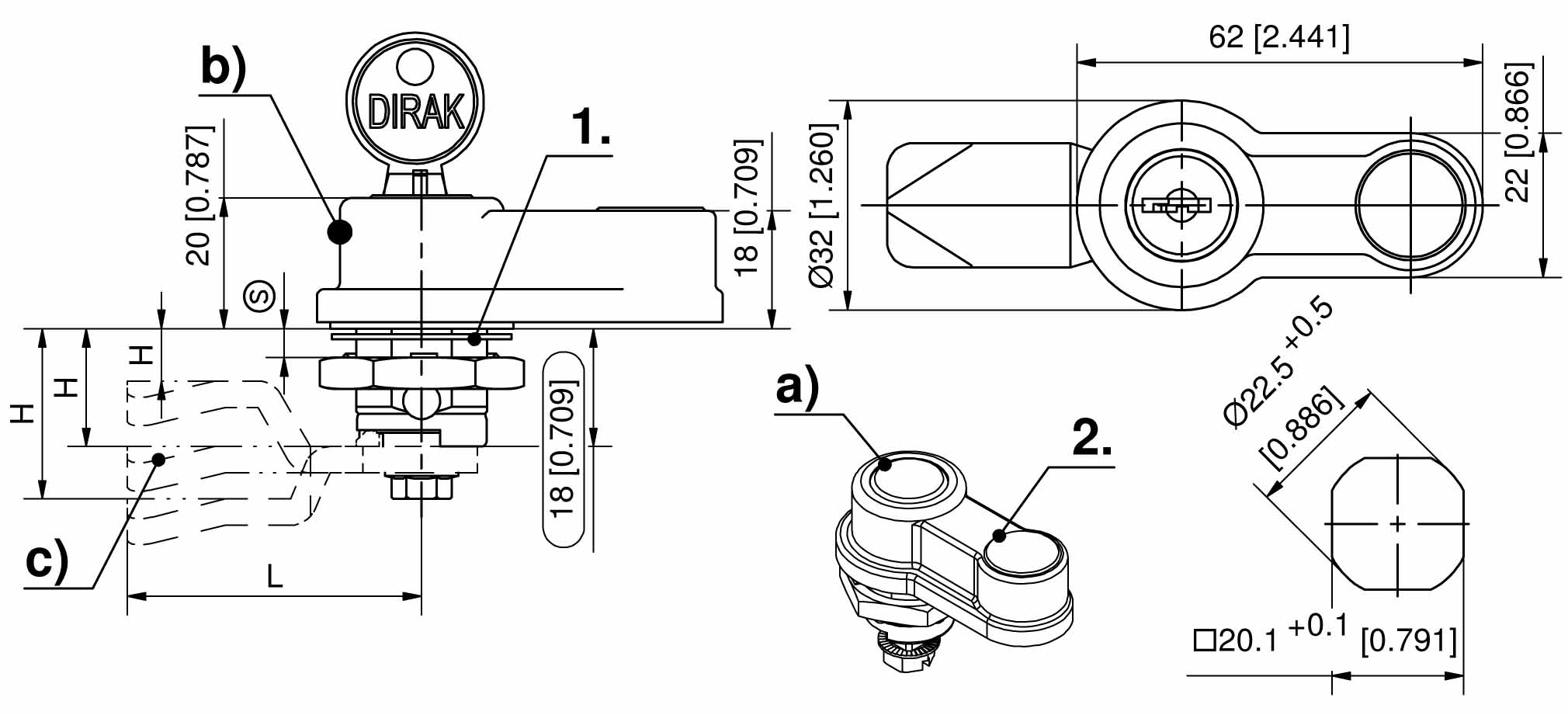

(S) Door-thickness max. 8mm

Please configure the quarter-turn with a cam.

1. seal
2. plug
Please select version Product data sheet
