Quarter-Turn with T-Handle Pr20.1 L18

ICON_CUTOUT_20_1
ICON_DIRAK_GEERDET
ICON_MUTTER_15Nm
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_IP65
ICON_IP54
1_142
E_1-142
1_142
E_1-142

Advantages

  • Versions without cylinder are water and dust tight according to IP65 DIN EN 60529.
  • Versions with cylinder and insert are water and dust tight according to IP54 DIN EN 60529.
  • RH / LH application.
  • Grounding by grounding nut.
  • On request parts can be assembled by DIRAK.
  • A pre-assembled quarter-turn can be installed in the cutout.
  • All lockable handles supplied with two keys.

Material

  • T-handle: zinc die, nickel plated
  • Grounding nut: zinc die
Other surfaces i.e. chrome plated, black on request

Remarks

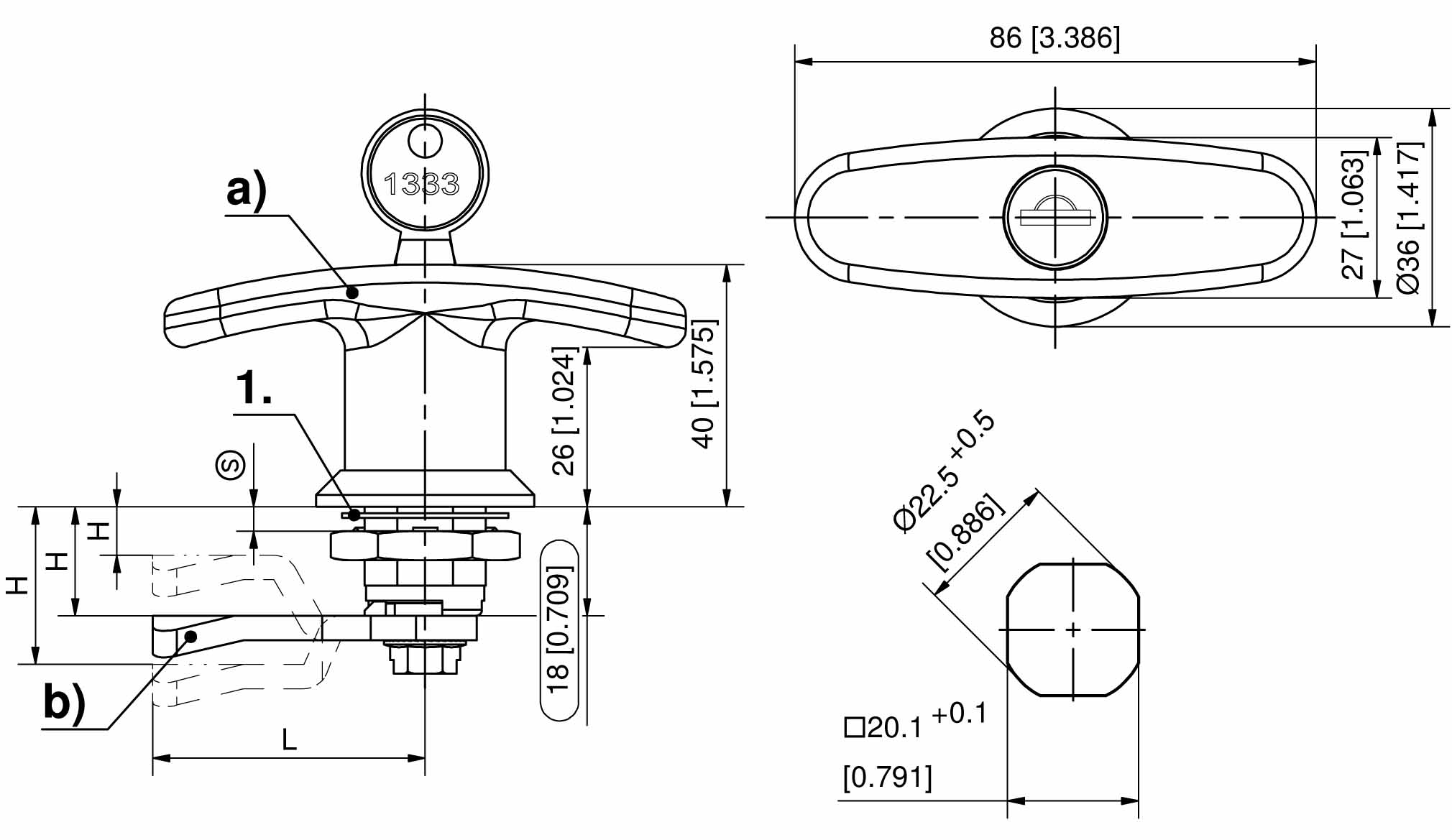

(S) Door-thickness max. 8mm

Please configure the quarter-turn with a cam.

1. silicone seal
Please select version Product data sheet

Available versions

Quarter-Turn with T-handle


Product number
Housing length
Insert
IP protection
Installation type
Delivery Unit
a)
100-9306.00-00000
18 mm
without
IP65
screw-on
1 pc.
a)
100-9309.00-00001
18 mm
Square 8mm
IP65
screw-on
1 pc.

Quarter-Turn with T-handle and cylinder


Product number
Housing length
Latching type
IP protection
Installation type
Delivery Unit
a)
100-9308.00-00000
18 mm
keyed alike DIRAK 1333
IP54
screw-on
1 pc.
a)
100-9307.00-00000
18 mm
keyed different
IP54
screw-on
1 pc.

Related Products

Skip product gallery

Accessories

1_102
1-102 Cams L35/45 Steel
1_103
1-103 Slide Shoe for Cams
1_262
1-262 Cams variable, steel, zinc plated
1_350
1-350 Rod Latch for Quarter-Turns L18 Pr20.1 RS/FS
2_150
2-150 3-Point Cam L45, Rod Control
MLA_1_103
MLA 1-103 MLA Door Contact
