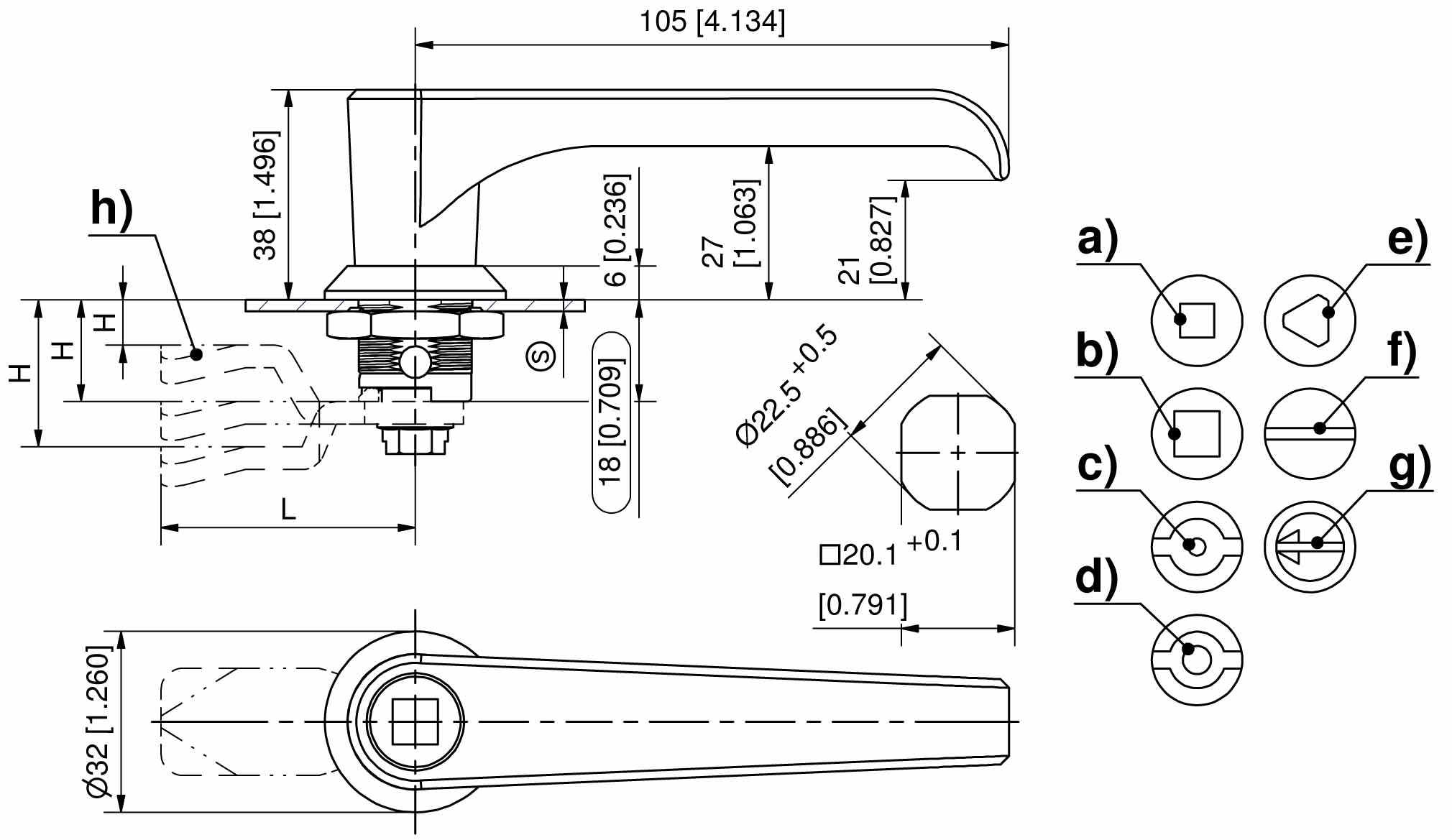

Quarter-Turn with L-Handle Pr20.1 L18

ICON_CUTOUT_20_1
ICON_DIRAK_GEERDET
ICON_MUTTER_15Nm
ICON_ROHS
ICON_TUERANSCHLAG_LR
1_151
E_1-151
1_151
E_1-151

Advantages

  • The radial spring loaded insert automatically locks the handle when the handle rotates back into the closed position.
  • RH / LH application.
  • Grounding by grounding nut.
  • On request parts can be assembled by DIRAK.
  • A pre-assembled quarter-turn can be installed in the cutout.

Material

  • L-handle: PA, black with zinc die core
  • Insert: zinc die, chrome plated
  • Grounding nut: zinc die

Remarks

(S) Door-thickness max. 8mm

Please configure the quarter-turn with a cam.

Padlock feature only if cam is at 90° to the L-handle.
Please select version Product data sheet
