Quarter-Turn with L-Handle for Padlock Pr20.1 L18

ICON_CUTOUT_20_1
ICON_IP65
ICON_MUTTER_15Nm
ICON_ROHS
ICON_TUERANSCHLAG_LR
1_153

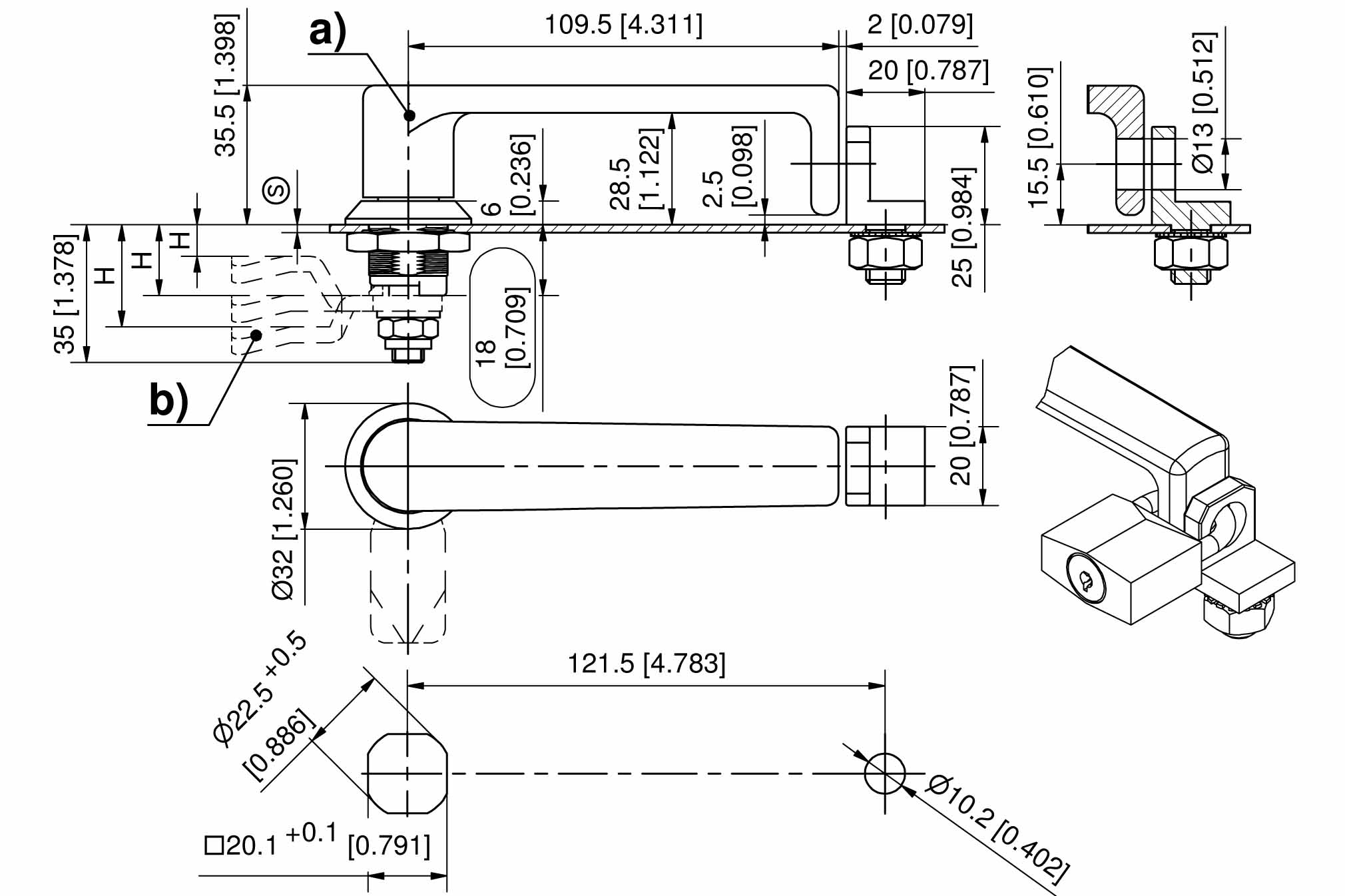

E_1-153
1_153
E_1-153

Advantages

  • IP65 according to DIN EN 60529.
  • RH / LH application.

Material

  • L-handle, hook and housing: zinc die, black
  • Both threaded shafts in handle and hook: steel, zinc plated
  • O-ring: NBR

Remarks

(S) Door-thickness max. 5mm

Please configure the quarter-turn with a cam.
Please select version Product data sheet

Available versions

Quarter-Turn with L-handle for padlock


Product number
Housing length
Installation type
Delivery Unit
a)
100-9413.00-00000
18 mm
screw-on
1 pc.
