[1-154.01]

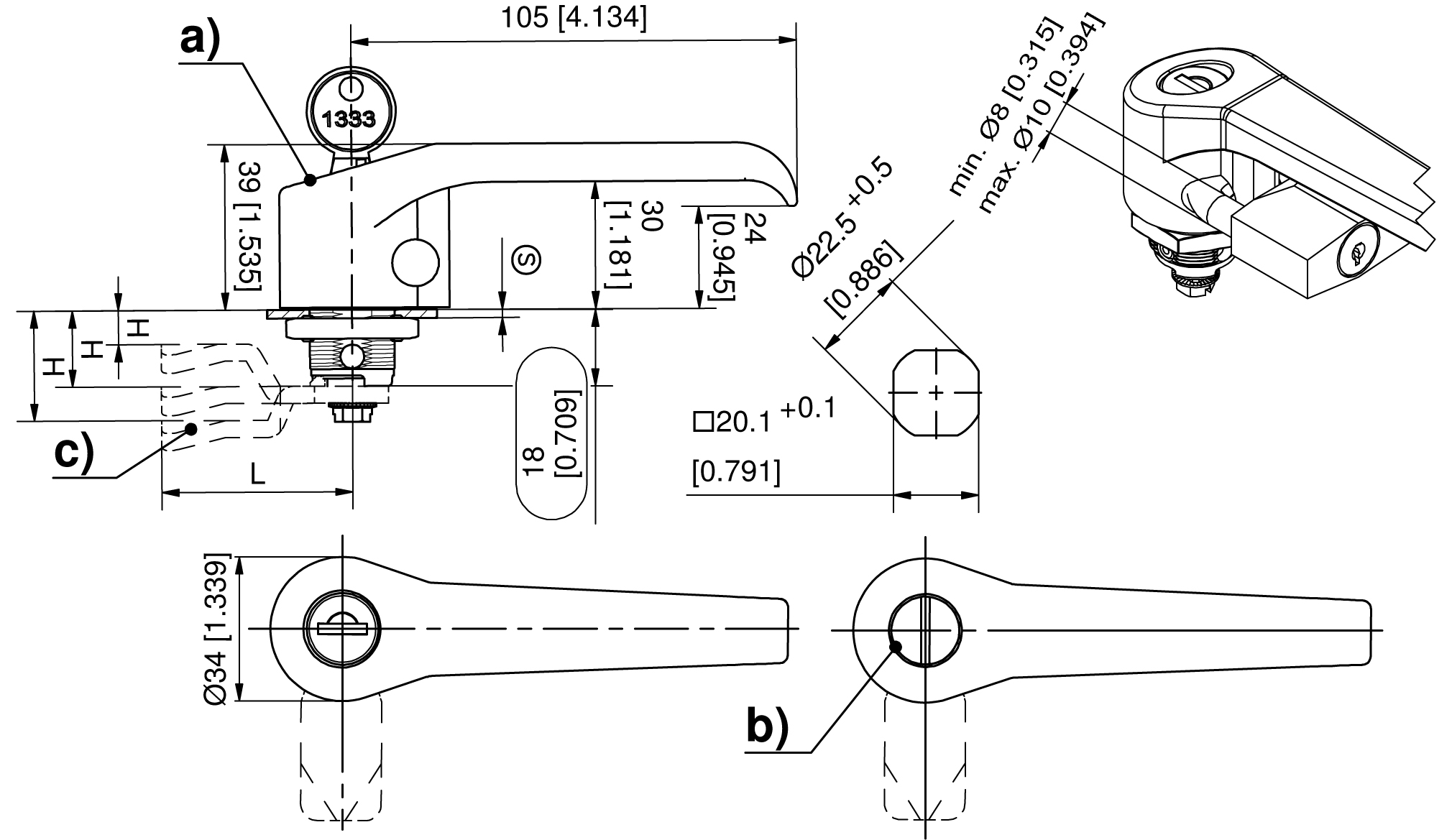

Quarter-Turn with L-Handle for Padlock Pr20.1 L18

ICON_CUTOUT_20_1
ICON_DIRAK_GEERDET
ICON_IP65
ICON_MUTTER_15Nm
ICON_ROHS
ICON_TUERANSCHLAG_LR
1_154_01
E_1-154_01
E_1-154_01_900
1_154_01
E_1-154_01
E_1-154_01_900

Advantages

  • With key cylinder or spring-loaded slotted insert.
  • IP65 according to DIN EN 60529.

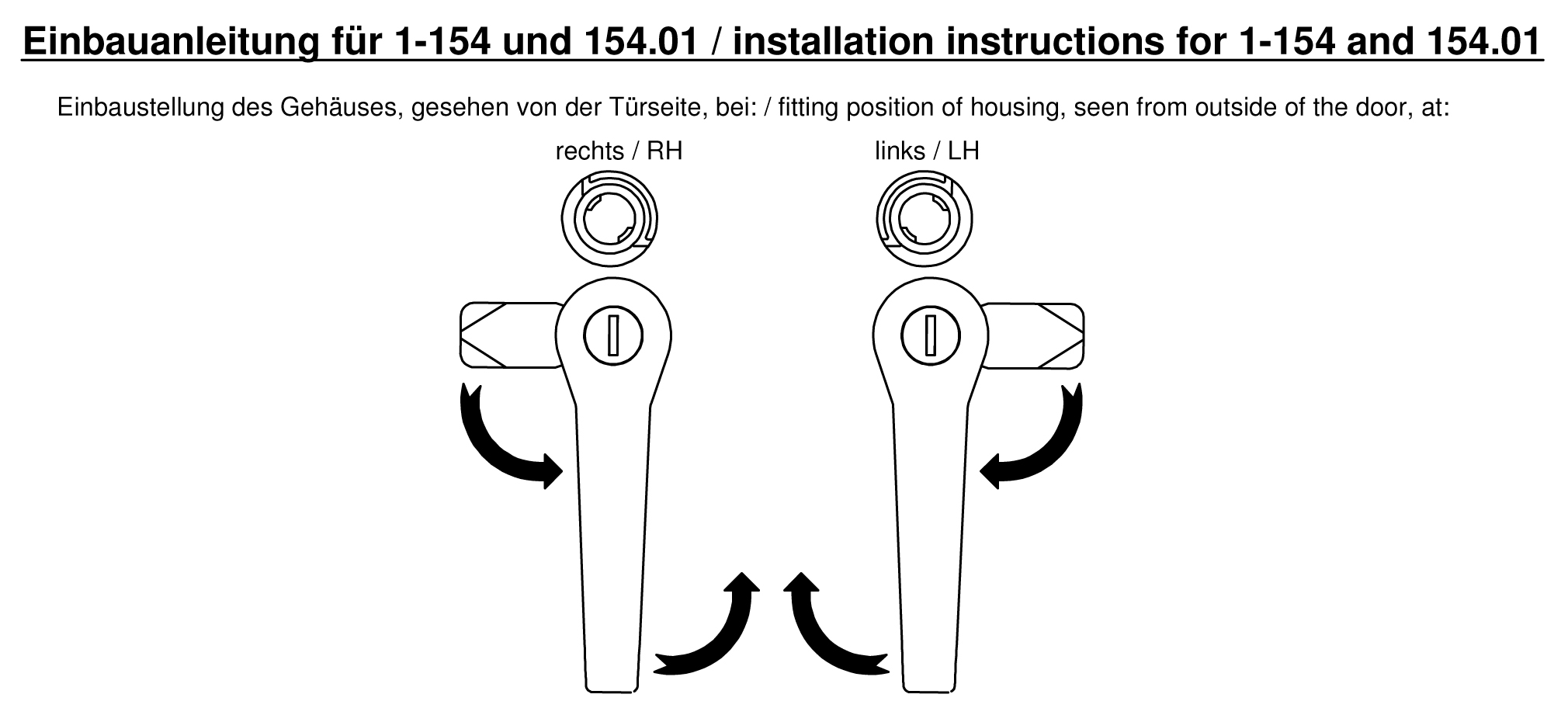

  • RH / LH application.
  • Grounding by grounding nut.
  • On request parts can be assembled by DIRAK.
  • The L-handle can be screwed into the cutout with the pre-assembled cam.
  • All lockable L-handles supplied with two keys.

Material

  • L-handle: zinc die, black
  • Housing: zinc die, zinc plated
  • Slotted insert: zinc die, chrome plated
  • Key cylinder: zinc die, with stainless dust cap
  • Grounding nut: zinc die

Remarks

(S) Door-thickness max. 8mm

Please configure the quarter-turn with a cam.
Padlock feature only if cam is at 90° to the L-handle.
Please select version Product data sheet
