Quarter-Turn with T- Handle and Wing Knob Pr20.1 L30-60

ICON_CUTOUT_20_1
ICON_DIRAK_GEERDET
ICON_MUTTER_15Nm
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_IP65
ICON_IP54
1_155_02
E_1-155_02
1_155_02
E_1-155_02

Advantages

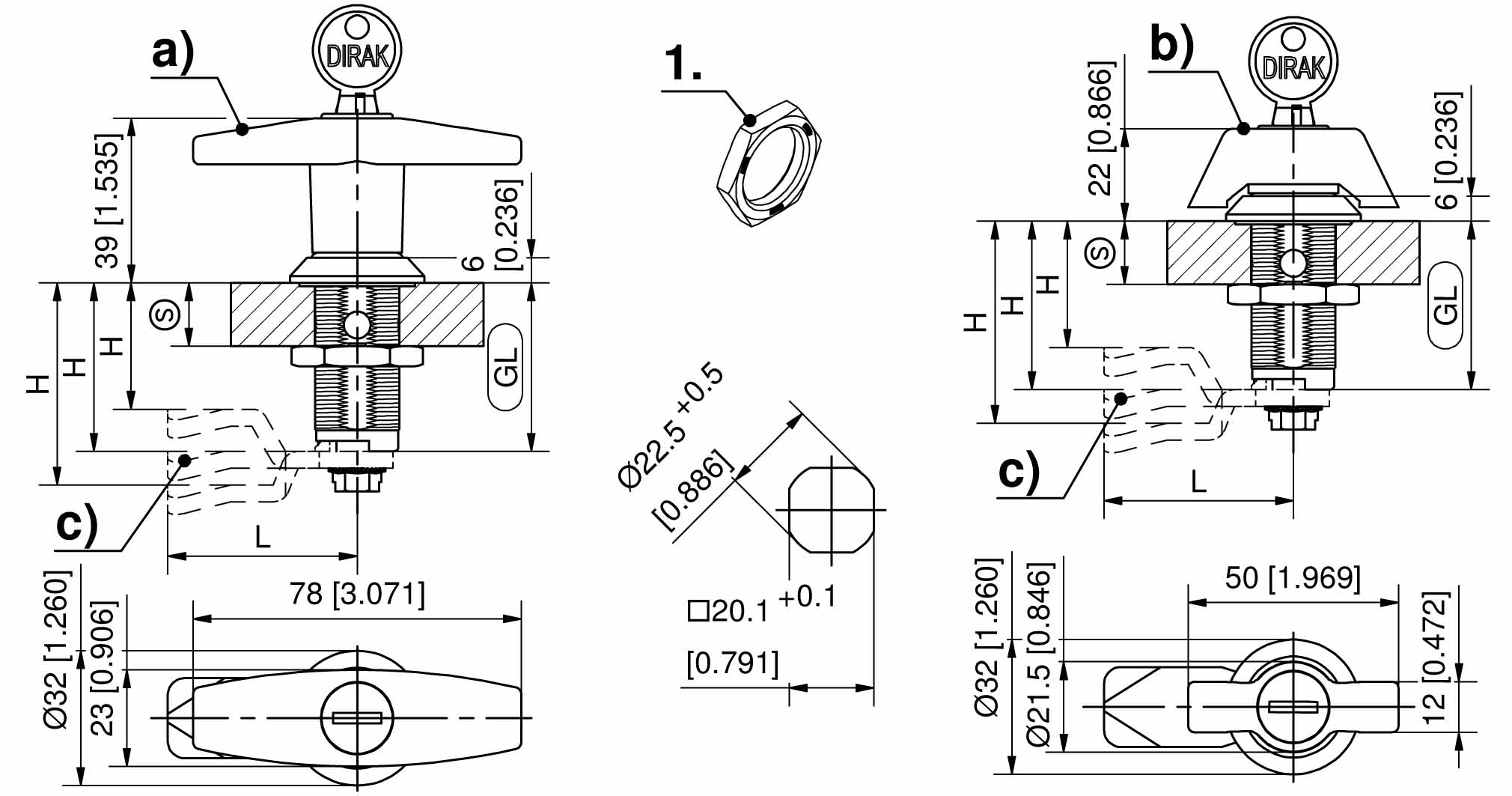

  • Quarter-turns with extended housing.
  • Maximum door-thickness 50mm.
  • All versions of wing-handles are supplied complete with housing.
  • Versions without cylinder IP65 according to DIN EN 60529.
  • Versions with cylinder IP54 according to DIN EN 60529.
  • Grounding by single-sided grounding nut (1.).
  • All lockable handles supplied with 2 keys.

Material

  • T-handle: PA, black with zinc die core, or zinc die, chrome plated or black
  • Housing: zinc die, black
  • Flat external seal: NBR/Perbunan, black
  • Wing knob: PA, black with zinc die core
  • Grounding nut: zinc die

Remarks

(S) Door-thickness see table

Housings with L 36mm on request.

Detailed dimensions of the handles see product system 1-130, 1-140.

Please configure the quarter-turn with a cam.

1. grounding nut

Please select version Product data sheet

Available versions

Quarter-Turn with T-handle, PA, black


Product number
Housing length
Latching type
Door-thickness (S)
IP protection
Installation type
Delivery Unit
a)
200-9310.00-00000
30 mm
-
0 mm - 20 mm
IP65
screw-on
1 pc.
a)
200-9313.00-00000
30 mm
keyed alike DIRAK 1333
0 mm - 20 mm
IP54
screw-on
1 pc.
a)
500-9313.00-00000
30 mm
keyed alike DS200
0 mm - 20 mm
IP54
screw-on
1 pc.
a)
200-9316.00-00000
30 mm
keyed different
0 mm - 20 mm
IP54
screw-on
1 pc.
a)
200-9311.00-00000
40 mm
-
0 mm - 30 mm
IP65
screw-on
1 pc.
a)
200-9314.00-00000
40 mm
keyed alike DIRAK 1333
0 mm - 30 mm
IP54
screw-on
1 pc.
a)
500-9314.00-00000
40 mm
keyed alike DS200
0 mm - 30 mm
IP54
screw-on
1 pc.
a)
200-9317.00-00000
40 mm
keyed different
0 mm - 30 mm
IP54
screw-on
1 pc.
a)
200-9312.00-00000
50 mm
-
0 mm - 40 mm
IP65
screw-on
1 pc.
a)
200-9315.00-00000
50 mm
keyed alike DIRAK 1333
0 mm - 40 mm
IP54
screw-on
1 pc.
a)
500-9315.00-00000
50 mm
keyed alike DS200
0 mm - 40 mm
IP54
screw-on
1 pc.
a)
200-9318.00-00000
50 mm
keyed different
0 mm - 40 mm
IP54
screw-on
1 pc.
a)
200-9346.00-00000
60 mm
-
0 mm - 50 mm
IP65
screw-on
1 pc.
a)
200-9347.00-00000
60 mm
keyed alike DIRAK 1333
0 mm - 50 mm
IP54
screw-on
1 pc.
a)
500-9347.00-00000
60 mm
keyed alike DS200
0 mm - 50 mm
IP54
screw-on
1 pc.
a)
200-9348.00-00000
60 mm
keyed different
0 mm - 50 mm
IP54
screw-on
1 pc.

Quarter-Turn with T-handle, zinc die, chrome plated


Product number
Housing length
Latching type
Door-thickness (S)
IP protection
Installation type
Delivery Unit
a)
200-9334.00-00000
30 mm
-
0 mm - 20 mm
IP65
screw-on
1 pc.
a)
200-9337.00-00000
30 mm
keyed alike DIRAK 1333
0 mm - 20 mm
IP54
screw-on
1 pc.
a)
500-9337.00-00000
30 mm
keyed alike DS200
0 mm - 20 mm
IP54
screw-on
1 pc.
a)
200-9340.00-00000
30 mm
keyed different
0 mm - 20 mm
IP54
screw-on
1 pc.
a)
200-9335.00-00000
40 mm
-
0 mm - 30 mm
IP65
screw-on
1 pc.
a)
200-9338.00-00000
40 mm
keyed alike DIRAK 1333
0 mm - 30 mm
IP54
screw-on
1 pc.
a)
500-9338.00-00000
40 mm
keyed alike DS200
0 mm - 30 mm
IP54
screw-on
1 pc.
a)
200-9341.00-00000
40 mm
keyed different
0 mm - 30 mm
IP54
screw-on
1 pc.
a)
200-9336.00-00000
50 mm
-
0 mm - 40 mm
IP65
screw-on
1 pc.
a)
200-9339.00-00000
50 mm
keyed alike DIRAK 1333
0 mm - 40 mm
IP54
screw-on
1 pc.
a)
500-9339.00-00000
50 mm
keyed alike DS200
0 mm - 40 mm
IP54
screw-on
1 pc.
a)
200-9342.00-00000
50 mm
keyed different
0 mm - 40 mm
IP54
screw-on
1 pc.
a)
200-9343.00-00000
60 mm
-
0 mm - 50 mm
IP65
screw-on
1 pc.
a)
200-9344.00-00000
60 mm
keyed alike DIRAK 1333
0 mm - 50 mm
IP54
screw-on
1 pc.
a)
500-9344.00-00000
60 mm
keyed alike DS200
0 mm - 50 mm
IP54
screw-on
1 pc.
a)
200-9345.00-00000
60 mm
keyed different
0 mm - 50 mm
IP54
screw-on
1 pc.

Quarter-Turn with T-handle, zinc die, black


Product number
Housing length
Latching type
Door-thickness (S)
IP protection
Installation type
Delivery Unit
a)
200-9352.00-00000
30 mm
-
0 mm - 20 mm
IP65
screw-on
1 pc.
a)
200-9356.00-00000
30 mm
keyed alike DIRAK 1333
0 mm - 20 mm
IP54
screw-on
1 pc.
a)
500-9356.00-00000
30 mm
keyed alike DS200
0 mm - 20 mm
IP54
screw-on
1 pc.
a)
200-9360.00-00000
30 mm
keyed different
0 mm - 20 mm
IP54
screw-on
1 pc.
a)
200-9353.00-00000
40 mm
-
0 mm - 30 mm
IP65
screw-on
1 pc.
a)
200-9357.00-00000
40 mm
keyed alike DIRAK 1333
0 mm - 30 mm
IP54
screw-on
1 pc.
a)
200-9361.00-00000
40 mm
keyed different
0 mm - 30 mm
IP54
screw-on
1 pc.
a)
200-9354.00-00000
50 mm
-
0 mm - 40 mm
IP65
screw-on
1 pc.
a)
200-9358.00-00000
50 mm
keyed alike DIRAK 1333
0 mm - 40 mm
IP54
screw-on
1 pc.
a)
200-9362.00-00000
50 mm
keyed different
0 mm - 40 mm
IP54
screw-on
1 pc.
a)
200-9355.00-00000
60 mm
-
0 mm - 50 mm
IP65
screw-on
1 pc.
a)
200-9359.00-00000
60 mm
keyed alike DIRAK 1333
0 mm - 50 mm
IP54
screw-on
1 pc.
a)
200-9363.00-00000
60 mm
keyed different
0 mm - 50 mm
IP54
screw-on
1 pc.

Quarter-Turn with wing knob, PA, black


Product number
Housing length
Latching type
Door-thickness (S)
IP protection
Installation type
Delivery Unit
b)
200-9322.00-00000
30 mm
-
0 mm - 20 mm
IP65
screw-on
1 pc.
b)
200-9325.00-00000
30 mm
keyed alike DIRAK 1333
0 mm - 20 mm
IP54
screw-on
1 pc.
b)
500-9325.00-00000
30 mm
keyed alike DS200
0 mm - 20 mm
IP54
screw-on
1 pc.
b)
200-9328.00-00000
30 mm
keyed different
0 mm - 20 mm
IP54
screw-on
1 pc.
b)
200-9323.00-00000
40 mm
-
0 mm - 30 mm
IP65
screw-on
1 pc.
b)
200-9326.00-00000
40 mm
keyed alike DIRAK 1333
0 mm - 30 mm
IP54
screw-on
1 pc.
b)
500-9326.00-00000
40 mm
keyed alike DS200
0 mm - 30 mm
IP54
screw-on
1 pc.
b)
200-9329.00-00000
40 mm
keyed different
0 mm - 30 mm
IP54
screw-on
1 pc.
b)
200-9324.00-00000
50 mm
-
0 mm - 40 mm
IP65
screw-on
1 pc.
b)
200-9327.00-00000
50 mm
keyed alike DIRAK 1333
0 mm - 40 mm
IP54
screw-on
1 pc.
b)
500-9327.00-00000
50 mm
keyed alike DS200
0 mm - 40 mm
IP54
screw-on
1 pc.
b)
200-9330.00-00000
50 mm
keyed different
0 mm - 40 mm
IP54
screw-on
1 pc.
b)
200-9349.00-00000
60 mm
-
0 mm - 50 mm
IP65
screw-on
1 pc.
b)
200-9350.00-00000
60 mm
keyed alike DIRAK 1333
0 mm - 50 mm
IP54
screw-on
1 pc.
b)
500-9350.00-00000
60 mm
keyed alike DS200
0 mm - 50 mm
IP54
screw-on
1 pc.
b)
200-9351.00-00000
60 mm
keyed different
0 mm - 50 mm
IP54
screw-on
1 pc.
