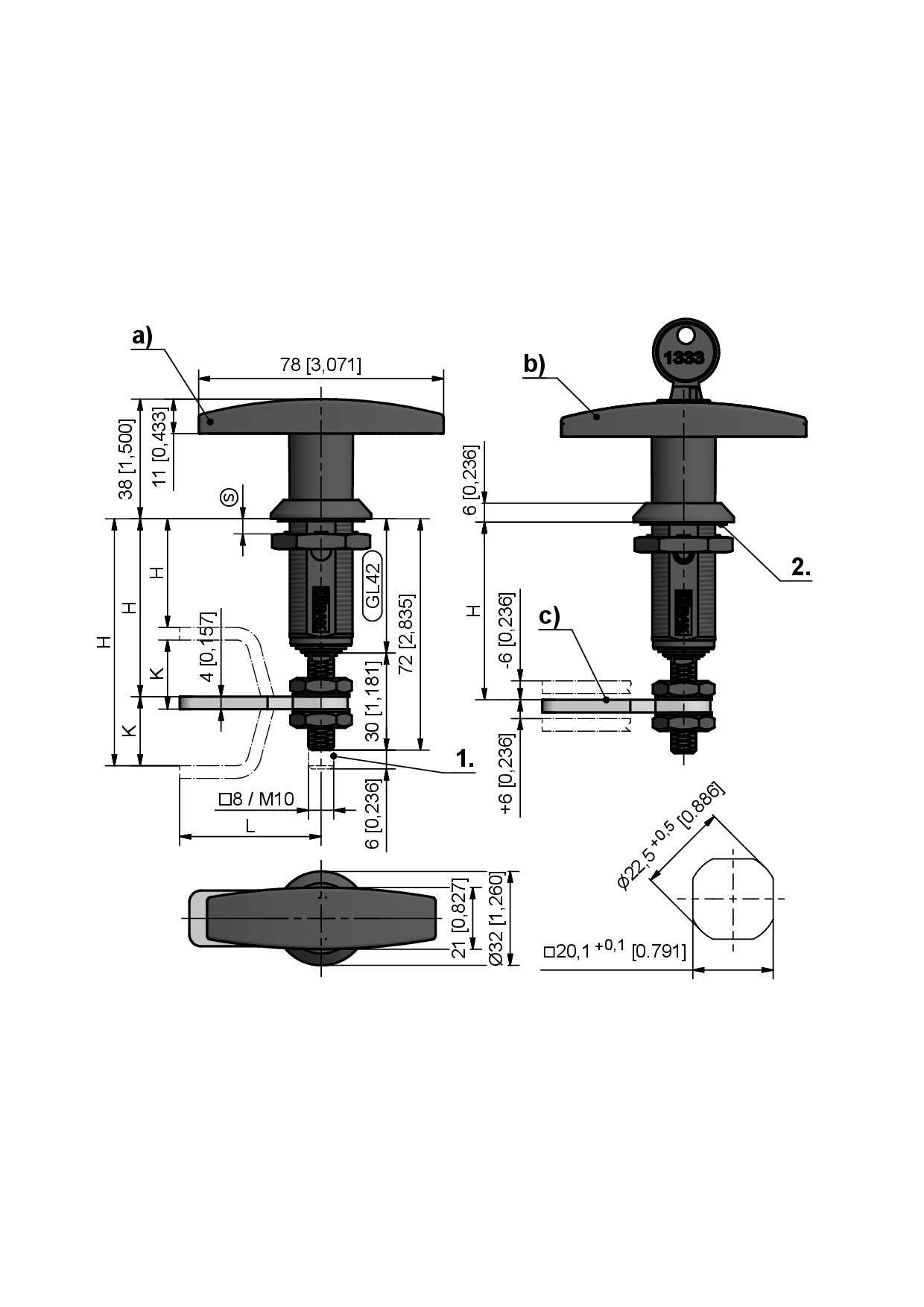

Compression Latch with T-handle Pr20.1 L42

ICON_CUTOUT_20_1
ICON_DIRAK_GEERDET
ICON_IP65
ICON_ROHS
ICON_DIN_61373
1-157
1-157

Advantages

  • Compression 6mm.
  • Vibration-proof according to DIN EN 61373.
  • IP65 according to DIN EN 60529.
  • Grounding by single sided grounding nut.
  • The H-dimension can be varied via the cranking of the cams.
  • The cam can be varied via the nuts on the square threaded rod.

Material

  • Housing, T-handle: zinc die, black powder-coated
  • Square threaded rod, nut, serrated washer: steel, zinc plated
  • Grounding nut: zinc die, untreated
  • Key cylinder with excenter: zinc die, untreated

Remarks

(S) Door-thickness max. 32mm

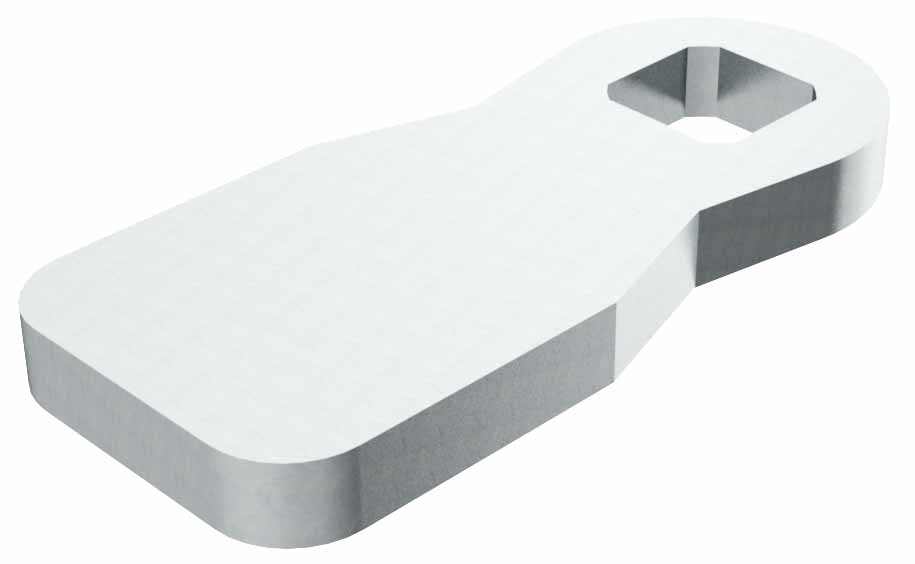

Please configure the quarter-turn with insert and cam.

Negatively cranked cams cannot be installed pre-assembled.

1. stroke 6mm

Please select version Product data sheet

Available versions

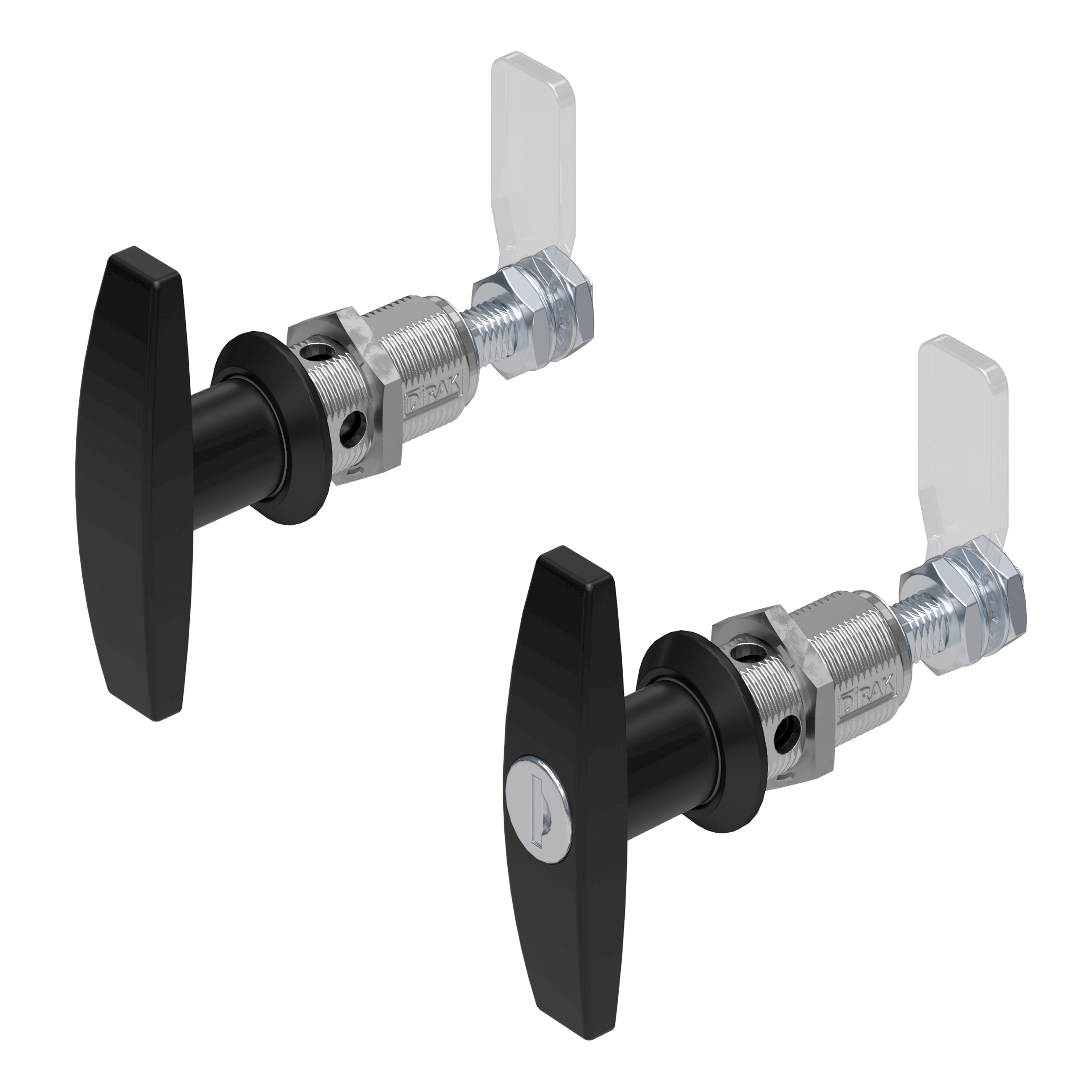

Compression latch with T-Handle, RH version, LH closing


Product number
Version
Latching type
Installation type
Delivery Unit
a)
248-9376.00-00000
RH
without lock
screw-on
1 pc.
b)
248-9377.00-00000
rechte Version
keyed alike DIRAK 1333
screw-on
1 pc.
