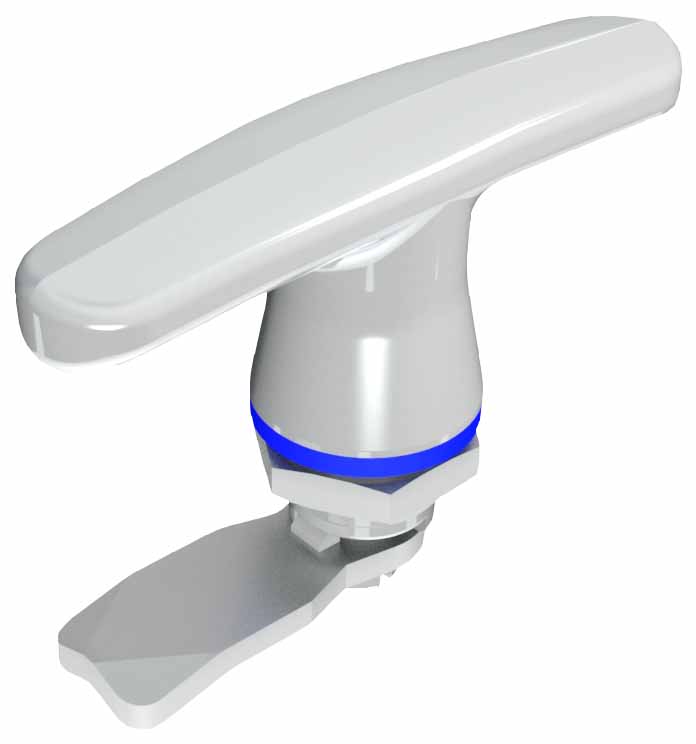

Hygiene Quarter-Turn with T-Handle Pr20.1 L18 Stainless Steel

ICON_CUTOUT_20_1

ICON_DIRAK_GEERDET

ICON_MUTTER_15Nm

ICON_TUERANSCHLAG_LR

ICON_HYGIENE_DESIGN

Advantages

Tested according to: GS-NV 2:2013/06 principles for the testing of food processing machines, GS-NV 6:2013/06 principles for the testing of hygiene requirements. Machine Ordinance: DIN EN 1672-2:2009.
DGUV Test Certificate.
Dirt resistant and easy to clean by means of polished surface and transition radii.
IP 65/67/69K according to DIN EN 60529 / DIN 40050.
RH / LH application.
Grounding by grounding nut.
Cam can be delivered pre-assembled upon request.
A pre-assembled quarter-turn can be installed in the cutout.

Material

Housing, handle and grounding nut: AISI 316
Serrated screw: AISI 304
Seal: silicone, blue, FDA conform (Food and Drug Administration)

Remarks

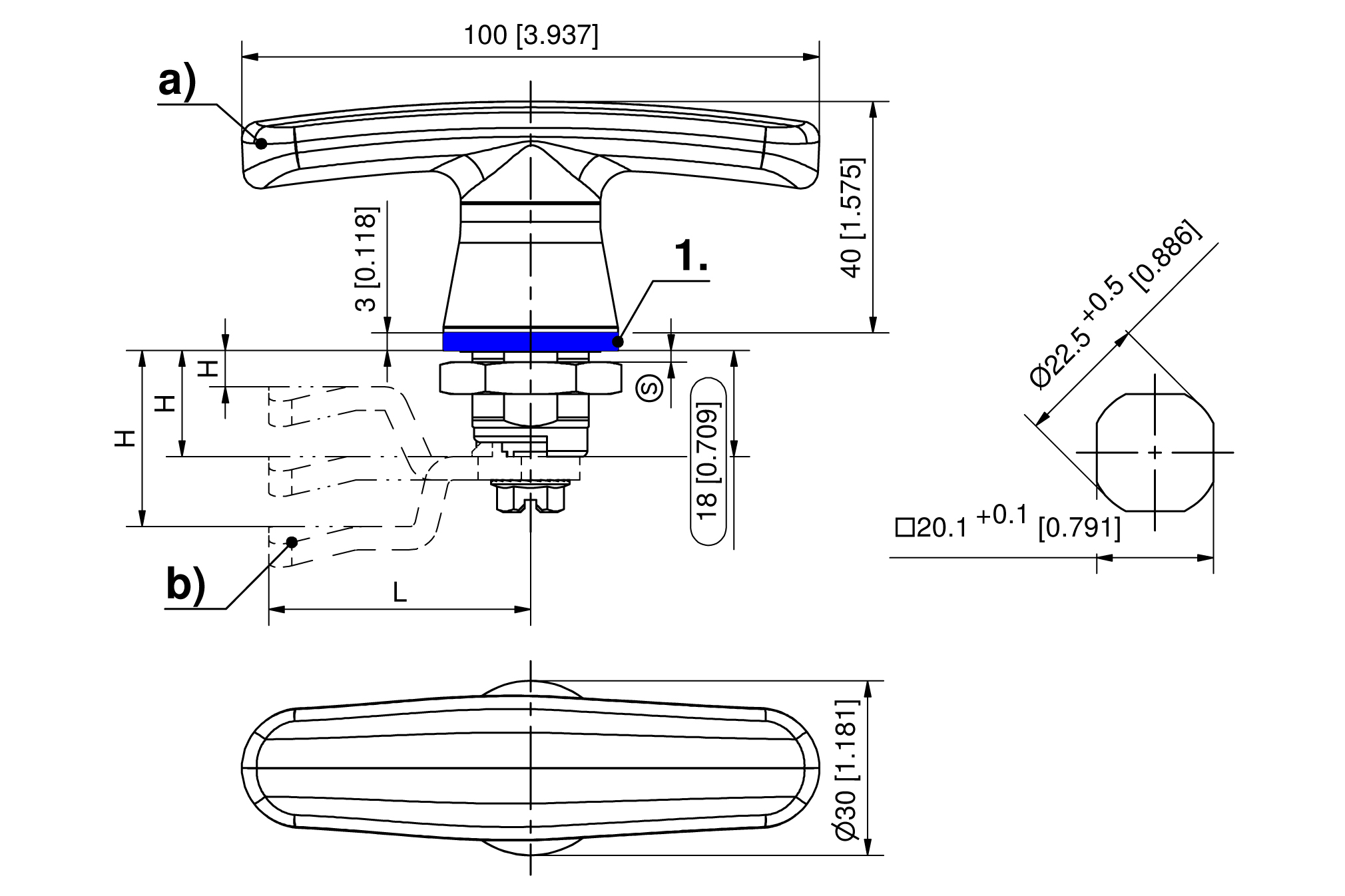

(S) Door-thickness max. 8mm
Please configure the quarter-turn with a cam.

1. silicone seal

Available versions

Hygiene Quarter-turn with T-handle

Product number

Housing length

Installation type

Delivery Unit

100-9313.00-00000

Related Products

Assembly options

dirak_shop_montageoptionen_v1

200-0001.00-00000 Assembling cam without o-ring

dirak_shop_montageoptionen_v1

200-0019.00-00000 Assembling cam 90° to handle without o-ring

Accessories

1-103 Slide Shoe for Cams

1-350 Rod Latch for Quarter-Turns L18 Pr20.1 RS/FS

b)

7-105 Cams L35/45 Stainless Steel

MLA 1-103 MLA Door Contact
