[7-081.04]

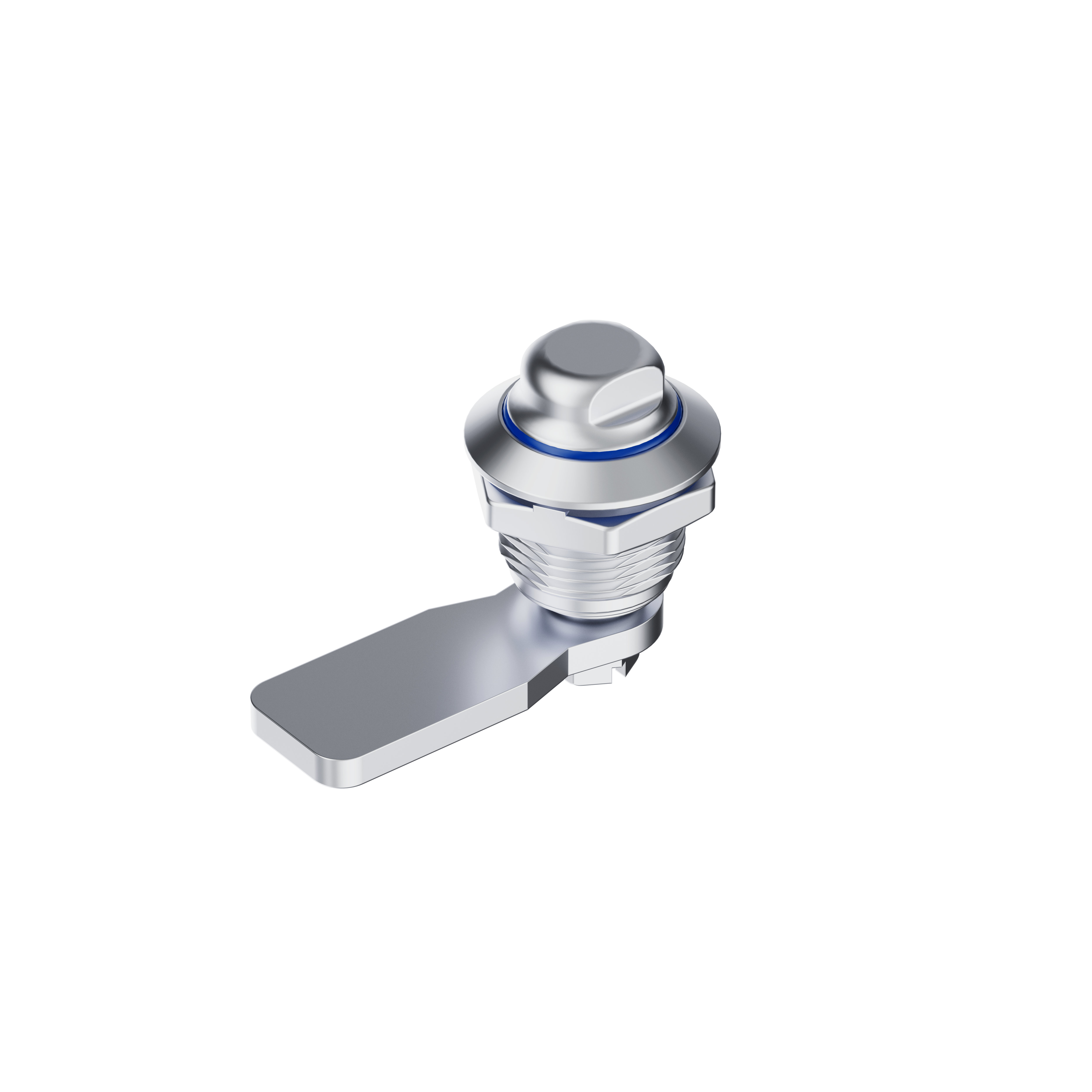

Compression Latch with Insert SW13 Pr20.1 L22 Stainless Steel

ICON_CUTOUT_20_1
ICON_DIRAK_GEERDET
ICON_IP65
ICON_MUTTER_15Nm
ICON_ROHS
ICON_EDELSTAHL

Advantages

  • Meets Hygiene requirements acc. to DIN EN ISO 14159 and DIN EN 1672-2.
  • Easy to clean.
  • O-rings (FDA compliant) prevent the ingress of liquids and the formation of contamination.
  • IP65 according to DIN EN 60529.
  • LH application.
  • Grounding by grounding nut.
  • Vibration-proof according to DIN EN 61373.
  • Compression 6mm.
  • Opening indication via 3rd flattened side.

Material

  • Housing and insert: AISI 316L, mirror polished
  • Single-sided grounding nut: AISI 316L, bright
  • Seals: Silicone, FDA compliant (Food and Drug Administration)

Remarks

(S) door-thickness max. 12 mm
Please configure the compression latch with a cam.
Negatively bent cams can not be installed pre-assembled.

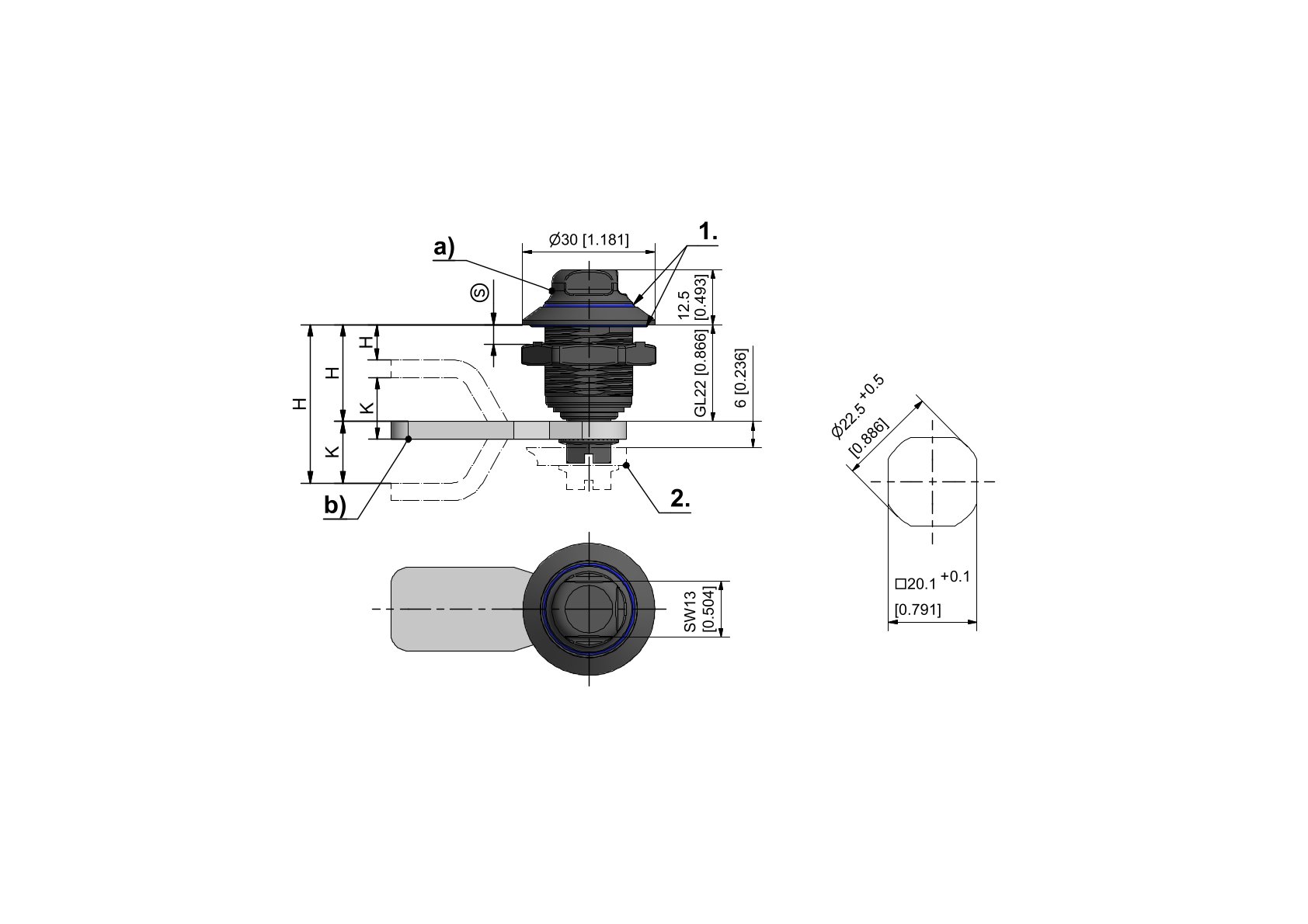

1. o-rings
2. compression 6mm

Please select version Product data sheet

Available versions

Compression Latch with Insert SW13 Pr20.1 L22 Stainless Steel

Product number
Version
Installation type
Delivery Unit
100-9511.00-00000
red o-ring
screw-on
1 pc.
100-9511.00-00001
blue o-ring
screw-on
1 pc.
