[7-091]

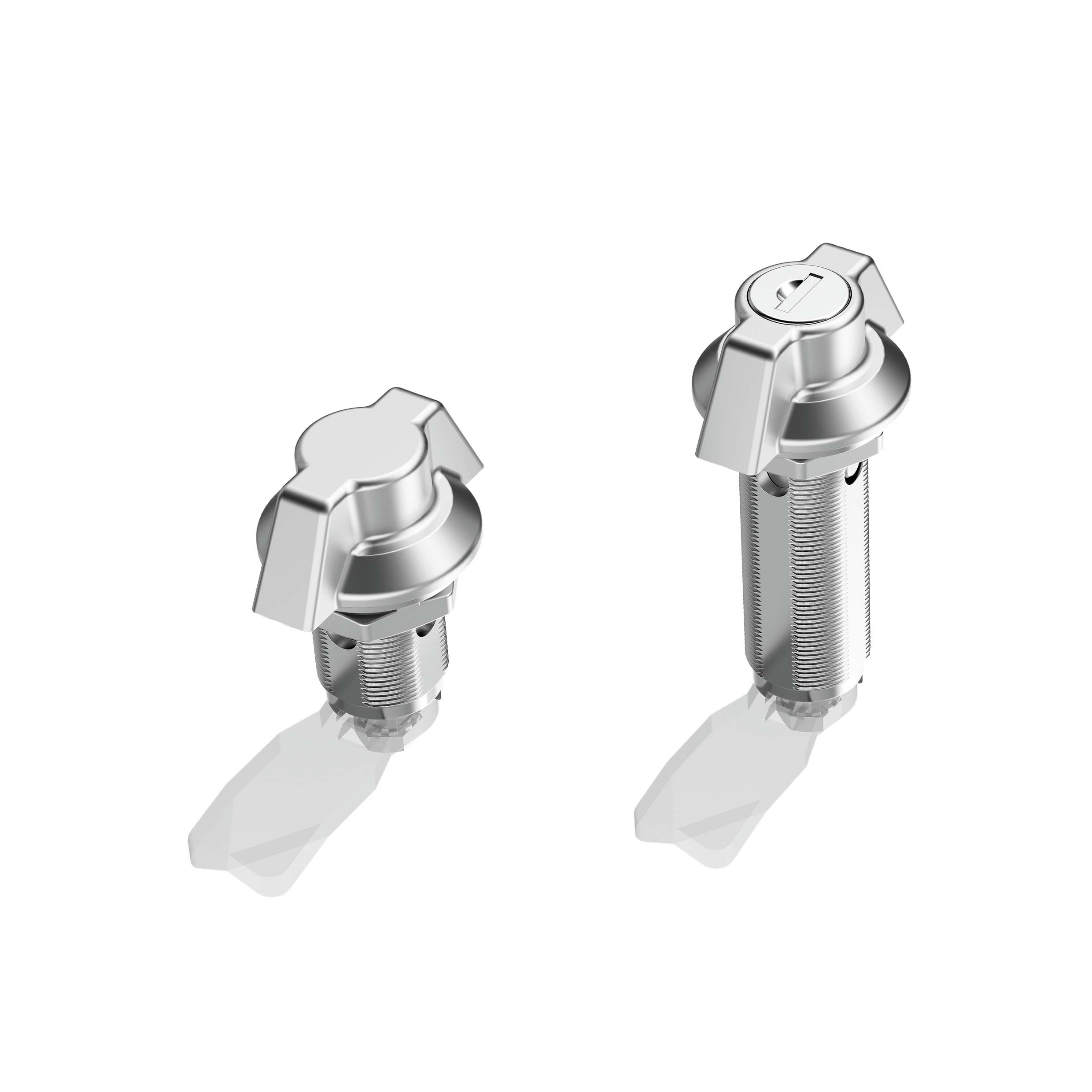

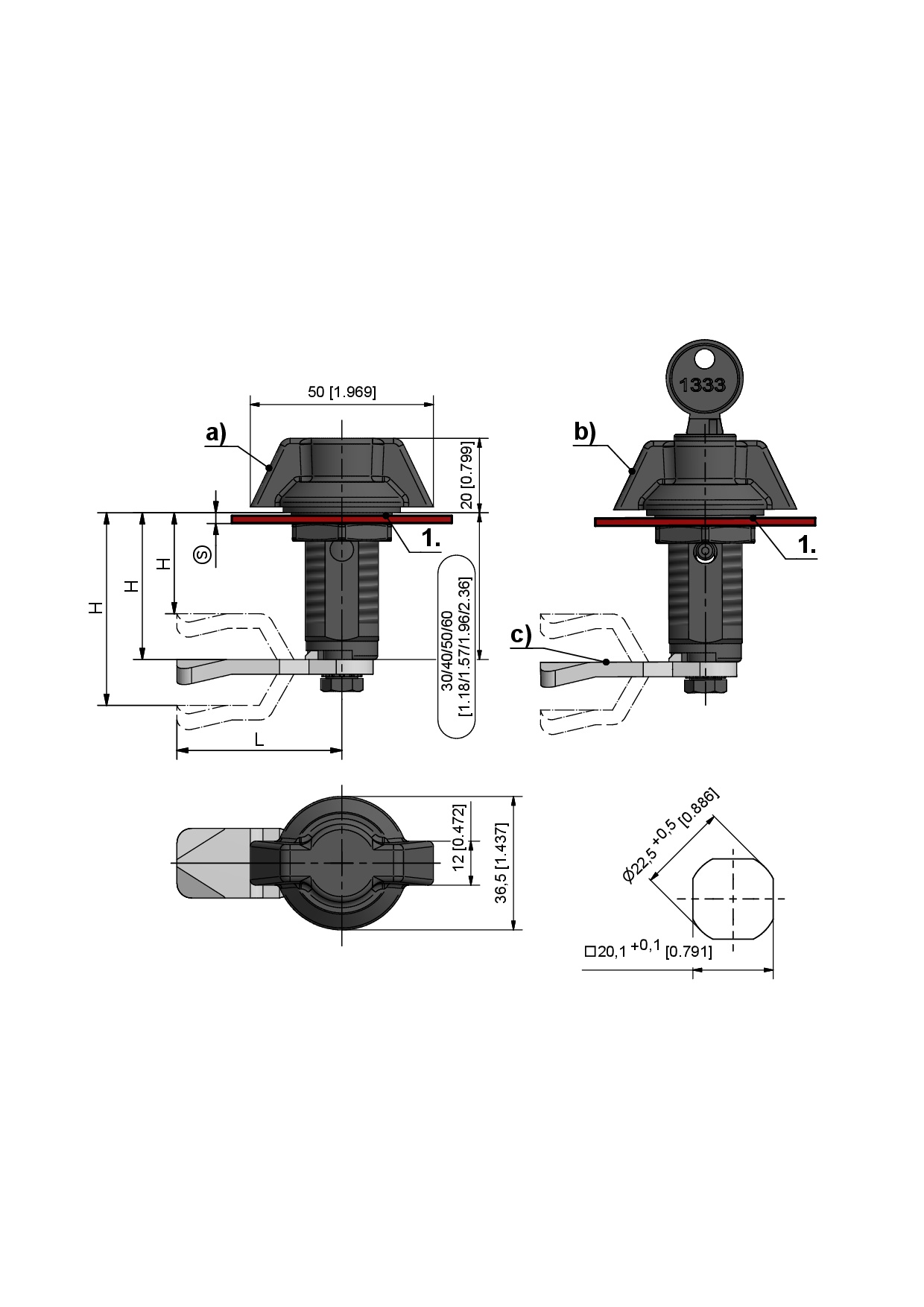

Quarter-Turn with Wing Knob L30/40/50/60 Stainless Steel
Available versions
Quarter-Turn with Wing Knob L30/40/50/60 Stainless Steel
Product number
Housing length
Door-thickness (S)
Latching type
IP protection
Installation type
Delivery Unit
a)
100-9417.00-00000
30 mm
0 mm - 20 mm
without lock
IP66/67/69K
screw-on
1 pc.
a)
100-9418.00-00000
40 mm
0 mm - 30 mm
without lock
IP66/67/69K
screw-on
1 pc.
a)
100-9419.00-00000
50 mm
0 mm - 40 mm
without lock
IP66/67/69K
screw-on
1 pc.
a)
100-9420.00-00000
60 mm
0 mm - 50 mm
without lock
IP66/67/69K
screw-on
1 pc.
b)
100-9417.00-01333
30 mm
0 mm - 20 mm
keyed alike DIRAK 1333
IP65
screw-on
1 pc.
b)
100-9418.00-01333
40 mm
0 mm - 30 mm
keyed alike DIRAK 1333
IP65
screw-on
1 pc.
b)
100-9419.00-01333
50 mm
0 mm - 40 mm
keyed alike DIRAK 1333
IP65
screw-on
1 pc.
b)
100-9420.00-01333
60 mm
0 mm - 50 mm
keyed alike DIRAK 1333
IP65
screw-on
1 pc.
b)
100-9417.00-09999
30 mm
0 mm - 20 mm
keyed different
IP65
screw-on
1 pc.
b)
100-9418.00-09999
40 mm
0 mm - 30 mm
keyed different
IP65
screw-on
1 pc.
b)
100-9419.00-09999
50 mm
0 mm - 40 mm
keyed different
IP65
screw-on
1 pc.
b)
100-9420.00-09999
60 mm
0 mm - 50 mm
keyed different
IP65
screw-on
1 pc.
