[2-126.06]

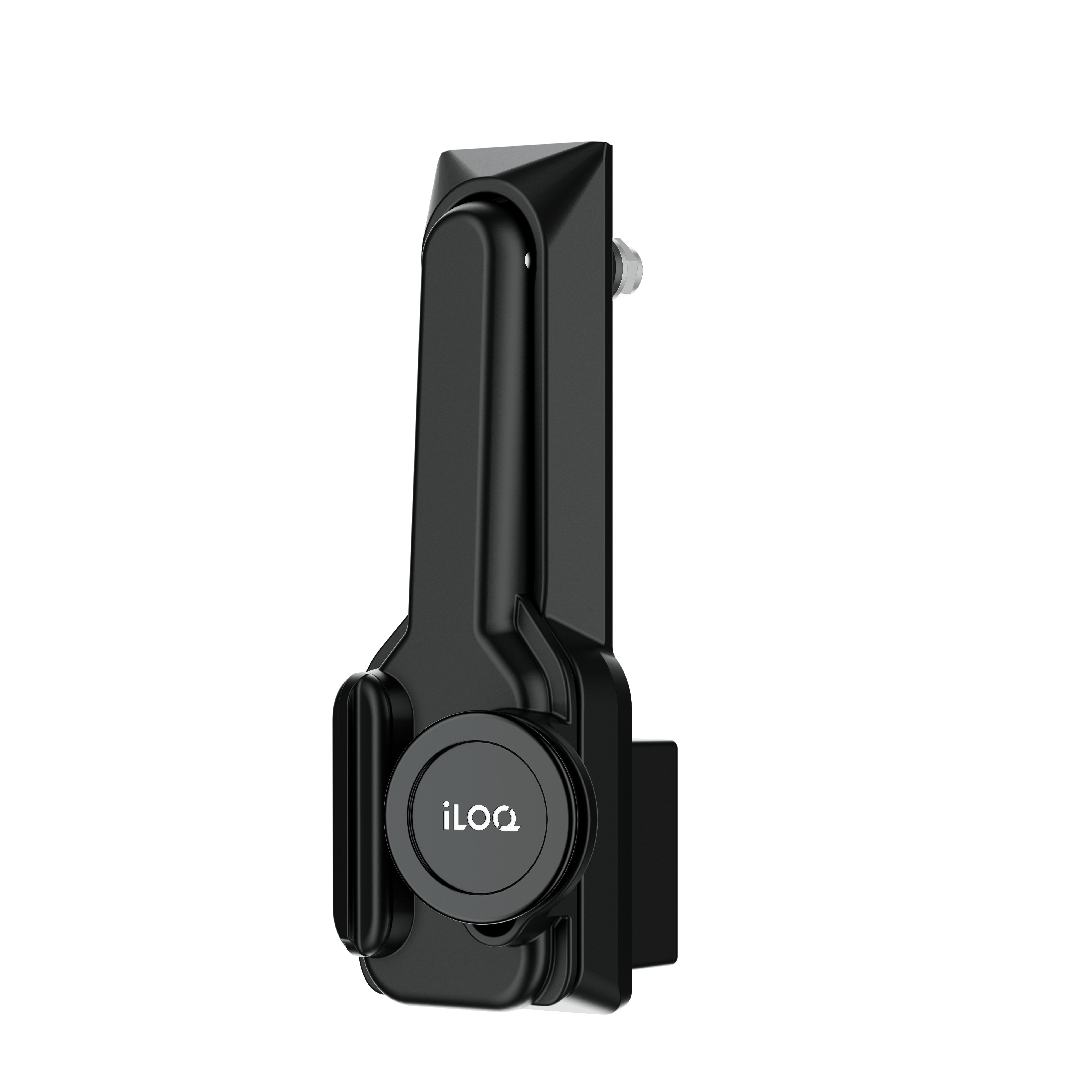

Dual-Key Cylinder Swinghandle RS 130 for iLOQ Cylinder D50S

Advantages

Dual-key cylinder swinghandle with pivotable operating lever.
Complies with security test to DIN EN 1630 RC2. Only in conjunction with profile cylinders according to DIN 18252.
Can be opened with either of the two key cylinders. Accepts 40mm and 45mm profile cylinders. When using the escutcheon, only a 45 mm cylinder can be used.
The handle can be locked without using a key.
Seismic-proof according to GR-63-CORE, Issue 4.
Vibration-proof according to DIN EN 61373.
IP65 according to DIN EN 60529.
Saw protection (on request).
Suitable for iLOQ cylinder D50S.511.SD.
RH/LH application.

Material

Swinghandle, cylinder dustcover and dish: zinc die, black
Cap: zinc die, zinc plated
Other surfaces on request!

Remarks

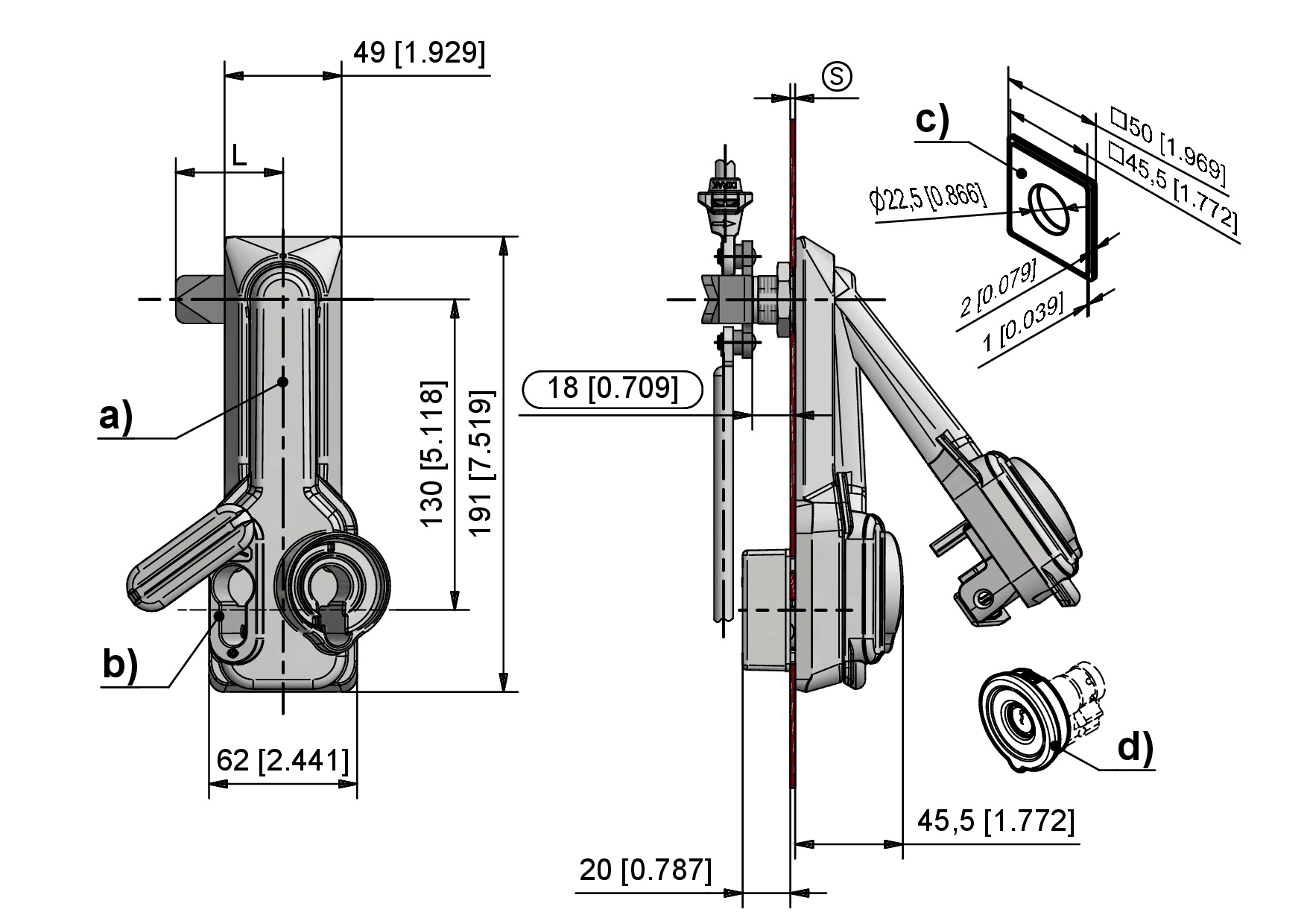

(S) Door-thickness 3mm - max. 6mm

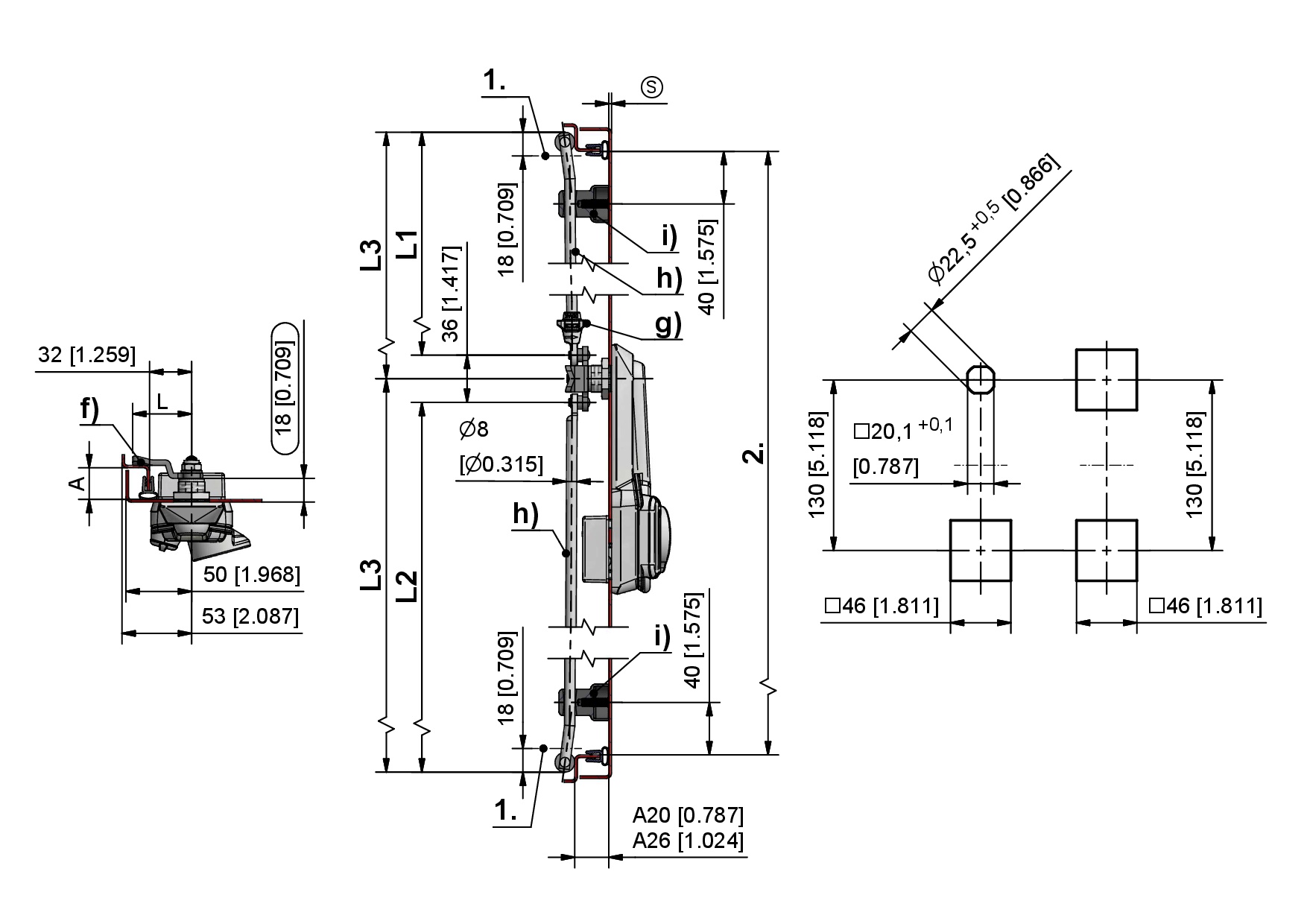

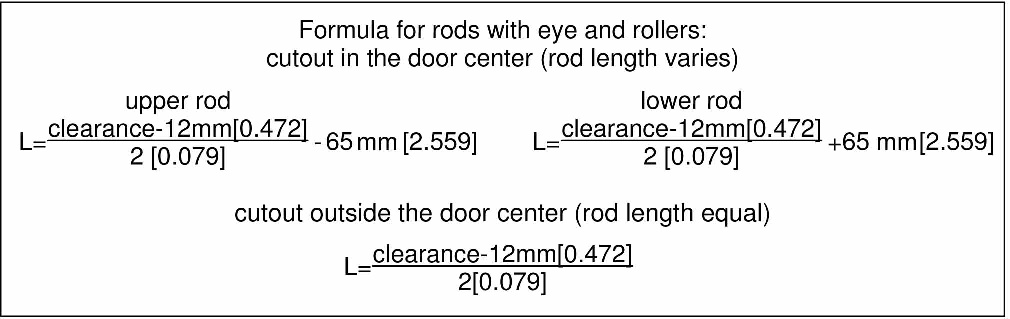

Drawings for rod calculation (see accessories):
1. stroke 18mm
2. clearance

To use the same door both RH and LH, 2 holes □46, symmetrical to door center are possible.
Profile half cylinders and their assembly must be ordered separately.
iLOQ cylinder is not included in the scope of delivery. Available at www.iloq.com
