[2-340.02]

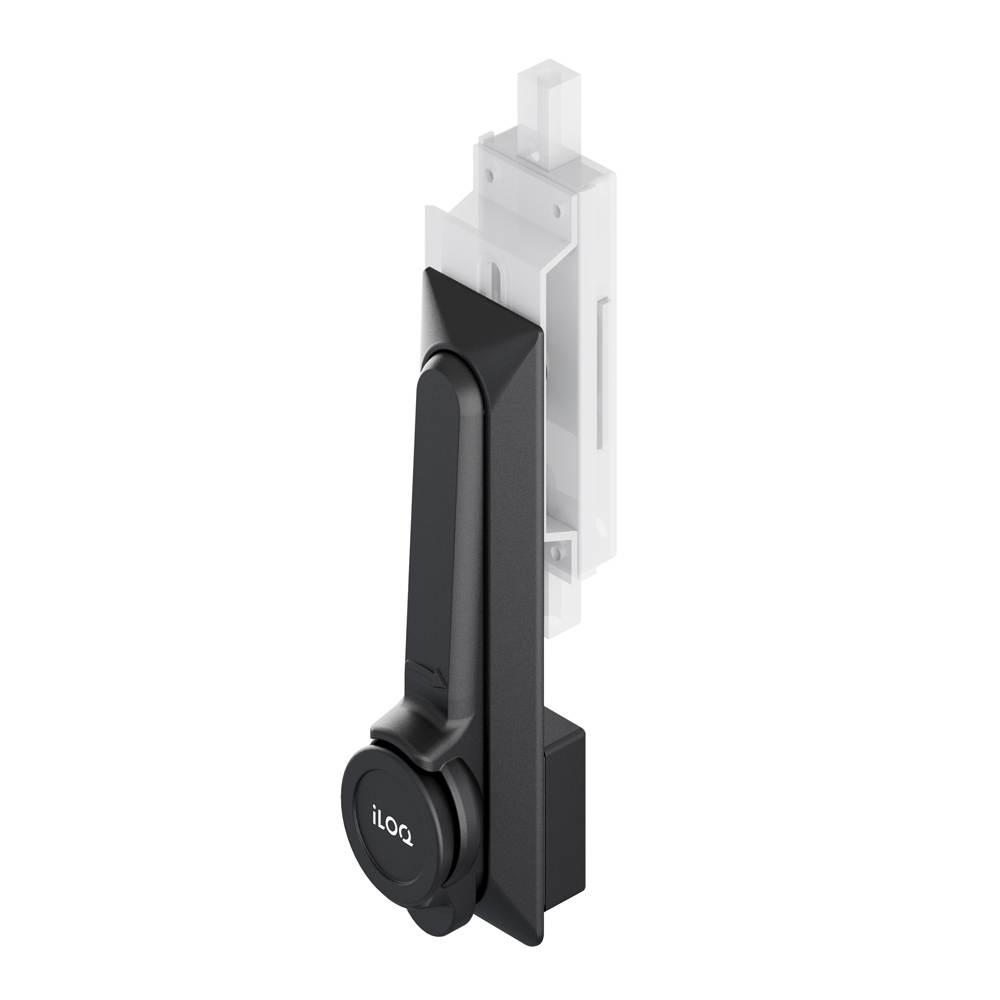

Swinghandle RS 130 for Rod Latch 2-340.01 f. iLOQ Half Cylinder D50S

ICON_IP65
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_RUNDSTANGE
ICON_ILOQ_SCHWARZ
2_340_02
E_2-340_02
E_Adapter_Ansicht
2_340_02
E_2-340_02
E_Adapter_Ansicht

Advantages

  • Swinghandle, can only be used with rod latches see product system 2-340.01.
  • Suitable for iLOQ S50 half cylinder D50S.511.SD and D50S.531.SD.
  • For round rods with thread.
  • IP65 according to DIN EN 60529.
  • RH / LH application.

Material

Swinghandle: zinc die, black
Dish and cap: PA, black

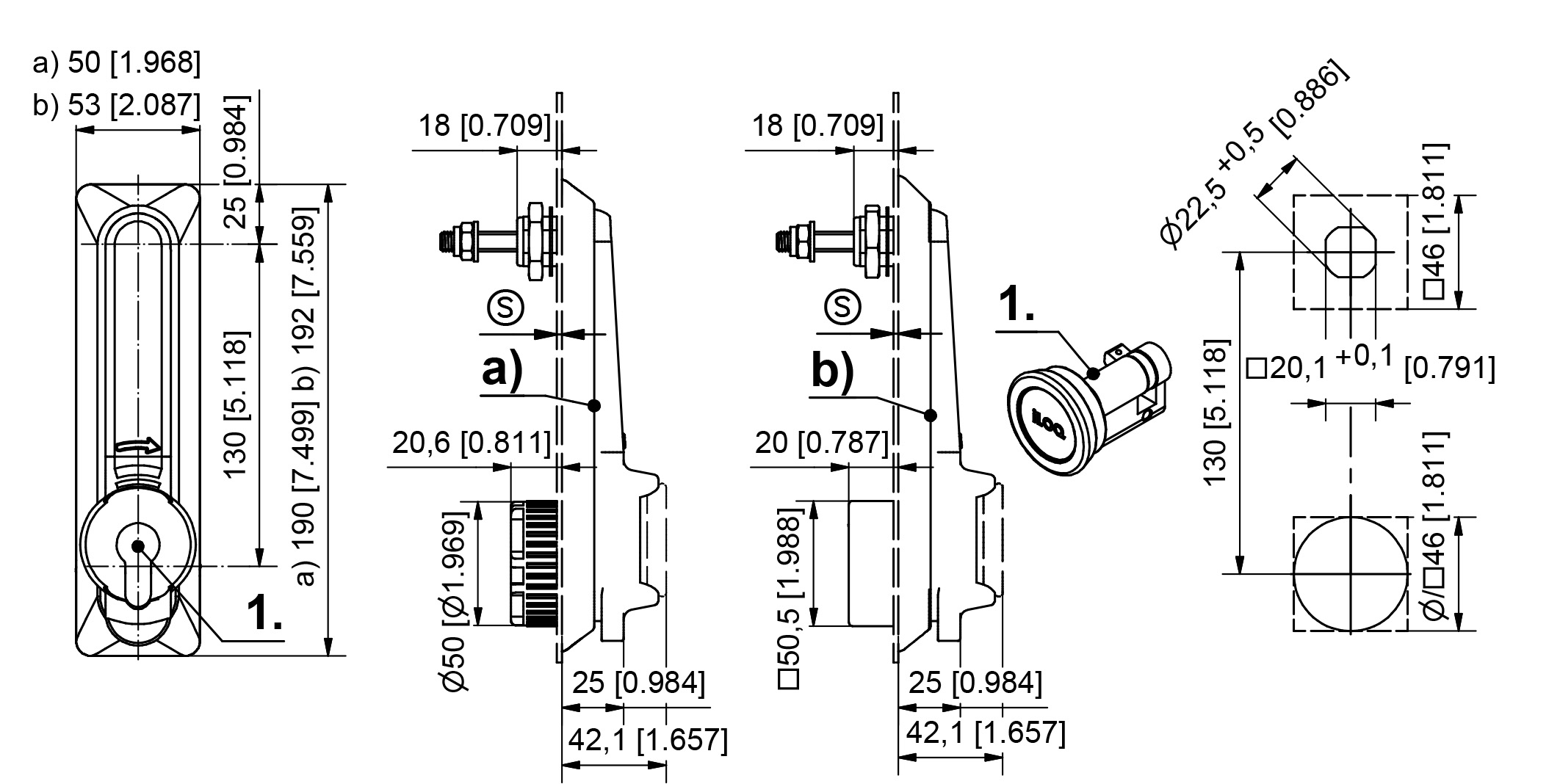

Remarks

(S) Door-thickness max. 3mm

1. Cylinder iLOQ is not included in the scope of delivery. Available at www.iloq.com
2. Adapter □46
3. Adapter Ø46

Selected version

Product number 207-9156.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Internal cover: Ø46
Cutout: 130/Ø46
CAD model
Remove selection Product data sheet

Related Products

Specific accessories



Article no.
Name

2-340.01
Rod Latch RS
Open overview in new tab
238-9003.00-00000
Rod latch
Details
Version:
RH
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
238-9004.00-00000
Rod latch
Details
Version:
LH
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
238-9001.00-00000
Rod latch
Details
Version:
RH
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
238-9002.00-00000
Rod latch
Details
Version:
LH
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
201-0801.00-01000
Round rod, M8 x 1000mm
Details
Name:
Round rod, M8 x 1000mm
Delivery Unit:
1 pc.
Open product in new tab
201-1001.00-01000
Round rod, M10 x 1000mm
Details
Name:
Round rod, M10 x 1000mm
Delivery Unit:
1 pc.
Open product in new tab
238-1501.00-00000
Lock support RH/LH, 16mm high
Details
Type:
Lock support RH/LH, 16mm high
Material:
steel
Surface:
zinc plated
Delivery Unit:
1 pc.
Open product in new tab

Accessories



Article no.
Name

207-2701.03-00000
Adapter for cutout Ø46mm
Details
Name:
Adapter for cutout Ø46mm
Material:
PA
Surface:
black
Delivery Unit:
1 pc.
Open product in new tab
207-2804.00-00000
Gasket for adapter Ø46
Details
Name:
Gasket for adapter Ø46
Material:
inducon
Surface:
Delivery Unit:
1 pc.
Open product in new tab
207-2702.03-00000
Adapter for cutout □46mm
Details
Name:
Adapter for cutout □46mm
Material:
PA
Surface:
black
Delivery Unit:
1 pc.
Open product in new tab
207-2803.00-00000
Gasket for adapter □46mm
Details
Name:
Gasket for adapter □46mm
Material:
inducon
Surface:
Delivery Unit:
1 pc.
Open product in new tab

Product Configuration

Selected version

Product number 207-9156.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Internal cover: Ø46
Cutout: 130/Ø46
