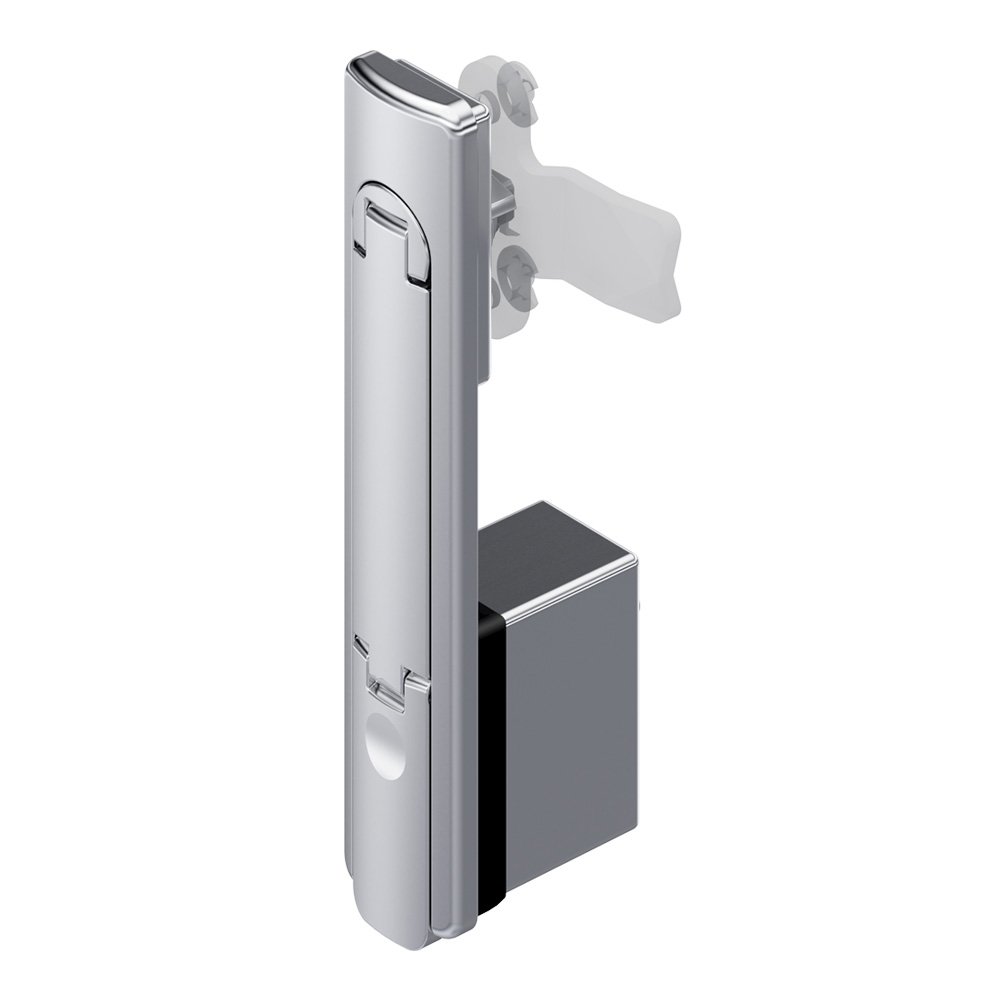

NT Swinghandle RS PrC Stainless Steel

ICON_TUERANSCHLAG_LR

ICON_RUNDSTANGE

ICON_FLACHSTANGE

ICON_CUTOUT_PR_C

ICON_DIRAK_GEERDET

ICON_PZ_DIN_18252

Advantages

Extremly narrow gap.
135° Closing rotation.
The flush design prevents this swinghandle being used as climbing support.
Locking cylinder fitted in the dish and protected against being forced through.
Bolted internal cap is made of stainless steel.
Stroke 35 mm (1.378) by 3-point cam adapter 45°.
Vibration-proof according to DIN EN 61373.
IP65 according to DIN EN 60529.
RH / LH application.
(b) Cylinder cover screwable by M3x6, drive TX10.

Material

Swing handle, dish, cap, locking bolt and rotating disk : AISI 316
Cap sealing and o-ring: NBR
Washer: PTFE- Teflon
Spring: AISI 301
Locking bolt: stainless steel AISI 316
Screws, grooved pin, pin with axial knurl and nut: stainless steel

Remarks

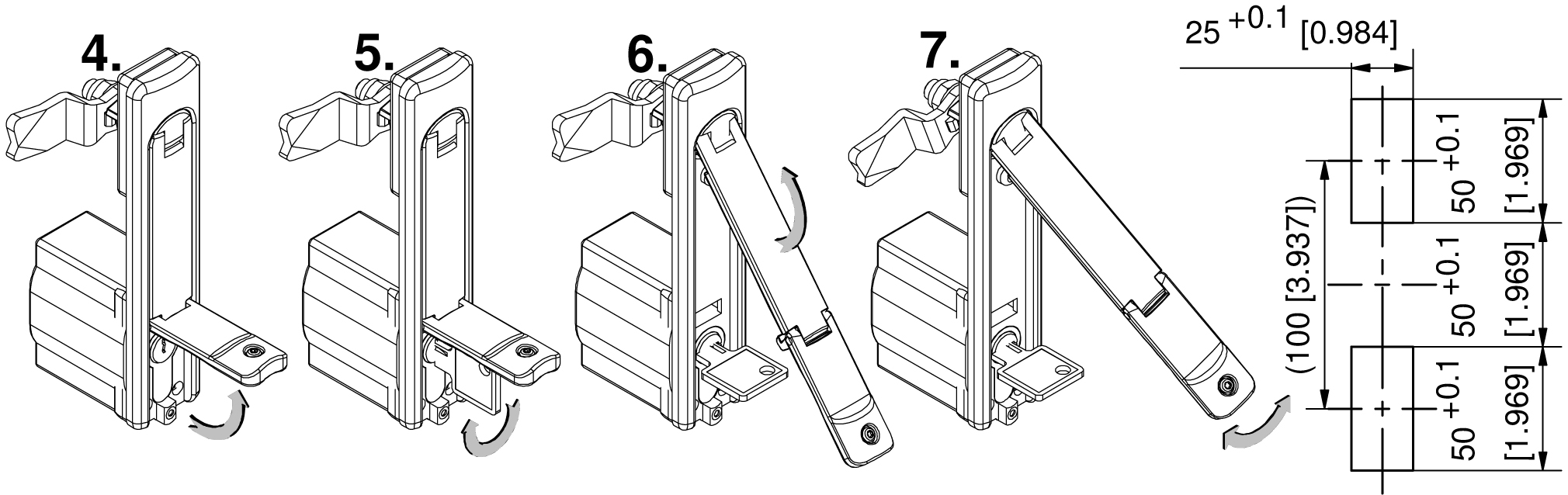

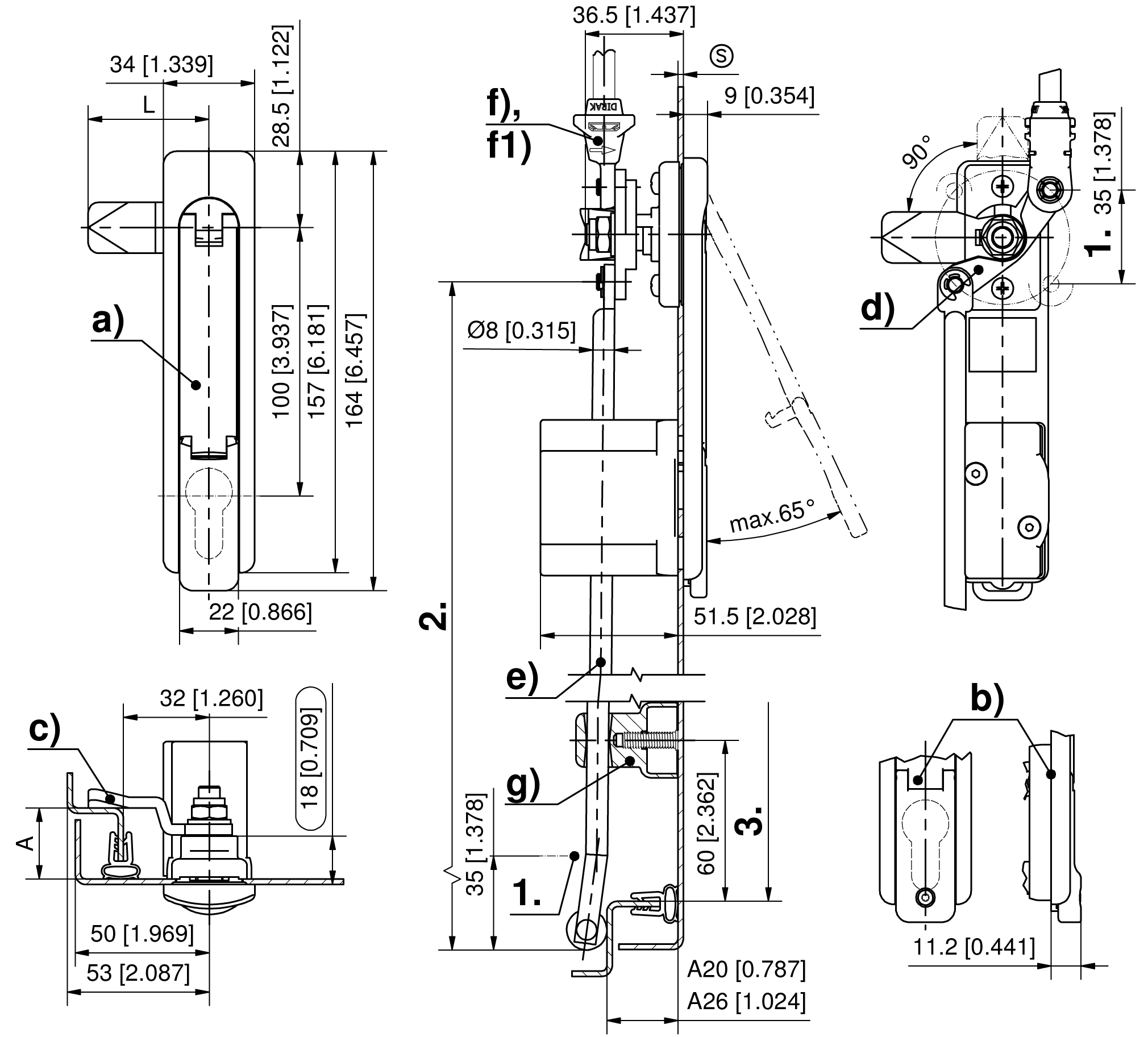

(S) Door-thickness 1.5 - 2.5mm

1. stroke 35mm

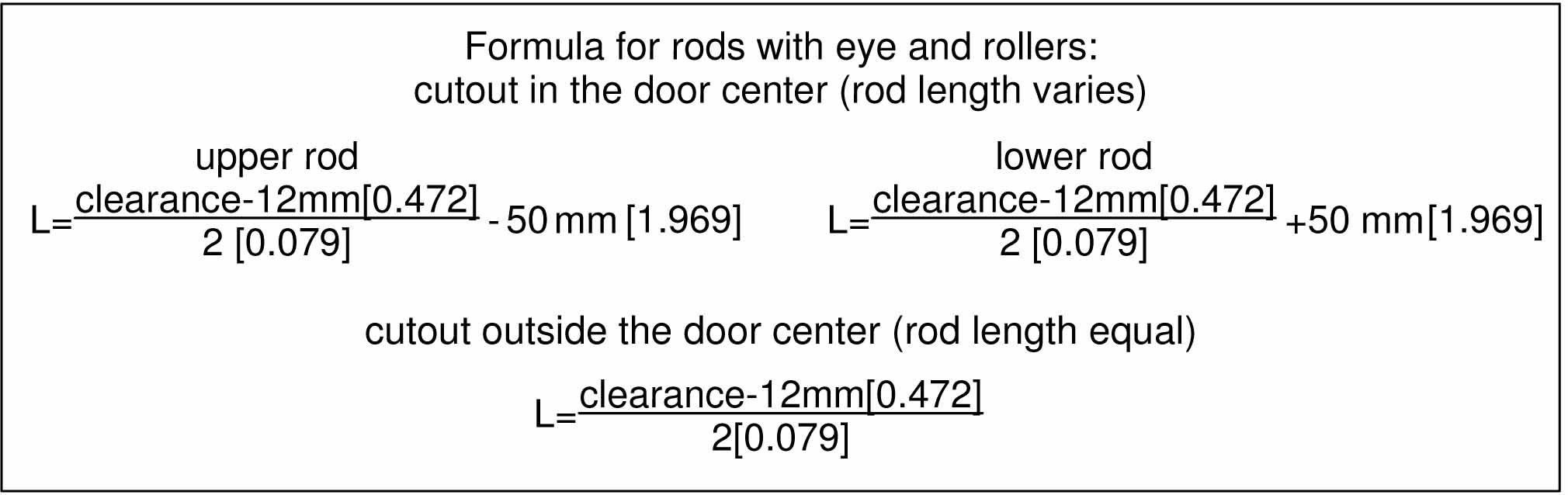

2. length L
3. clearance

Profile half cylinders and their assembly must be ordered separately.

Available versions

Swinghandle for profile cylinder

Product number

Version

Installation type

Delivery Unit

307-9302.00-00000

307-9305.00-00000

cover screw down

Related Products

Assembly options

dirak_shop_montageoptionen_v1

207-0016.00-00000 Assembling of inserts / profile-cylinder

Accessories

200-3623.51-00000 Rod guide, hight 32mm

200-3625.51-00000 Rod guide, hight 38mm

211-9003.00-00000 DIRAK pin cylinder, DIN 18252, 8 x 45° adjustable, keyed alike

211-9004.00-00000 DIRAK pin cylinder, DIN 18252, 8 x 45° adjustable, keyed different

1-103 Slide Shoe for Cams

1-181 Adapter for Round Rods Ø8mm PA

1-181.01 Adapter for Round Rods Ø8mm / Ø10mm Zinc Die

7-105 Cams L35/45 Stainless Steel

7-106 Round Rods Stainless Steel

7-106.01 3-Point Cam Adapter 45° Stainless Steel

MLA 1-103 MLA Door Contact
