[2-104.01]

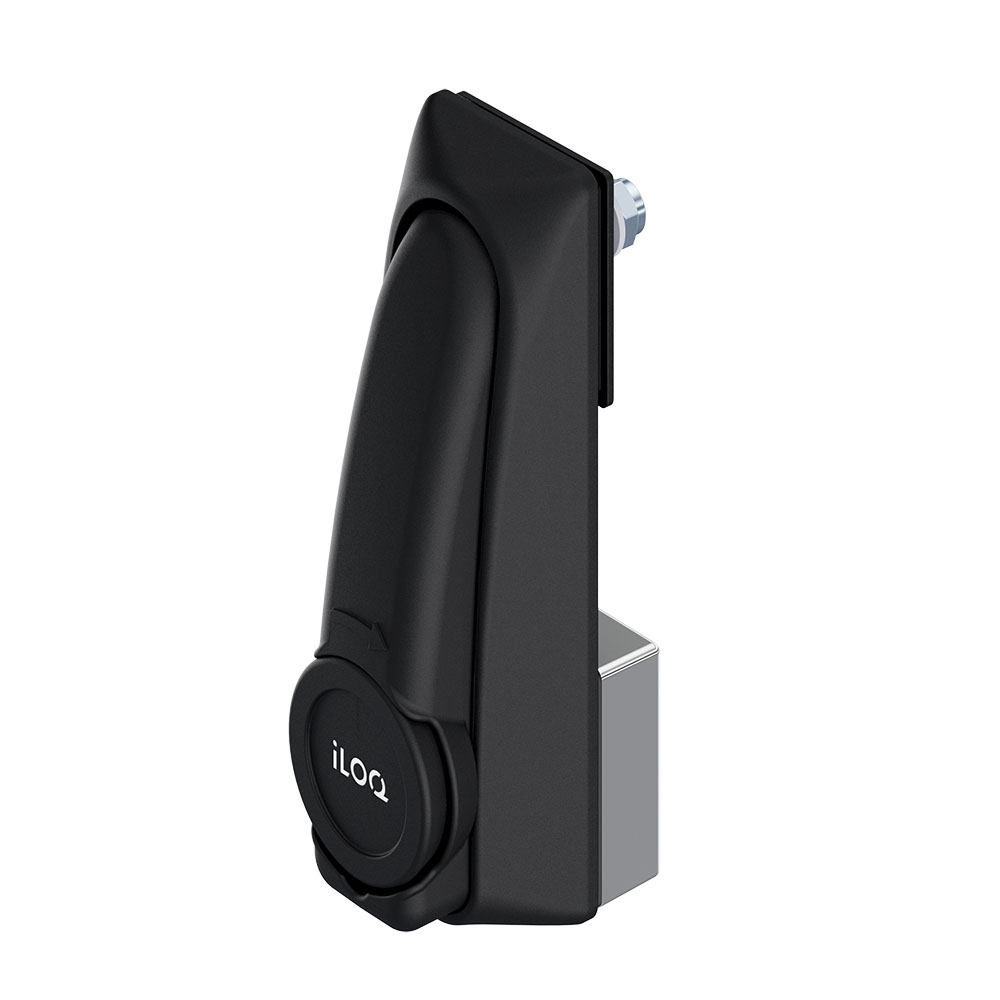

Swinghandle RS 105 f. ILOQ Half Cylinder D50S, RC2

ICON_DIRAK_FOAMED_SEAL

ICON_TUERANSCHLAG_LR

ICON_RUNDSTANGE

ICON_ILOQ_SCHWARZ

Advantages

Swinghandle with liftable operating lever.
Suitable for iLOQ S50 half cylinder D50S.111.SD and D50S.511.SD.
90° Closing rotation.
Protected against unauthorized access by a bolt..
Tested according to security class RC2 DIN EN 1630.
IP65 according to DIN EN 60529 by PUR sealing at dish and dust cover.
RH / LH application.

Material

Remarks

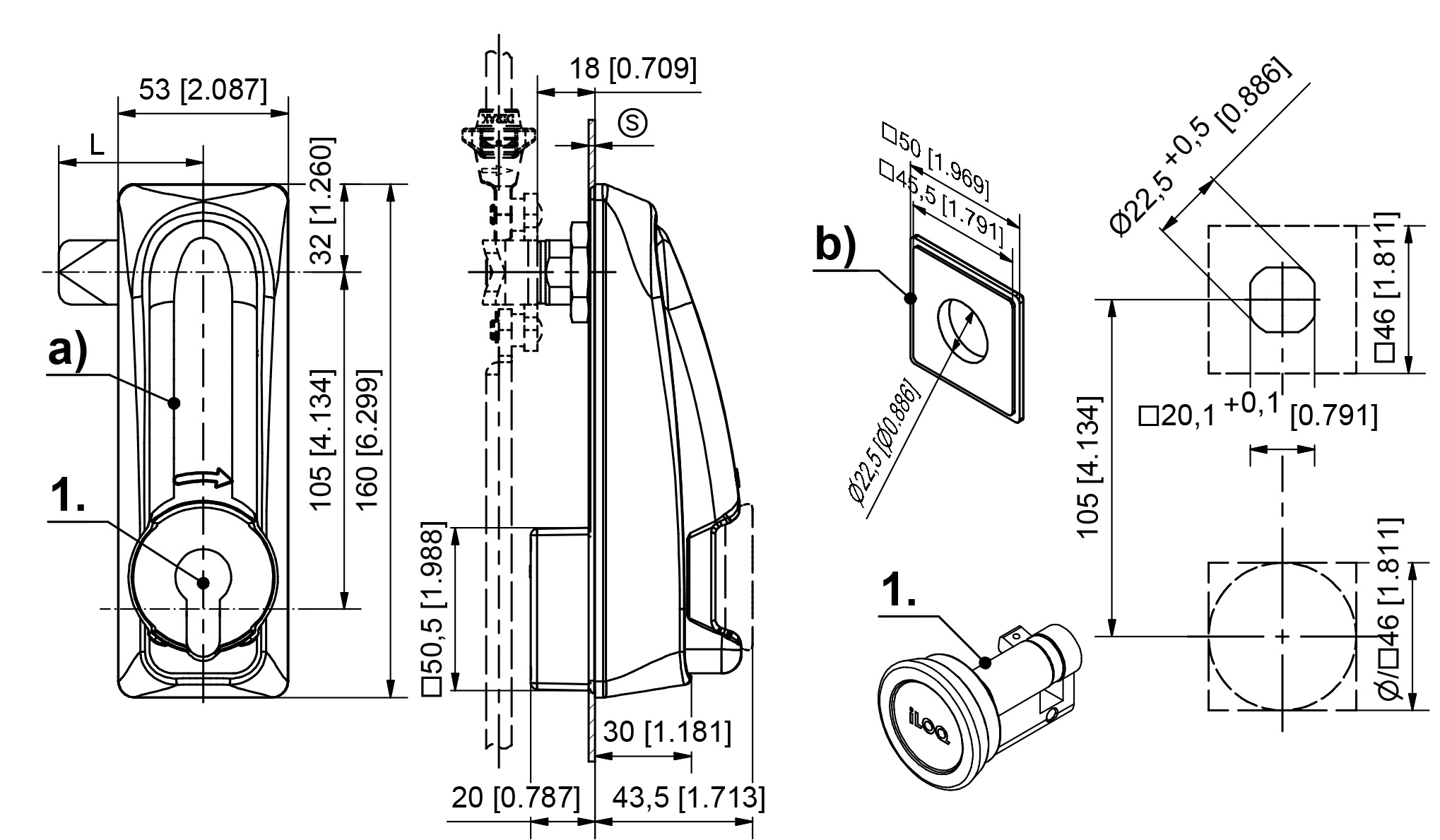

(S) Door-thickness max. 3mm

To use the same door both RH and LH, 2 holes □46, symmetrical to door center are possible.

1. Cylinder iLOQ is not included in the scope of delivery. Available at www.iloq.com

Further variants on request.

Available versions

Swinghandle for iLOQ D50S

Product number

Material

Surface

Installation type

Delivery Unit

207-9145.00-07038

207-9145.00-09005
