Swinghandle RS 105 for iLOQ Half Cylinder S50, RC2

ICON_IP65
ICON_ROHS
ICON_RC2
ICON_TUERANSCHLAG_LR
ICON_RUNDSTANGE
ICON_FLACHSTANGE
ICON_ILOQ_SCHWARZ
ICON_RUNDSTANGE
2-105
DE_2-105
2-105
DE_2-105

Advantages

  • Suitable for iLOQ S50 half cylinder (D50S.111.SD and D50S.511.SD).
  • Spring loaded liftable operating lever.
  • Protected against unauthorized access by a bolt.
  • Tested according to restistance class RC2 on the basis of DIN EN 1630:2011.
    Only in combination with profile cylinders according to DIN 18252.
  • IP65 according to DIN EN 60529.
  • RH / LH application.
  • Anti-folding device (protects the dish from scratches).

Material

  • Swinghandle, dish and cap: zinc die, black

Remarks

S) Door-thickness max. 3mm

1. stroke 18mm
2. clearance

To use the same door both RH and LH, 2 holes □46, symmetrical to door center are possible.

3. cylinder iLOQ is not included in the scope of delivery. Available at www.iloq.com
Please select version Product data sheet

Available versions

Swinghandle for iLOQ S50


Product number
Internal cover
Installation type
Delivery Unit
a)
207-9141.00-09005
□46
screw-on
1 pc.

Related Products

Skip product gallery

Accessories

2_151
207-9595.00-00000 Adapter for 3-point cam without stop
2_151
207-9596.00-00000 Adapter for 3-point cam without stop
207-2701_03-00000
207-2803.00-00000 Gasket for adapter □46mm
602-0016.35-00000 Square adapter
1_103
1-103 Slide Shoe for Cams
1_190
1-190 Rod Guides RS
1_191
1-191 Height-adjustable Rod Guide RS
1_192
1-192 Rod Guides RS
1_193
1-193 Rod Guide RS
MLA_1_103
MLA 1-103 MLA Door Contact

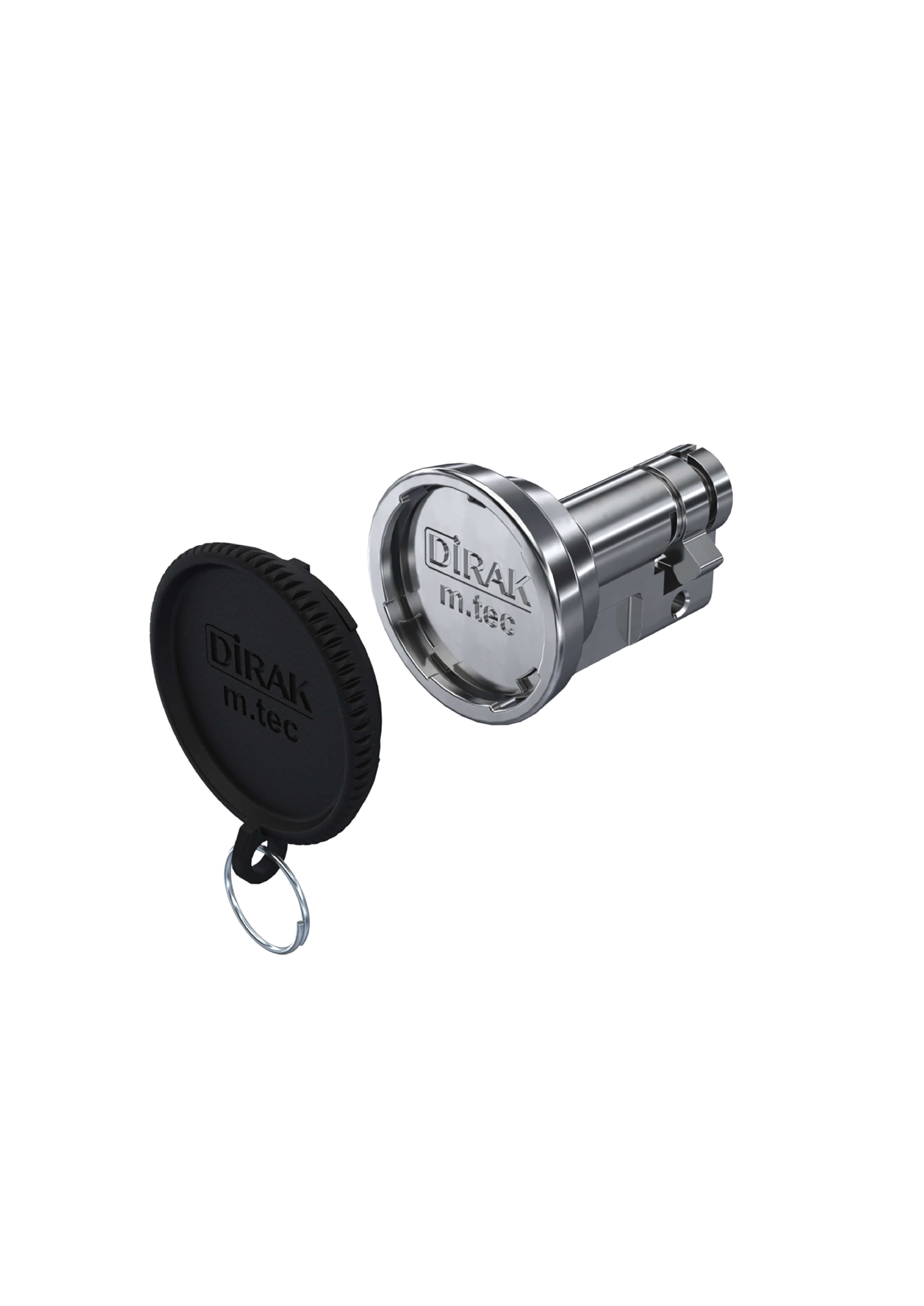

7-069.01 m.tec Profile-Cylinder
