Swinghandle RS 130 for Rod Latch PrA

ICON_TUERANSCHLAG_LR

ICON_RUNDSTANGE

ICON_CUTOUT_PR_A

ICON_PZ_DIN_18252

Advantages

Swinghandle for cutout 130.
For sheet metal and plastic enclosures.
135° rotation.
The polyamide handle is fully insulated.
The swinghandle can be locked with profile-cylinders with 45° or 90° cylinder cam feature.
IP65 according to DIN EN 60529.
RH / LH application.
By using the lock support d), the assembly of the rod latch PrA is possible.

Material

Handle: zinc die, black or PA, black
Dish and cap: PA, black
Lock support: zinc die, untreated

Remarks

(S) Door-thickness max. 3mm

For doors to be symmetrical for RH and LH operations, two cutouts □46mm with lock support e) are required.

Profile half cylinders and their assembly must be ordered separately.

Available versions

Swinghandle for profile cylinder

Product number

Latching type

Handle material

Cylinder cover material

Securable

Reinforced dustcover

Internal cover

Installation type

Delivery Unit

207-9023.00-00000

207-9024.00-00000

207-9030.00-00000

207-9034.00-00000

207-9346.00-00000

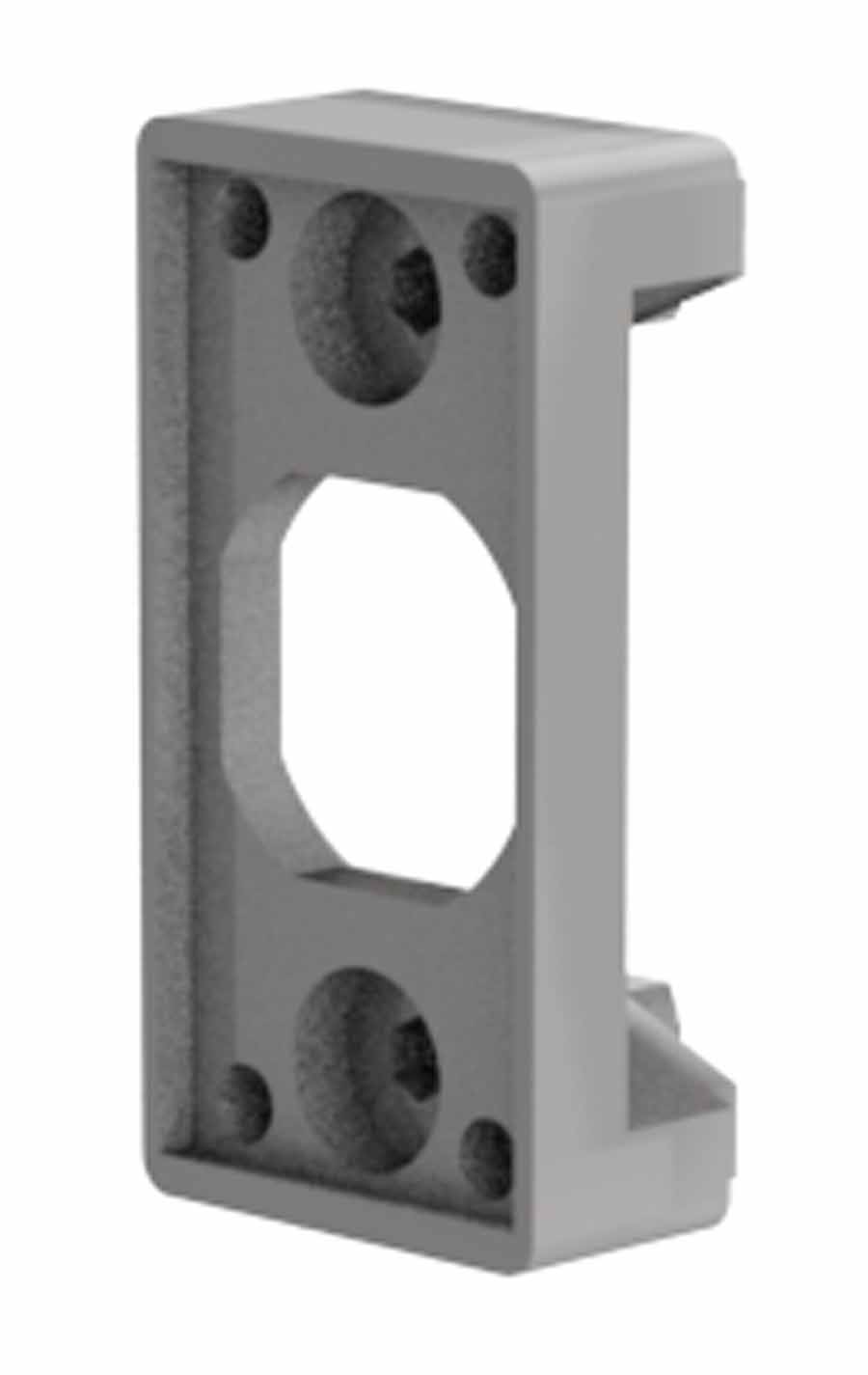

Lock support

Product number

Version

Delivery Unit

207-3501.00-00000

for cutout Ø22.5

207-2706.00-00000

for cutout □46

Related Products

Assembly options

dirak_shop_montageoptionen_v1

207-0016.00-00000 Assembling of inserts / profile-cylinder

Accessories

f)

3-100 Rod Latch RS/FS PrA

g)

201-9021.00-Lxxmm Round rod, variable length, with eye parallel to the roller

g)

1-170 Round Rods with Eye

h)

1-180 Round Rods for Adapter

i)

1-181 Adapter for Round Rods Ø8mm PA

i)

1-181.01 Adapter for Round Rods Ø8mm / Ø10mm Zinc Die

j)

2-140 Profile-Cylinder DIN 18252

1-190 Rod Guides RS

1-193 Rod Guide RS

207-3501.00-00000 Lock support for Ø22.5

207-2706.00-00000 Lock support □46
