[2-126.05]

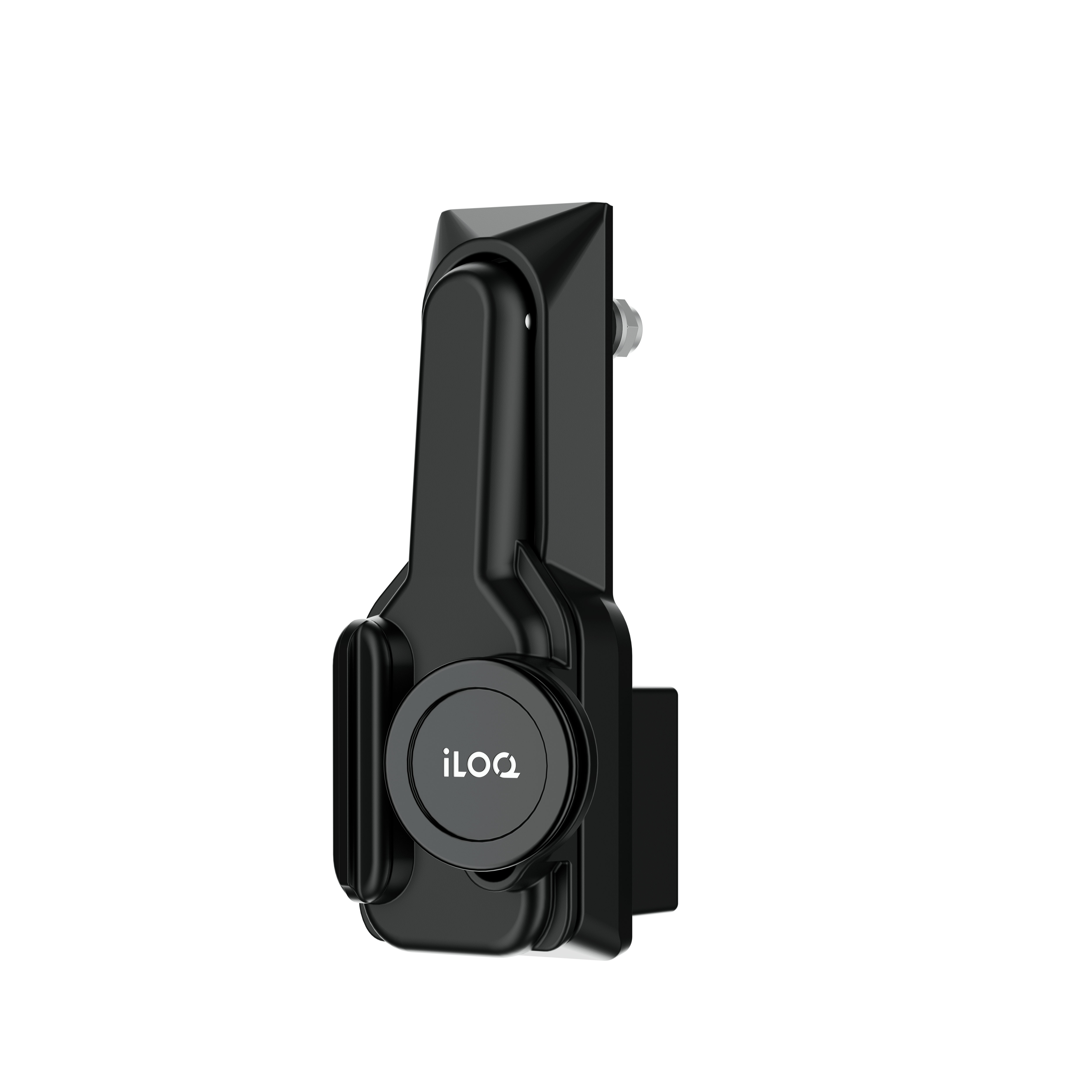

Dual-Key Cylinder Swinghandle RS 105 for iLOQ Cylinder D50S

Advantages

Dual-key cylinder swinghandle with pivotable operating lever.
Complies with security test according to DIN EN 1630 RC2. Only in combination with profile-cylinders according to DIN 18252.
Can be opened with either of the two key cylinders. Accepts 40mm and 45mm profile cylinders. When using the escutcheon, only a 45 mm cylinder can be used.
The handle can be locked without using a key.
Seismic-proof according to GR-63-CORE, Issue 4.
Vibration-proof according to DIN EN 61373.
IP65 according to DIN EN 60529.
Saw protection (on request).
Suitable for iLOQ cylinder D50S.511.SD.
RH/LH application.

Material

Swinghandle, cylinder dustcover and dish: zinc die, black
Cap: zinc die, zinc plated
Other surfaces on request!

Remarks

(S) Door-thickness 3mm - max. 6mm

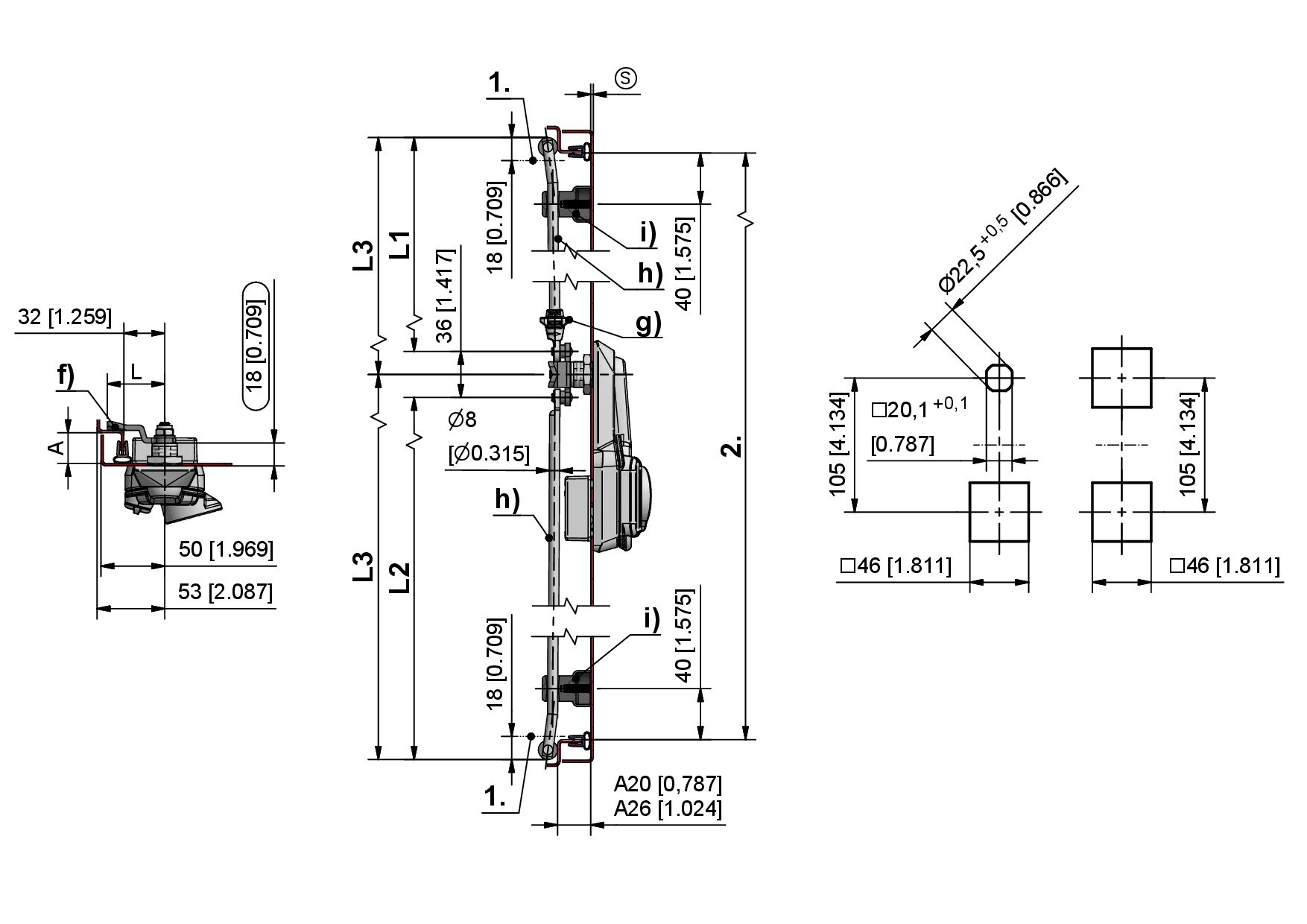

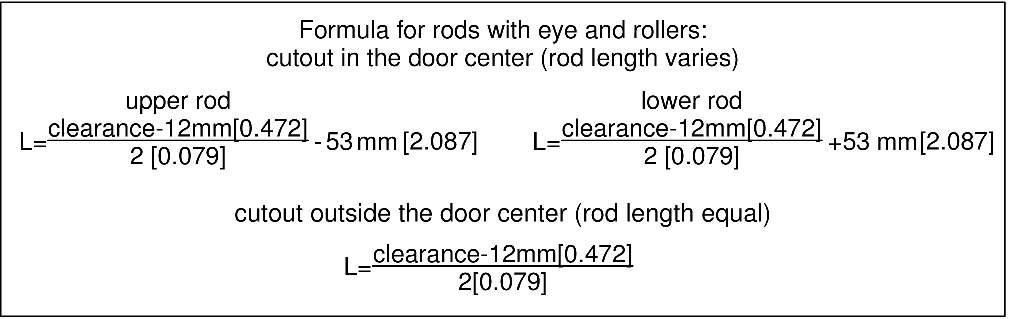

Drawings for rod calculation (see accessories):
1. stroke 18mm
2. clearance

To use the same door both RH and LH, 2 holes □46, symmetrical to door center are possible.
Profile half cylinders and their assembly must be ordered separately.
iLOQ cylinder is not included in the scope of delivery. Available at www.iloq.com
