[2-300.01]

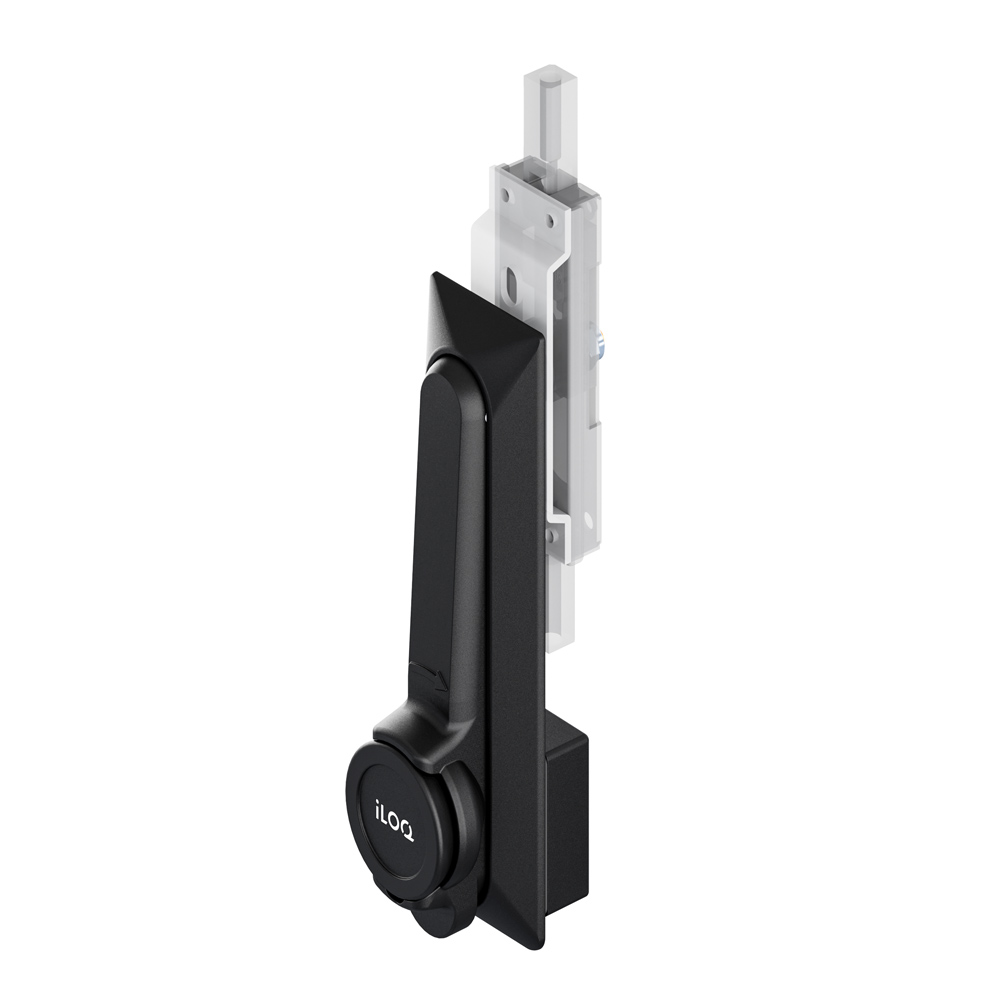

Swinghandle RS 130 f. Rod Latch f. iLOQ Half cylinder D50S

ICON_IP65
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_RUNDSTANGE
ICON_ILOQ_SCHWARZ
2_300_01
E_2-300_01
E_Adapter_Ansicht
2_300_01
E_2-300_01
E_Adapter_Ansicht

Advantages

  • Swinghandle for series 235 (130mm).
  • Suitable for iLOQ S50 half cylinder D50S.511.SD and D50S.531.SD.
  • IP65 according to DIN EN 60529.
  • RH / LH application.

Material

Swinghandle: PA, black
Dish and cap: PA, black

Remarks

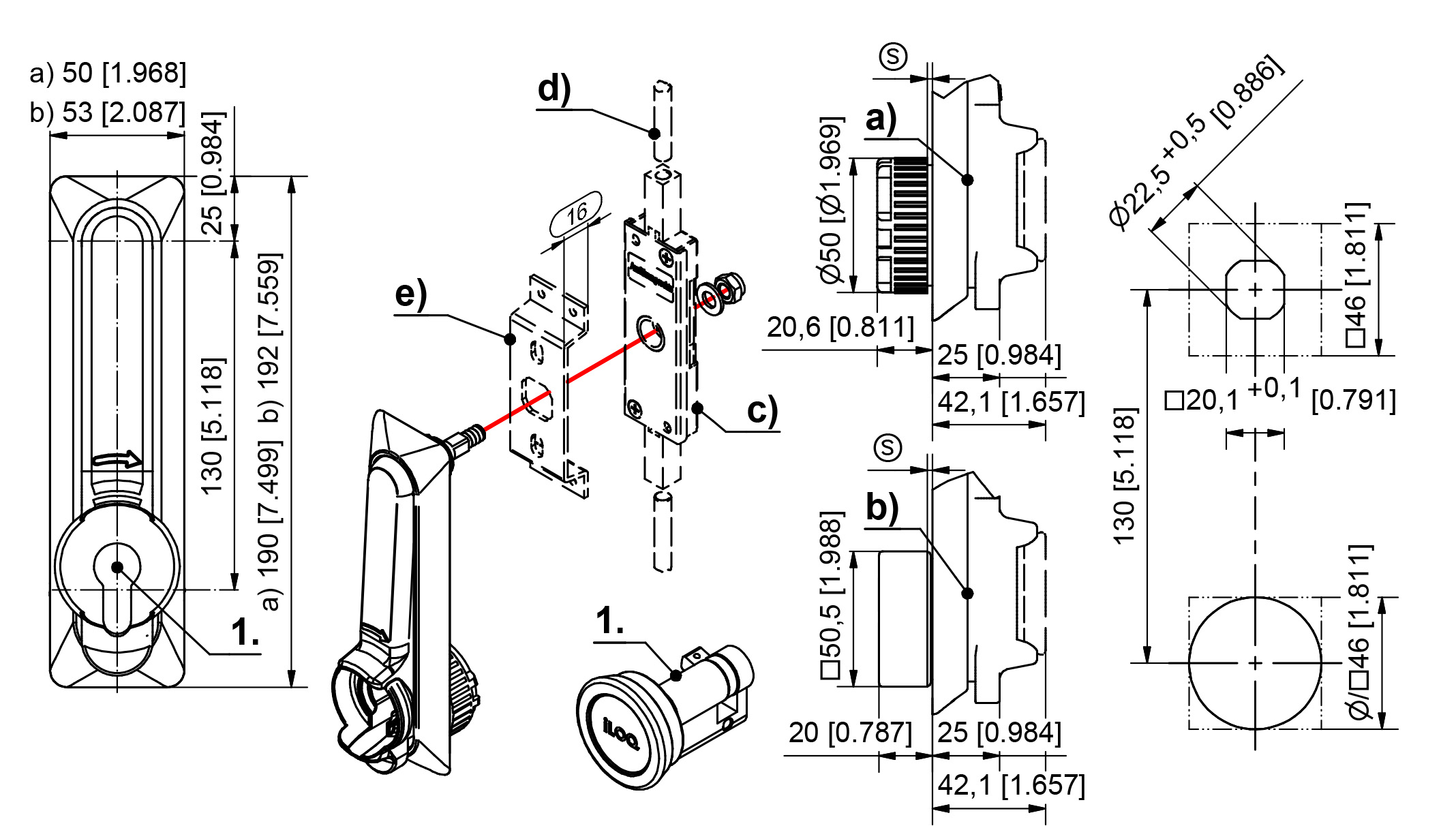

(S) Door-thickness max. 3mm

1. Cylinder iLOQ is not included in the scope of delivery. Available at www.iloq.com
2. Adapter □46
3. Adapter Ø46

Selected version

Product number 207-9155.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Internal cover: □46
Cutout: 130/□46
CAD model
Remove selection Product data sheet

Related Products

Specific accessories



Article no.
Name

d)
201-0801.00-01000
Round rod, M8 x 1000mm
Details
Name:
Round rod, M8 x 1000mm
Delivery Unit:
1 pc.
Open product in new tab
d)
201-1001.00-01000
Round rod, M10 x 1000mm
Details
Name:
Round rod, M10 x 1000mm
Delivery Unit:
1 pc.
Open product in new tab

Accessories



Article no.
Name

207-2701.03-00000
Adapter for cutout Ø46mm
Details
Name:
Adapter for cutout Ø46mm
Material:
PA
Surface:
black
Delivery Unit:
1 pc.
Open product in new tab
207-2804.00-00000
Gasket for adapter Ø46
Details
Name:
Gasket for adapter Ø46
Material:
inducon
Surface:
Delivery Unit:
1 pc.
Open product in new tab
207-2702.03-00000
Adapter for cutout □46mm
Details
Name:
Adapter for cutout □46mm
Material:
PA
Surface:
black
Delivery Unit:
1 pc.
Open product in new tab
207-2803.00-00000
Gasket for adapter □46mm
Details
Name:
Gasket for adapter □46mm
Material:
inducon
Surface:
Delivery Unit:
1 pc.
Open product in new tab
c)
1-410
2-Point Rod Latch RS
Open overview in new tab
c)
235-9009.00-00000
Rod latch 8mm RH
Details
Rod diameter Ø:
8 mm
Version:
RH version
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
c)
235-9010.00-00000
Rod latch 8mm LH
Details
Rod diameter Ø:
8 mm
Version:
LH version
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
c)
235-9011.00-00000
Rod latch 10mm RH
Details
Rod diameter Ø:
10 mm
Version:
RH version
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
c)
235-9012.00-00000
Rod latch 10mm LH
Details
Rod diameter Ø:
10 mm
Version:
LH version
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
e)
235-1002.00-00000
Lock support A26
Details
Name:
Lock support A26
Delivery Unit:
1 pc.
Open product in new tab
1-190
Rod Guides RS
Open overview in new tab
200-3623.51-00000
Rod guide, hight 32mm
Details
A:
20 mm
L:
24 mm
Height H:
32 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
200-3624.51-00000
Rod guide, hight 36mm
Details
A:
24 mm
L:
28 mm
Height H:
36 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
200-3625.51-00000
Rod guide, hight 38mm
Details
A:
26 mm
L:
30 mm
Height H:
38 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
200-3626.51-00000
Rod guide, hight 40mm
Details
A:
28 mm
L:
32 mm
Height H:
40 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
1-193
Rod Guide RS
Open overview in new tab
200-3616.54-00000
Rod guide, hight 35mm
Details
Height H:
35 mm
A = bending:
A24
L:
28 mm
Installation type:
tool-less
Delivery Unit:
1 pc.
Open product in new tab
200-3617.54-00000
Rod guide, hight 37mm
Details
Height H:
37 mm
A = bending:
A26
L:
30 mm
Installation type:
tool-less
Delivery Unit:
1 pc.
Open product in new tab
200-3618.54-00000
Rod guide, hight 39mm
Details
Height H:
39 mm
A = bending:
A28
L:
32 mm
Installation type:
tool-less
Delivery Unit:
1 pc.
Open product in new tab

Product Configuration

Selected version

Product number 207-9155.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Internal cover: □46
Cutout: 130/□46
